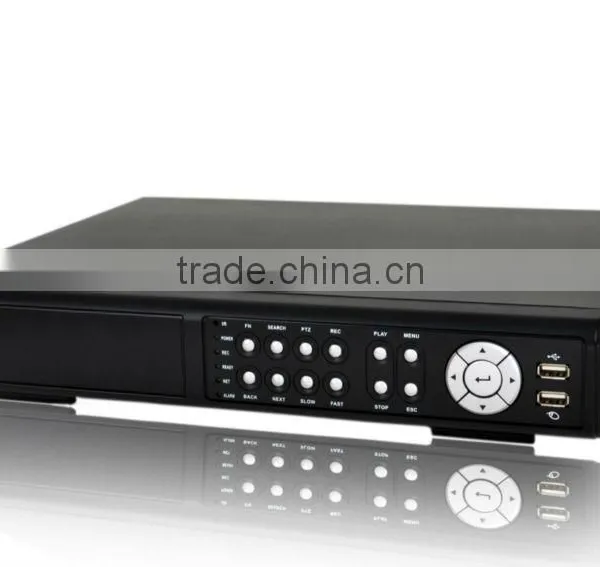

New Design AHD 1080P 16 Channel CCTV Standalone Camera H 264 DVR
US$ 40 - 50
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
HiSilicon
Model Number:
HS-MH-5516BE
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzheng
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
GM Chipset AHD Free Software DvrUS$ 53.00 - 53.00MOQ: 1 Piece -
3g and Wifi Support Five in One DVRUS$ 53.00 - 53.00MOQ: 1 Piece
-
Hot Sell 1080N 16CH DVR From ChinaUS$ 53.00 - 53.00MOQ: 1 Piece
-
GM8210 4 Series 16ch ONVIF 2.8 H.264 Digital Video RecorderUS$ 53.00 - 53.00MOQ: 1 Piece
-
Hot!!! Antai 16ch H.264 P2p Network Realtime Recording CCTV DVRUS$ 112 - 117MOQ: 50 Pieces
Place of Origin
Guangdong, China
Brand Name
HiSilicon
Model Number
HS-MH-5516BE
New Design AHD 1080P 16 Channel CCTV Standalone Camera H 264 DVR
Product Description
| SPECIFICATIONS | ||
| Model | Model | 16Channel H.264 AHD-H |
| HS-MH-5516BE (I,R,D,P,K,Z) | ||
| Board Model | PCBA-HS-MH-B3531-16 | |
| System | Main processor | Industrial grade embedded micro controller chip Huawei Hisilicon chipset Hi3531+Hi3532 |
| Operating system | Embedded LINUX operating system | |
| System resource | Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up. | |
| Display | Operation interface | 16 bit real color GUI interface support mouse operation |
| Multilingual Language | YES, 28 kinds of language | |
| Display screen | 1/4/8/9/16 screen (set pure local input mode for example, others are decided by channel mode) | |
| Video | Video Standard | PAL/NTSC(1080P) |
| Image encode | H.264(High Profile) | |
| Monitor quality | Monitoring:HDMI:HDMI(supporting 1920*1080, 1280*720,1440*900,1280*1024, 1024*768,800*600) | |
| Playback quality | AHD-H/AHD-M | |
| Encode capability | 16*1080P@15fps | |
| Decode capability | 8*1080P@15fps | |
| Multi-Input (ONVIF 2.3) |
Analogue:16*1080P(analogue);16*720P(analogue) | |
| Local+network:720P(AHD)*4+720P(network)*4; Network:720P*8+1080P*1/1080P*4/960H*20; | ||
| Audio | Audio compression | G.711A |
| Two-way Communication | YES | |
| Record and playback | Record mode | Manual, alarm, motion detection, timing |
| Local playback | 1~8ch( local input mode),Max 8ch playback | |
| Video search | Time, date, event, channel search | |
| Storage and back up | Space Usage | Video 720P:16~20G/day *channel,960H:10~20G/day*channel,Audio 691.2M/day *channel |
| Video storage | Local Hard Disk, Network | |
| Back up mode | Network backup, USB portable HDD, USB DVD-RW | |
| Interface | Video input | 16ch BNC(1.0Vp-p,75Ω) |
| Video output | 1ch VGA,1ch HDMI | |
| Loop Output | NO | |
| Audio input | 16ch RCA (200-2800mV,30KΩ) | |
| Audio output | 1ch RCA(200-3000mV,5KΩ) /1ch HDMI audio output | |
| Alarm input | 16ch | |
| Alarm output | 4ch | |
| Network port | 1*RJ45 10M/100M/1000M Base-T self-adaptive Ethernet port | |
| PTZ control | 1*RS485 port, Support more than 20 kinds protocols. | |
| USB port | Support USB 2.0 port | |
| HDD port | Accommodates 2 SATA HDDs (1 HDD capacity up to 6TB)(Can choose 4 hard drive) | |
| Wireless Port | 3G & WIFI ( Extented by USB) | |
| User | User level | Admin / User |
| User right | Users can set different permissions (How to use please refer to the manual book) | |
| Password protection | YES | |
| Remote | Remote Independent Operation | YES |
| Download records | YES | |
| Remote Event Trigger Recording | YES | |
| CMS | CMS Software for multiple DVR (up to 255 DVR simultaneously) | |
| Browser | Internet Explorer, Mozilla Firefox, Google Chrome, Safari | |
| Live Audio | YES | |
| On-line user | Max. 10 | |
| Mobile Surveillance | YES (Support iPad, iPhone, BlackBerry, Windows Mobile, Symbian & Android;iPad, iPhone, Andriod have remote playback function) | |
| Network Protocol | DHCP,PPPOE,NTP,Email,IP Authority,DDNS,FTP,Alarm Center,Wireless Dialing,UPNP,Wifi,RTSP,Cloud Service,PMS | |
| Alarm | Motion detection | 16 × 12 grids per channel;6 adjustable parameters for accurate detection(for local analog channel only) |
| Event Notification | FTP / E-Mail | |
| Pre-alarm Recording | YES | |
| Video loss | Video loss notification | |
| Buzzer | YES | |
| Other | IR remote controller | Remotely control DVR and PTZ cameras via IR transmitter (IR receiver built-in) |
| Remote control | YES | |
| Cooling fan | YES | |
| Tour | YES | |
| Power Source (±10%) | DC 12V / 5A(4HDD 12V/6A) | |
| Power Consumption (±10%) | <15W (without HDD) | |
| Operating Temperature | 0℃ ~ +55℃ | |
| Dimensions (mm) ** | 370mm(L)* 300mm(W)* 60mm(H) | |
| System Recovery | System auto recovery after power failure | |
| Package | Net Weight | 2.25kg±0.1kg |
| Carton Box Size | 410mm(L)* 124mm(W)* 352mm(H) | |
| Package Size | 640mm(L)* 425mm(W)* 370mm(H) | |
| Gross Weight | 16.0kg±0.5kg | |
Photo show
Company Information
Our Services
1.Offer OEM/ODM service:
1) Logo silk print service;
2) Nearly 50 kinds of styles provided for clients' choose;
2. After-sale Service:
1) All products will be tested 5 times before delivering.
2) All products will be checked 100% ok before packing.
3) All products will be offered one year's warranty, and technological supports for its lifelong.
If you'd like to learn more and get latest price pls add my skype: yolanda.wgf
Or send inquiry to my email: sales50 at , I will work for you sincerely !
Any inquiries will be replied in 24 hours
Professional manufacturer and welocome to Visit Our factory in Shenzhen City
OEM/ODM service offered, Welcome to Ask Any Question
Antai Looks Forward to Serving You !!!
FAQ
Q1: What is your MOQ for this product?
A1: We accept small and sample orders for our existing models, for OEM orders the MOQ is 1000 units.
Q2: How long is the warranty period?
A2: 24 months warranty is promised to all customers.
Q3: What is the delivery time?
A3: For sample order it takes 3-5 working days, for mass production it takes 7-15 working days.
Q4: What should I do if I have some problems to handle the DVR?
A4: You can contact our sales, send email to us and all emails wil be replied within 24 hours.
