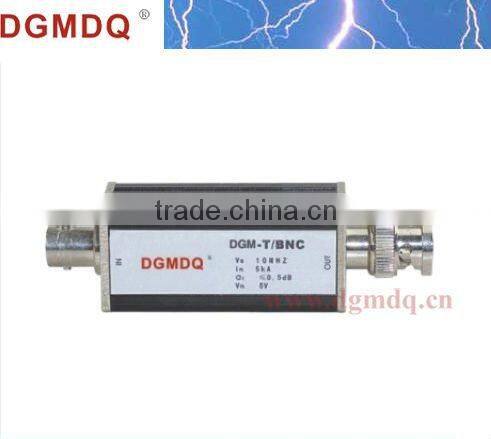

BNC/N Coaxial Lightning Protector

Specifications

BNC/N Coaxial Lightning Protector
Short response time(picosecond-level),low residual voltage,use two-stage surge protection

Key words : Coaxial Surge Arrestor,BNC/N Coaxial Lightning Protector,Surge Protective Device,Surge Protector(lightning arrester),SPD





Application Notes:



DGM-T series coaxial siganal lightning protection device adapted to closed-circuit television monitoring systems,security systems,satellite communication systems of monitor the video signal and soaxial signal transmission power of the computer network surge protection,the use of (BNC),(N) interface connector



Products Features:

• Two-stage surge protection,lightning discharge current for the first level,second level over-voltage clamp
• Short response time(picosecond-level),low residual voltage
• Through-flow capacity of 10KA(8/20 μs)

Technology parameter:



Type	DGM-T/BNC	DGM-T/N
Operating voltage	5V	5V
Continuous operating voltage	8~12V Cored wireGrounding 70~100V Hided outer leadGrounding wire
Nominal discharge current	5KA(8/20)
Max discharge current	10KA(8/20)
Limited voltage	≤80V Cored wireGrounding ≤550V Hided outer leadGrounding wire
Impulse protection voltage	≤660V
Max transfer speed	10Mbps
Insertion loss	≤0.5d B
Interface mode	K/KK/JJ/J
Operating enviroment	Temperature -25~+70 Relative humidity ≤95%
Outline size	≤90x25x25 mm
