Specifications

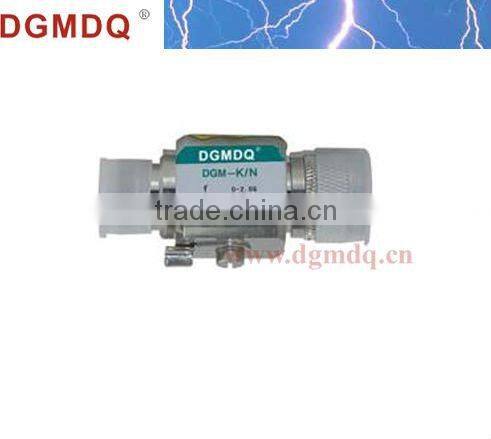

Signal Lightning ProtectorLarger throuth-flow capacity,lower residual voltage,re-use after a lightning strike
Lightning Signal Devices Antennas,Signal Protector,Surge Protective Device,Surge Protector(lightning arrester),SPD,Lightning Protector Signal Antennas,Signal Lightning Protector
Application Notes:
DGM-K series lightning signal devices antennas adapt to satellite TV tuner,satellite microwave signal receiver station ,mobile communication,base station antenna system to protect the receiving device avoid to lightning shocking over-voltage caused by feeder induction.
Products Features:
- Larger throuth-flow capacity,lower residual voltage,re-use after a lightning strike
- Low VSER,little insertion loss,high transmission rate
- More interface types and more reliable,no special maintenance
Technology parameter:
Type |
DGM-K/BNC |
DGM-F/TNC |
DGM-K/F |
DGM-K/SMA |
DGM-K/N |
Working frequency |
0~2.0G |
0~2.0G |
0~1.0G |
0~1.0G |
0~2.0G |
Charactristic impedance |
75Ω |
50Ω |
75Ω |
75Ω |
50Ω |
Nominal breakerover voltage(100V/S) |
65~90V |
||||
Nominal discharge current |
5KA(8/20) |
||||
Max discharge current |
10KA(8/20) |
||||
Limited voltage |
≤550V |
||||
Voltage standing-wave ratio |
≤1.2 |
||||
Insertion loss |
≤0.5d B |
||||
Interface form |
K/KK/JJ/J |
||||
Operation environment |
Temperature -25~+70 |
||||
Outline size |
∠59.2x25x25 mm |
||||
