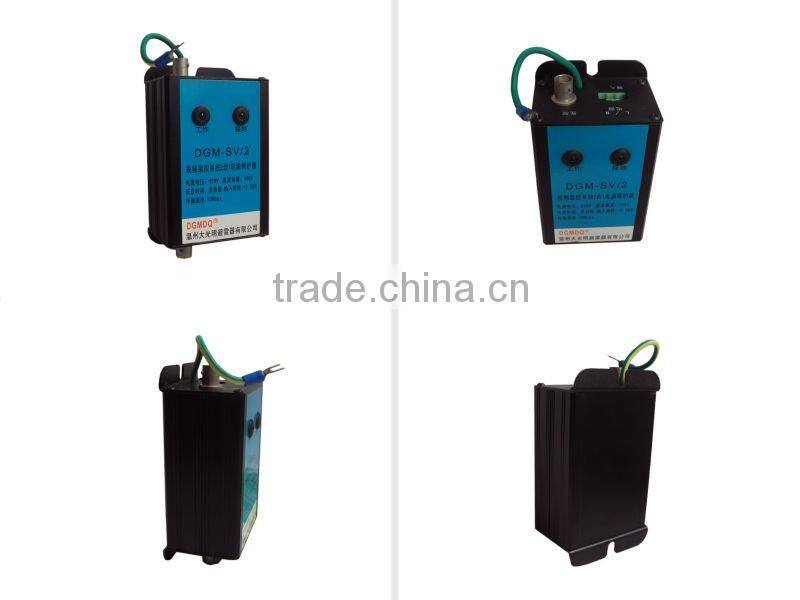

Vedio Monitoring Surge Protector/lightning Arrester
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
DGMDQ
Model Number:
DGM-SV/2
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Vedio Monitoring Surge Protector/lightning ArresterNegotiableMOQ: 1 Piece -
Telephone Surge Protecor/ Computer Networks Surge ProtectorNegotiableMOQ: 100 Pieces
-
BNC/N Coaxial Signal Surge ProtecorNegotiableMOQ: 100 Pieces
-
BNC/N Coaxial Signal Surge ProtecorNegotiableMOQ: 100 Pieces
-
N-Male/Female Antennas Surge Protector/lightning ProtectionNegotiableMOQ: 100 Pieces
Place of Origin
Zhejiang, China
Brand Name
DGMDQ
Model Number
DGM-SV/2
Specifications
Vedio Monitoring surge protector1.low-capacitance design,superior transmission perpermance
2.residual depression
Vedio Monitoring surge protector/lightning arrester
1,High quality surge suppression components,response fast.
2,Two-in-one Video Monitor Lighting Protector
Key words : Two-in-one Video Monitoring Lighting Protector,Signal Surge Arrester,Lightning Protector
Application Notes:
DGM-SV series of three-in-one video monitoring system of mine,mainly used for the video surveillance system,video signals,control 485 circuit which against the damage caused by lightning over-voltage sensor,power disturbing and electrostatic discharge
Products Features:
- Equipotential used to connect the design,installation convenience.
- High-quality surge suppression components,response fast.
- Low-capacitance design,superior transmission performance.
- Larger through-flow capacity,lower residual voltage.
DGM-SV/3 techhnology parameter
| Main items | Power protection parameter | Video protection parameter | |
| Working voltage (V) | 220 | 24 | 5 |
| Max continuous operating voltage (V) | 320 | 40 | 8 |
| Limited voltage (V) | 900 | 75 | 15 |
| Nominal discharge current (KA) | 10 | 10 | 5 |
| Max discharge current | 20 | 20 | 10 |
| Max transfer rate(Mbps) | - | - | 10 |
| Loading current | 10 | 5 | - |
| Insertion loss | - | - | less than 0.2 |
Also have the series of three-in-one video monitoring lightning protection
