Specifications
BNC/N Coaxial signal surge protecor1.two-stage surge protection
2.short respones time
3.capacity of 10KA (8/20us)

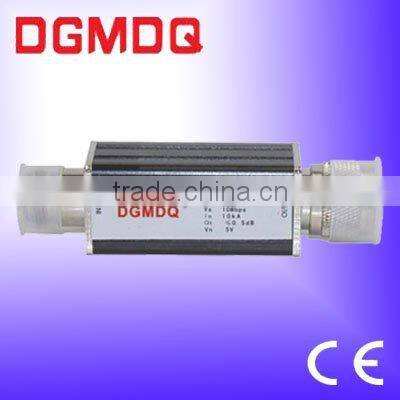

BNC/N Coaxial signal surge protecor
Key words : Coaxial Surge Protector,Coaxial Signal Lightning Protection Device,Surge Protective Device,Surge Protector(lightning arrester),SPD
Application Notes:
DGM-T series coaxial siganal lightning protection device adapted to Closed-circuit television monitoring systems,Security systems,Satellite communication systems of monitor the video signal and Coaxial signal transmission power of the computer network surge protection,the use of (BNC),(N) interface connector
Products Features:
- Two-stage surge protection,lightning discharge current for the first level,second level over-voltage clamp
- Short response time(picosecond-level),low residual voltage
- Through-flow capacity of 10KA(8/20 μs)
Technology parameter:
Type |
DGM-T/BNC |
DGM-T/N |
Operating voltage |
5V |
5V |
Continuous operating voltage |
8~12V Cored wireGrounding 70~100V Hided outer leadGrounding wire |
|
Nominal discharge current |
5KA(8/20) |
|
Max discharge current |
10KA(8/20) |
|
Limited voltage |
≤80V Cored wireGrounding ≤550V Hided outer leadGrounding wire |
|
Impulse protection voltage |
≤660V |
|
Max transfer speed |
10Mbps |
|
Insertion loss |
≤0.5d B |
|
Interface mode |
K/KK/JJ/J |
|
Operating enviroment |
Temperature -25~+70 Relative humidity ≤95% |
|
Outline size |
≤90x25x25 mm |
|
