Home > Products > High-Voltage Isolate Switch > HGW9-10KV,Isolate Switch

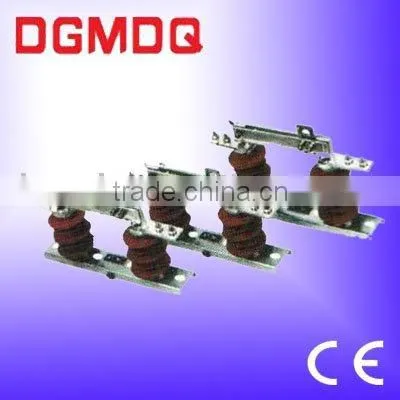

HGW9-10KV,Isolate Switch
- 3000 Piece / Pieces per Month
- Ningbo or Shanghai
- T/T Credit Card
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | DGMDQ | Model Number: | HGW9-10 |
Max. Current: | 630A | Max. Voltage: | 15KV |
Product Description
Specifications
1,Outdoor 6 ~ 10KV distribution lines,used for cut off and conversion circuits2,Isolate Switch,Disconnection Switch
Key words : Switch,Isolate Switch,High Voltage Isolate Switch and so on
- Rated voltage:10KV 15KV
- Rated current:200A 400A 630A
General description :
(H) GW9-10, 15 type outdoor high-voltage isolation switch (hereinafter referred to as isolation switch) is a single-stage AC current. Installed in outdoor 6 ~ 10KV distribution lines,used for there is no load voltage cut off and conversion circuits purposes.
The basic conditions of use isolation switch:
- Sea level height is not more than 2000 meters
- Surrounding temperature is not higher than +40 ° C, not lower than -30° C ,diurnal temperature range does not exceed 15° C
- 3,Wind speed is not more than 35 m / s
- Seismic intensity is not more than 8 degrees
- Installation places without frequent violent vibration
The main electrical performance:
Type Number | Rated voltage(KV) | Imax operating voltage(KV) | Rated current(A) | 2S Heat-stability current | Rated machine-stability current |
HGW9GW9-10/200 |
10 |
11.5 |
200 |
3.15 |
8 |
HGW9GW9-15/200 | |||||
HGW9GW9-10/400 |
10 |
11.5 |
400 |
.15 |
8 |
HGW9GW9-15/400 | |||||
HGW9GW9-10/630 |
10 |
11.5 |
630 |
3.15 |
8 |
HGW9GW9-15/630 |
