Isolation switch silicon rubber /33KV outdoor disconnect switches

Specifications

Isolation switch silicon rubber /33KV outdoor disconnect switches
1. metal oxide or porcelain
2. 33kv,1250A

Isolation switch silicon rubber /33KV outdoor disconnect switches

• Rated voltage:33KV -110KV
• Rated current:200A 400A 630A 1250A





General description :

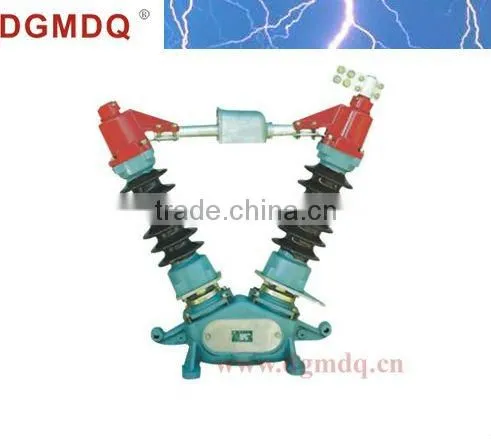

GW5 Series Outdoor AC isolation switch for the exchange of outdoor high-voltage electrical equipment 52Hz, rated voltage level has 40.5KV, 72.5KV and 126KV, for the HV voltage line is  opening and closing without load conditions, as well as being used for maintenance high voltage bus, circuit breakers and so on, also can be used to open or close a small capacitor or inductive current





The basic conditions of use isolation switch:



1. Altitude:≤3000m
2. Ambient air temp.:upper limited +40^oC,lower limited -25^oC
3. Eathquake intensity ≤8°
4. The ground have not fire,exposion danger,seriously nasty,chemical etch and serious shake





The main technology parameter:



Type number	Rated voltage(KV)	Rated current(A)	Peak withstand current(KA)		Short time withstand current(KA)		Grounding type
			D  1	D 2	D 1	D 2
GW5-40.5	40.5	630 1000 1250 1600 2000	50	80	20(4s)	31.5(4s)	Single Grounding(D1) Double Gounding(D2) No earth Grounding
GW5-72.5	72.5
GW5-126	126



Key words : Switch,Isolating Switch,33KV outdoor Isolating Switch/ disconnect switch / metal oxide/ porcelain and so on
