hydraulic tyre press / frame flat curing press / tire curing press
1. Vulcanizing Press description
Press machine types:
Column structure, frame structure, slabside structure, jaw structure
Pressure from 5 ton to 8000 tons
Heating plate Size from 100mm to 20000mm
Heating type: electric heating, oil heating, steam heating
Control type: manual operation or PLC Control+Touch screen
2.Technical parameters:

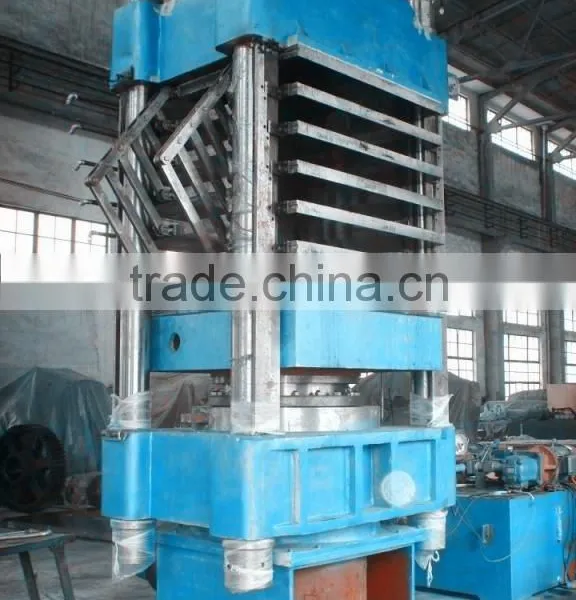

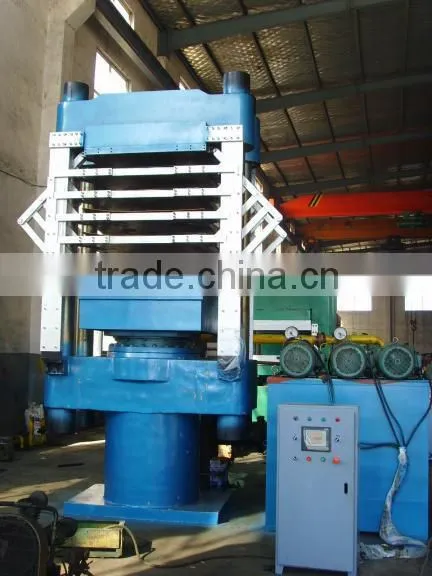

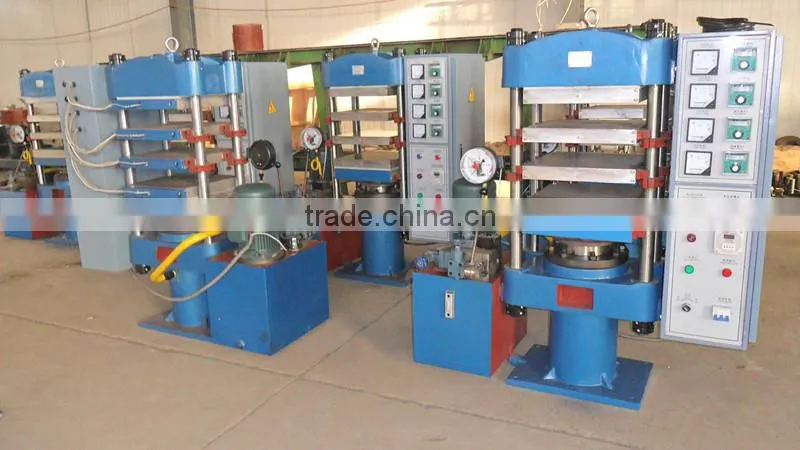

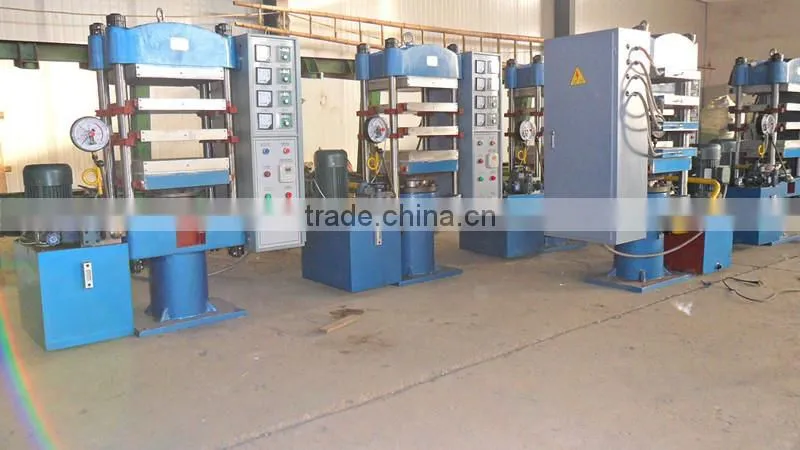

Four pillar (column) type vulcanizing press
Type |
XLB-DQ 400×400×2 |
XLB-DQ 400×400×2 |
XLB-DQ 400×400×2 |
XLB-DQ 450×450×2 |
XLB-DQ 450×450×2 |
XLB-DQ 600×600×2 |
XLB-DQ 600×600×2 |
XLB-DQ 600×600×2 |
XLB-DQ 750×850×2(4) |
Total pressure(MN) |
0.25 |
0.50 |
0.50 |
1.00 |
1.00 |
1.00 |
1.00 |
1.00 |
1.60 |
Plate size(mm) |
400×400 |
400×400 |
400×400 |
450×450 |
450×450 |
600×600 |
600×600 |
600×600 |
750×850 |
Plate clearance(mm) |
125 |
125 |
125 |
125 |
125 |
125 |
125 |
125 |
125 |
Working layer number |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2(4) |
Piston stroke(mm) |
250 |
250 |
250 |
250 |
250 |
250 |
250 |
250 |
250(500) |
Plate pressure(kg/cm*cm) |
20 |
31 |
31 |
49 |
49 |
28 |
28 |
28 |
25 |
Main motor power(KW) |
3 |
2.2 |
2.2 |
2.2 |
2.2 |
2.2 |
2.2 |
2.2 |
3 |
Overall dimension(L×W×H)(mm) |
1300×800×1500 |
2400×550×1500 |
2400×550×1500 |
1500×600×1500 |
2450×600×1550 |
1600×750×1550 |
2650×750×1550 |
1410×680×1750 |
1900×950×2028 |
Weight(kg) |
1150 |
1300 |
3200 |
2100 |
3600 |
2500 |
4600 |
3500 |
6500(7500) |

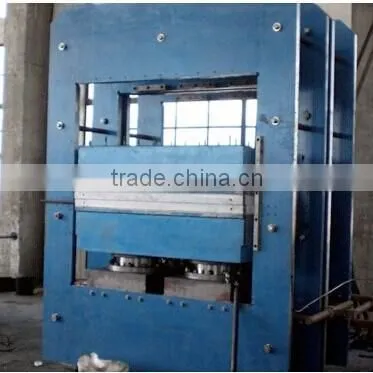

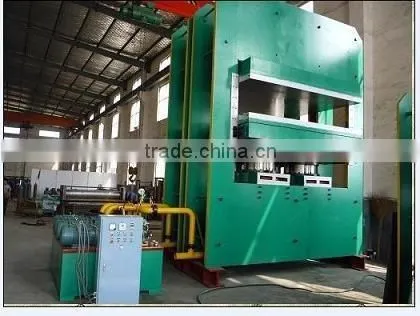

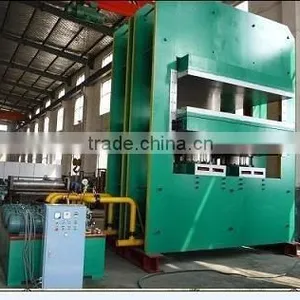

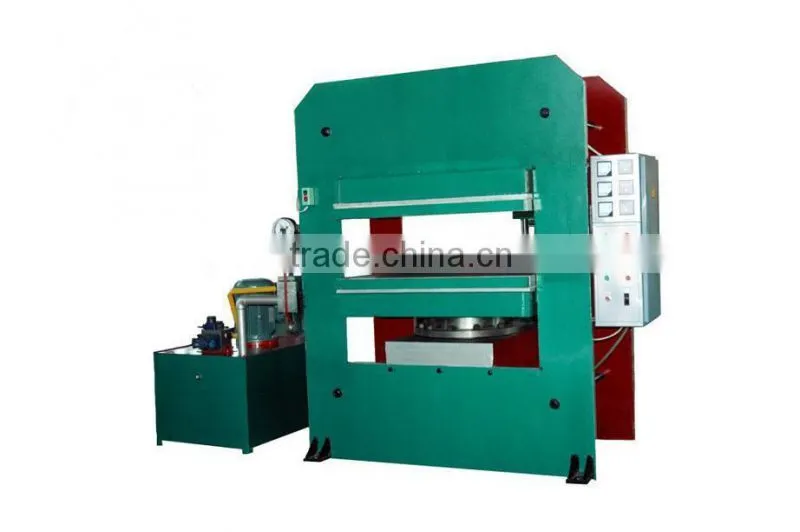

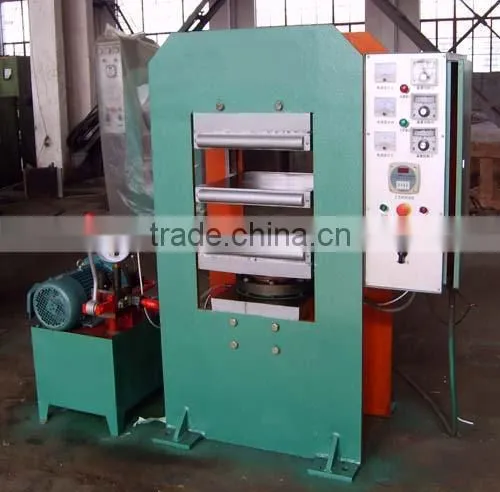

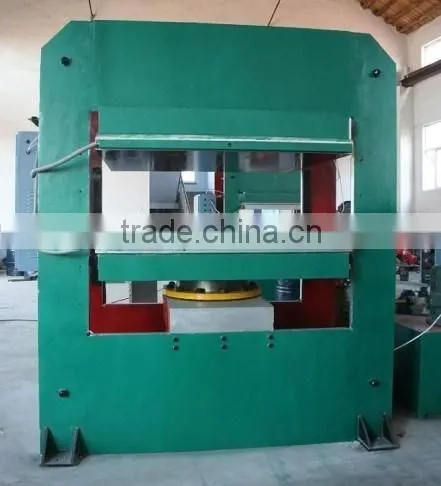

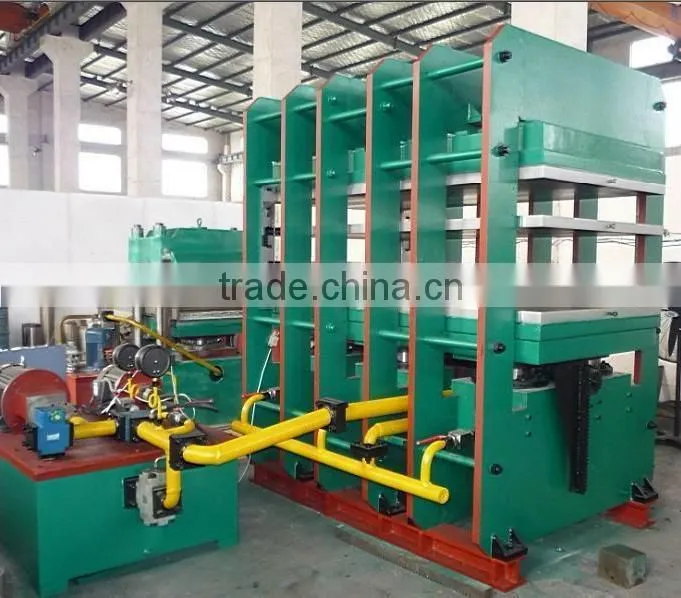

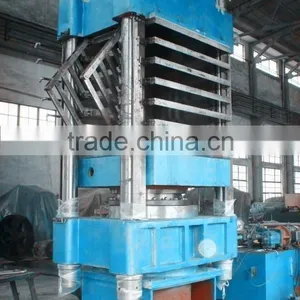

frame type vulcanizing press
Type |
XLB-DQ1200× 1200× 2 |
XLB-DQ1300× 2000× 1 |
XLB-Q1200× 2500× 1 |
XLB-Q1500× 2500× 1 |
XLB-Q2000× 3000× 1 |
XLB-Q1400× 5700× 1 |
Total pressure(MN) |
315t |
560t |
750t |
1000t |
1800t |
2800t |
Plate size(mm) |
1200× 1200 |
1300× 2000 |
1200× 2500 |
1500× 2500 |
2000× 3000 |
1400× 5700 |
Plate clearance(mm) |
200 |
400 |
400 |
400 |
400 |
400 |
Working layer number |
2 |
1 |
1 |
1 |
1 |
1 |
Piston stroke(mm) |
400 |
400 |
400 |
400 |
400 |
400 |
Plate pressure(MPa) |
2.2 |
2.15 |
2.5 |
2.66 |
3.0 |
3.5 |
Main motor power(KW) |
3 |
8 |
9.5 |
11 |
26 |
43.5 |
Overall dimension(L× W× H)(mm) |
1685× 1320× 2450 |
2000× 1860× 2500 |
2560× 1700× 2780 |
2810× 1550× 3325 |
2900× 3200× 2860 |
2400× 5800× 3600 |
Weight(kg) |
9500 |
17000 |
20000 |
24000 |
66000 |
110000 |
We can disign and manufacture all kinds of vulcanizing press, only please inform us your requirement, such as total pressure, hot plate size, working layer number etc. technical parameter.
PLC Control+Touch screen
