rubber curing machine
curing machine for tires
steam curing machine
1. Vulcanizing Press description
Press machine types:
Column structure, frame structure, slabside structure, jaw structure
Pressure from 5 ton to 8000 tons
Heating plate Size from 100mm to 20000mm
Heating type: electric heating, oil heating, steam heating
Control type: manual operation or PLC Control+Touch screen
about PLC function:
PLC controller and operator interface, and Schneider electric elements, have auto/manual selector switch, have auto. mould closing, mould opening, exhaust, auto pressure compensation, vulcanization timer, delay warning, etc.
2.Technical parameters:

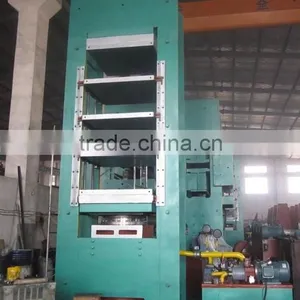

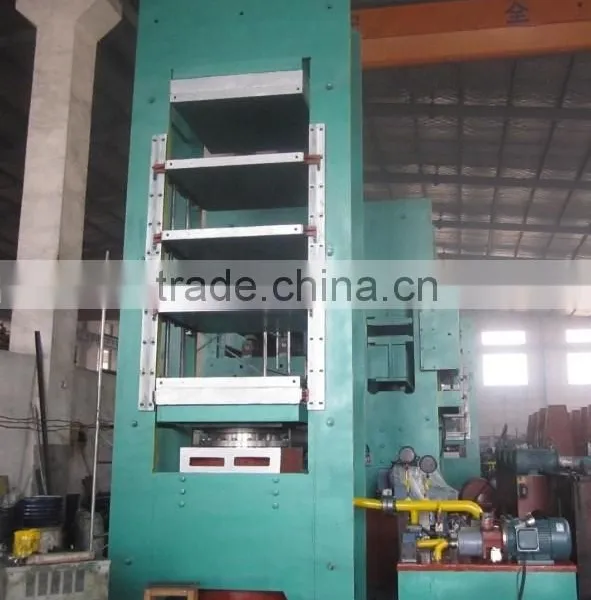

Four pillar (column) type vulcanizing press
Type |
XLB-DQ 400×400×2 |
XLB-DQ 400×400×2 |
XLB-DQ 400×400×2 |
XLB-DQ 450×450×2 |
XLB-DQ 450×450×2 |
XLB-DQ 600×600×2 |
XLB-DQ 600×600×2 |
XLB-DQ 600×600×2 |
XLB-DQ 750×850×2(4) |
Total pressure(MN) |
0.25 |
0.50 |
0.50 |
1.00 |
1.00 |
1.00 |
1.00 |
1.00 |
1.60 |
Plate size(mm) |
400×400 |
400×400 |
400×400 |
450×450 |
450×450 |
600×600 |
600×600 |
600×600 |
750×850 |
Plate clearance(mm) |
125 |
125 |
125 |
125 |
125 |
125 |
125 |
125 |
125 |
Working layer number |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2(4) |
Piston stroke(mm) |
250 |
250 |
250 |
250 |
250 |
250 |
250 |
250 |
250(500) |
Plate pressure(kg/cm*cm) |
20 |
31 |
31 |
49 |
49 |
28 |
28 |
28 |
25 |
Main motor power(KW) |
3 |
2.2 |
2.2 |
2.2 |
2.2 |
2.2 |
2.2 |
2.2 |
3 |
Overall dimension(L×W×H)(mm) |
1300×800×1500 |
2400×550×1500 |
2400×550×1500 |
1500×600×1500 |
2450×600×1550 |
1600×750×1550 |
2650×750×1550 |
1410×680×1750 |
1900×950×2028 |
Weight(kg) |
1150 |
1300 |
3200 |
2100 |
3600 |
2500 |
4600 |
3500 |
6500(7500) |

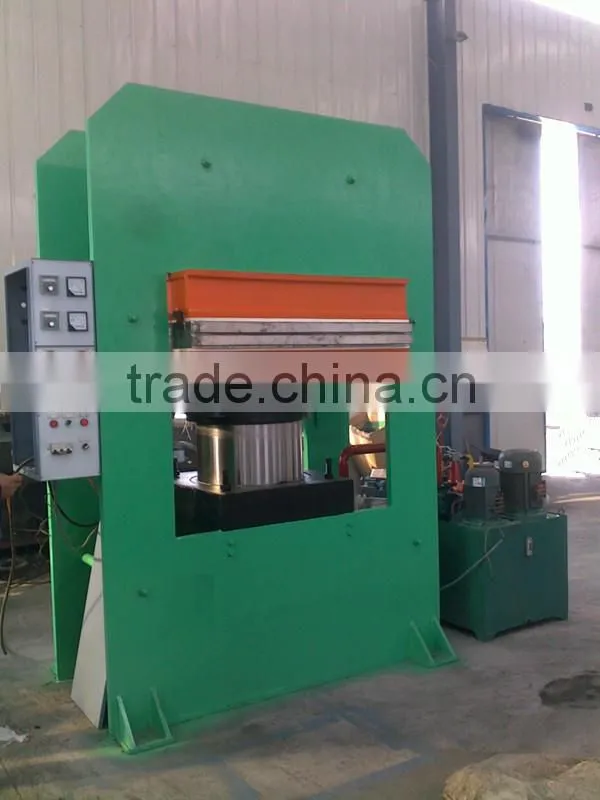

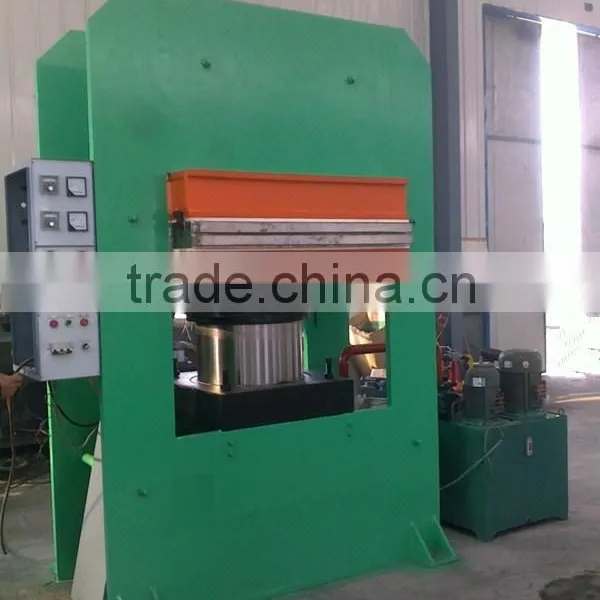

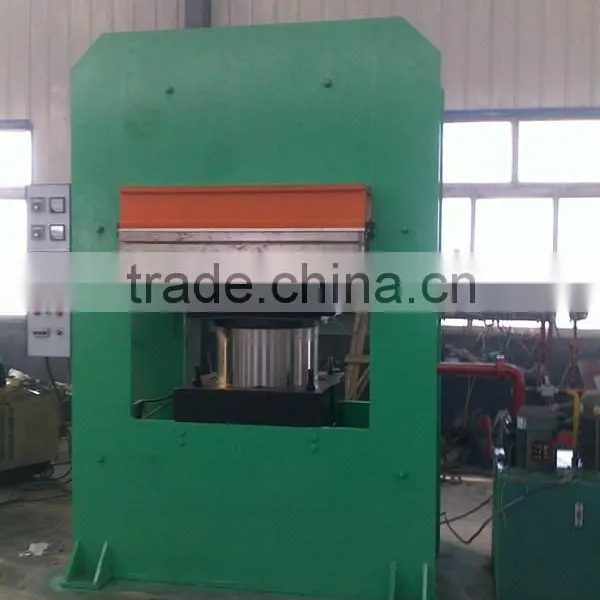

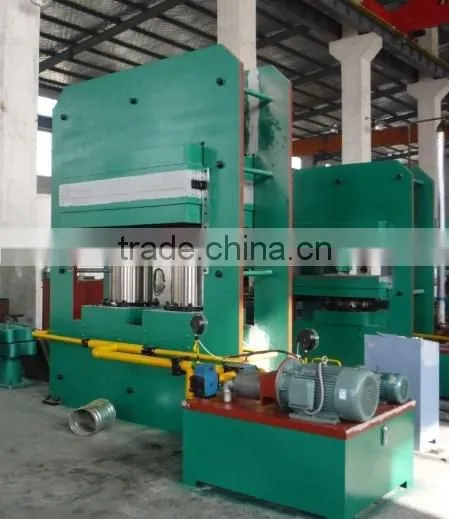

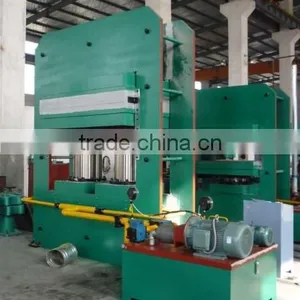

frame type vulcanizing press
Type |
XLB-DQ1200× 1200× 2 |
XLB-DQ1300× 2000× 1 |
XLB-Q1200× 2500× 1 |
XLB-Q1500× 2500× 1 |
XLB-Q2000× 3000× 1 |
XLB-Q1400× 5700× 1 |
Total pressure(MN) |
315t |
560t |
750t |
1000t |
1800t |
2800t |
Plate size(mm) |
1200× 1200 |
1300× 2000 |
1200× 2500 |
1500× 2500 |
2000× 3000 |
1400× 5700 |
Plate clearance(mm) |
200 |
400 |
400 |
400 |
400 |
400 |
Working layer number |
2 |
1 |
1 |
1 |
1 |
1 |
Piston stroke(mm) |
400 |
400 |
400 |
400 |
400 |
400 |
Plate pressure(MPa) |
2.2 |
2.15 |
2.5 |
2.66 |
3.0 |
3.5 |
Main motor power(KW) |
3 |
8 |
9.5 |
11 |
26 |
43.5 |
Overall dimension(L× W× H)(mm) |
1685× 1320× 2450 |
2000× 1860× 2500 |
2560× 1700× 2780 |
2810× 1550× 3325 |
2900× 3200× 2860 |
2400× 5800× 3600 |
Weight(kg) |
9500 |
17000 |
20000 |
24000 |
66000 |
110000 |
We can disign and manufacture all kinds of vulcanizing press, only please inform us your requirement, such as total pressure, hot plate size, working layer number etc. technical parameter.
If you are interested in our more products, please check our website:
https://img13.fr-trading.com
Thank you
