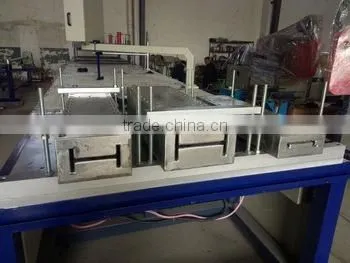

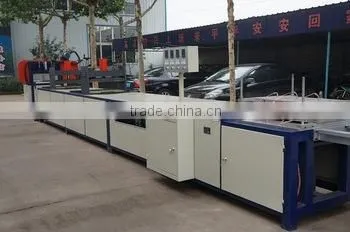

High Efficiency FRP Rebar Machine/FRP Pultrusion Production Line
The FRP rebar production line is the special pultrusion machine used to produce FRP rebar with different specifications from diameter 6mm to 30mm. It can finish distributing roving, impregnation, pre-molding, winding, heating and curing, unwinding, fix-length cutting and pile up automatically.
The production line can make 2pcs rebars at one time. so the production efficiency is high.
Working voltage |
380V/50HZ |
Air pressure |
0.4-0.6Mpa |
Total power |
20KW |
Center height |
1000mm |
Number of winding heads |
2 |
Central space between winding head |
411mm |
Winding rotation speed |
9-95rpm |
Winding diameter |
φ6-30mm |
Traction speed |
0.1-1 m/min |
Traction force |
40KN |
Clamping length |
1200mm |
Clamping width |
500mm |
Cutting range |
600x65mm(WxH) |
Cutting speed |
2850rpm |
Cutting journey |
700mm |
Length setting mode |
Limit switch |
Dimension |
20000x1850x1450mm |
|
|
Our Production Line:
We are Zhihong Group,Except the FRP Profile Pultrusion Machine, We can also design and manufacture all kinds of vulcanizing press, only please inform us your requirement, such as total pressure, hot plate size, working layer number etc. technical parameter.We have a group of professional engineers who engaged in this field for more than 15 Years in charge of designing,manufacturing, installing,testing. So we can guarantee that our machines will be running with good performance based on high quality. What is the most important, Complete after-sales service will enhance your satisfaction.
Why choose us?
We are ready to give them a turnkey solution, by designing the line according to their space, designing all electrical Installation, water installation, civil foundation, training their people and proving that they will get the targets for production according to the design.
The cost of the machinery they are paying is one off but the correct production design and machine configuration in order to get the production targets is the most important point. Even if somebody got the cheapest machine quotation, at the end of the day, what is count are the production quantity, quality and the durability of the machines so to cover the investment in the correct time.
A satisfies customer can bring you ten more customers but one disappointed customer can send away one hundred customers. Reputation in the market is the most important factor for keeping business healthy and in growing line.
