profile pultrusion line frp grating frp machine
- 1000 Set / Sets per Month
- qingdao port
Product Details
Place of Origin: | Shandong, China | Brand Name: | ZhiHong | Model Number: | 002 |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
FRP Fiber Glass Profile Pultrusion Line FRP Grating FRP Machine
Introduction |
Hydraulic type pultrusion machine is controlled by PLC, which adopts hydraulic pressure type to-and-fro as traction force with pneumatic length-fixing cutting. The machine can produce various FRP(including Glass fiber and Basalt fiber) Pultrusion Profiles such as square tubes, rectangular tubes, round tubes, angles, I-shapes, channel, rod, and rod fiberglass pultruded profile . The line consists of roving racks, resin bath, mould calibrating table, to-and-fro traction machine, cutting saw, racks for finished products and control system.
Equipment characteristic: |
1. The machine adopts auto PLC controlling with stable performance and high automation.
2. The machine provides high precision temperature control system. The measurement and control of temperature is accurate with tolerance less than 1℃.
3. the machine uses piston pump with low noise and high system pressure. The motor is low power and save energy.
4. The hydraulic cylinder adopts Germany sealing components with good sealing property and without oil leaking or impregnating.
5. Temperature alarm device, the temperature of hydraulic system is under strict control.
6. we can design various shape moulds according to customer’s requirements.
7.The 20T widening pultrusion line can make profiles max.780x240mm(WXH)
More informations will be offered you when you contact us. Looking forward to hearing from you.
Traction machine-20T: |
Max range of clamping space: | 780mm (W) x 240mm(H) |
Length of up and down clamping plate: | 400mm |
Max traction force: | 200KN |
Traction speed: | 0.1-1.0m/min |
Max clamping force of traction heads: | 200KN |
Max traction to-and-fro journey: | 500mm |
Clamping journey: | 100mm |
Traction cylinder: | HSG D125X500 |
Clamping cylinder: | HSG D125X100 |
Oil pump power: | 380V/50HZ 2x3KW |
Circulating cooling water pump: | 220V/50HZ 1.5KW |
Dimension: | ≈4800mm(L) x1150mm(W) x1750mm(H) |

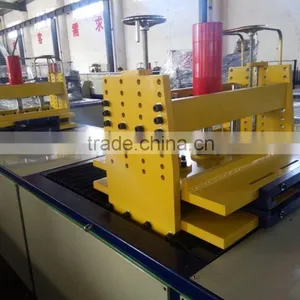

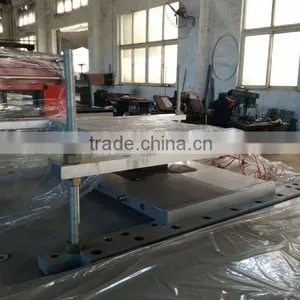

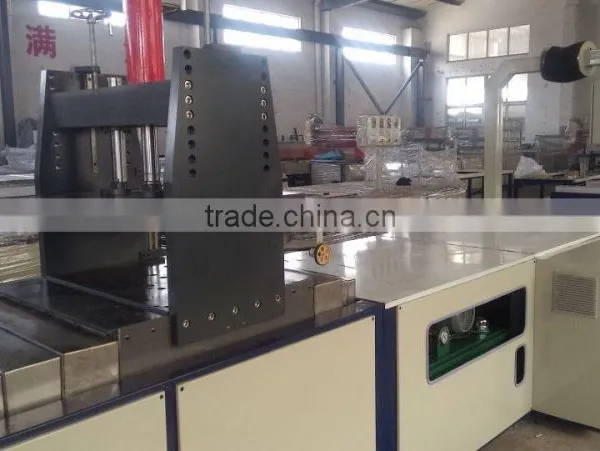

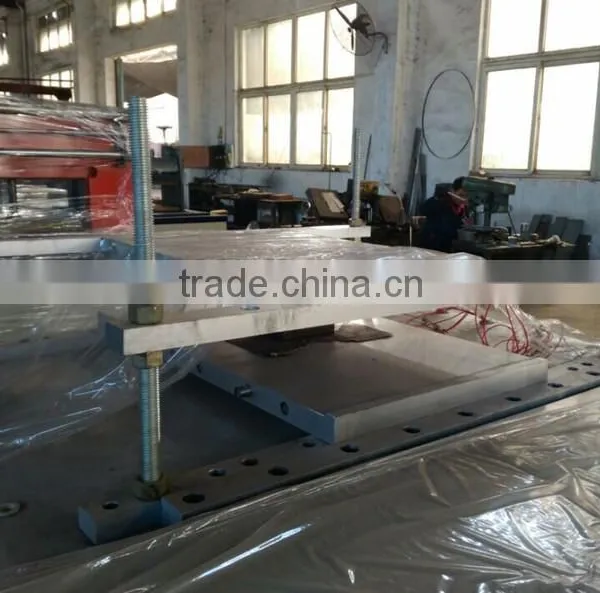

Details Show Of Our FRP Profile Pultrusion Machine |
A Little Tip:
We are Zhihong Group,Except the FRP Profile Pultrusion Machine, We can also design and manufacture all kinds of vulcanizing press, only please inform us your requirement, such as total pressure, hot plate size, working layer number etc. technical parameter.We have a group of professional engineers who engaged in this field for more than 15 Years in charge of designing,manufacturing, installing,testing. So we can guarantee that our machines will be running with good performance based on high quality. Good after-sales service will be satificated with you.
