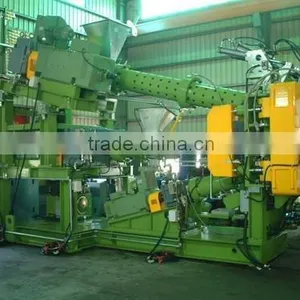

Help CenterTire Rubber Compound Extruder Machine
Related Products
-
Pin Barrel Cold Feed Twin Screw ExtruderUS$ 50,000 - 500,000MOQ: 1 Set -
Tire Retreading Extruder Double Screw BarrelUS$ 50,000 - 500,000MOQ: 1 Set
-
Twin Screw ExtruderUS$ 50,000 - 500,000MOQ: 1 Set
-
Tire Compound Double Screw ExtruderUS$ 50,000 - 500,000MOQ: 1 Set
-
Tire Tread Twin Screw ExtruderUS$ 50,000 - 500,000MOQ: 1 Set
tire compound extruder
rubber tyre remodeling machine
rubber compound mixing machine
Usage:
The set is used for the compound extrusion of tire tread.
Structural features:
- The machine adopts compound technology to make the tire tread precise size and compact structure.
- The series machines adopt introduced technologies and equipments and select the domestic ancillaries and some imported ancillaries.
- The set is supplied in two types, dual cooling and one-cooling-one-heating. It’s also equipped with a reducer with hard-tooth gears, an automatically hydraulic tread head and a temperature pressure measuring device.
- The temperature of each part is controlled sectionally by intelligent temperature control device.
- The machine adopts DC and AC motor drive.
- We can design and manufacture multi-extruders with any configuration according to customer’s requirement.
Technical parameters:
Model: XJF-200Cx150C
Specification: XJD-200x16D/XJD-150x16D
Screw Dia: 200/150mm
L/D: 16D/16D
Max.rotational speed of screw: 33/43 r/min
Hopper opening: 260x150/200x120mm
Rows of pin: 10/10
Pin quantities of each row: 10/8
Motor model: Z4-280-32/Z4-250-41
Power: 315/220 KW
Hot water culation zone: 9
Heating power of hot water circulation: 128KW
Max.output: 2600/1500kg/h
Overall dimension: 6250x5800x4400mm
Weight: 40ton
ItemSpec |
HF250X4.5D HF200X4.5D |
HF250X8D HJD150X16D |
HF200X8D XJD150X16D |
XJD250X16D XJD200X16D |
XJD200X16D XJD150X16D |
XJD150X16D XJD120X14D |
XJD120X14D XJD90X14D |
Screw Dia |
250/200 |
250/150 |
200/150 |
250/200 |
200/150 |
150/120 |
120/90 |
L/D |
4.5/4.5 |
8/16 |
8/16 |
16/16 |
16/16 |
16/14 |
14/14 |
Max.Screw Speed |
57.6/56.6 |
40/40 |
50/30 |
26/33 |
33/43 |
43/50 |
50/60 |
Hopper Opening |
280X205 230X240 |
365X300 200X165 |
365X300 200X165 |
340X208 260X210 |
260X210 200X165 |
200X165 160X110 |
160X110 120X80 |
Row Quantity of pin |
- |
10 |
10 |
12/12 |
12/10 |
10/10 |
10/8 |
Pin Quantity of Each Row |
- |
8 |
8 |
12/10 |
10/8 |
8/6 |
6/6 |
Model of Motor |
Z4-250-31 Z4-250-11 |
Z4-250-41 Z4-250-41 |
Z4-250-12 Z4-250-41 |
Z4-250-12 Z4-250-32 |
Z4-250-32 Z4-250-41 |
Z4-250-41 Z4-250-11 |
Z4-250-11 Z4-250-41 |
Power |
132/110KW |
220/220KW |
160/220KW |
450/315KW |
315/220KW |
220/110KW |
110/55KW |
Zone of Hot Water Circulating |
- |
9 |
7 |
9 |
9 |
8 |
7 |
|
Total Power for Hot Water Heating |
- |
144 |
128 |
152 |
128 |
92 |
84 |
Overall dimensions |
4836X2150X1915 |
6650X8400X4200 |
6971X7116X3640 |
8750X3520X4800 |
6250X5800X4400 |
5100X4600X3500 |
4200X2500X2800 |
Weight |
19.5T |
33T |
32T |
53T |
40T |
30T |
20T |
Capacity |
3500/1800Kg/h |
3500/1500Kg/h |
2600/1800Kg/h |
3000/2100Kg/h |
2600/1500Kg/h |
1500/1000Kg/h |
1000/360Kg/h |

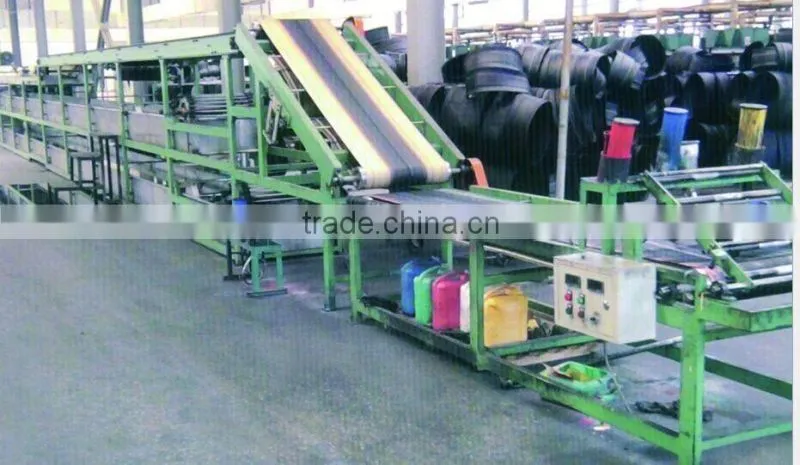

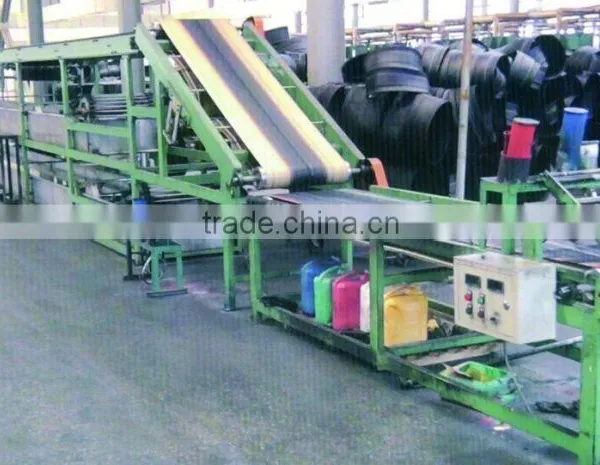

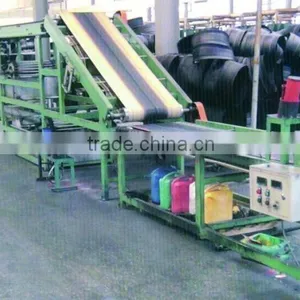

Tire tread cooling conveyor production line as follows
If you are interested in our more products, please check our website
https://img13.fr-trading.com
Trademanager: zhihong741031
Skype:bizmachine1
Tel: 86-532-85167976
Thank you
