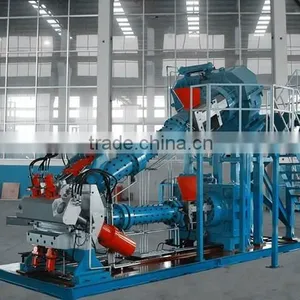

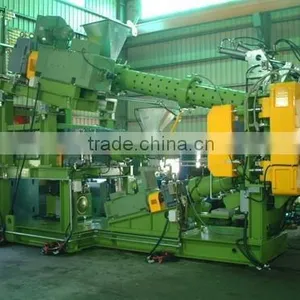

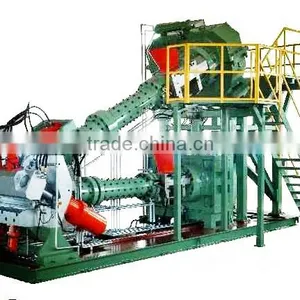

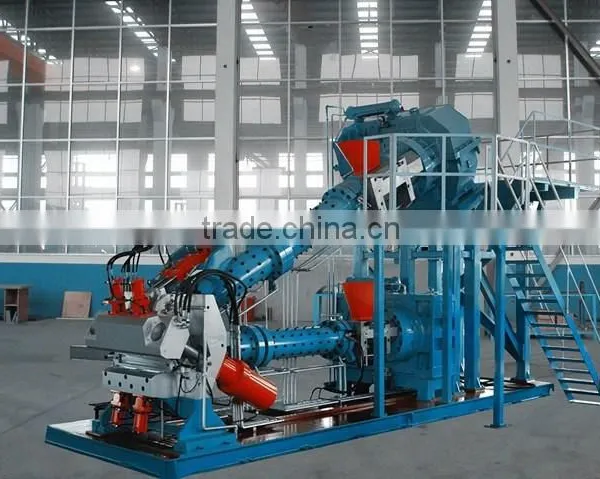

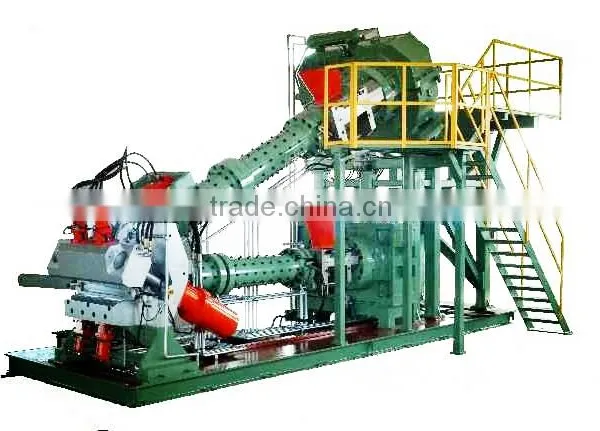

Pin Barrel Cold Feed Twin Screw Extruder
US$ 50,000 - 500,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
Zhihong
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Tire Retreading Extruder Double Screw BarrelUS$ 50,000 - 500,000MOQ: 1 Set -
Twin Screw ExtruderUS$ 50,000 - 500,000MOQ: 1 Set
-
Tire Compound Double Screw ExtruderUS$ 50,000 - 500,000MOQ: 1 Set
-
Tire Tread Twin Screw ExtruderUS$ 50,000 - 500,000MOQ: 1 Set
-
Double Screw Composite ExtruderUS$ 50,000 - 500,000MOQ: 1 Set
Condition
New
Place of Origin
Shandong, China
Brand Name
Zhihong
Model Number
XJD-200x16D/XJD-150x16D
Voltage
220V-460V
Power(W)
315/220kw
Dimension(L*W*H)
6250x5800x4400mm
Weight
36500kg
Certification
ISO9001 CE
Warranty
12 months
After-sales Service Provided
Engineers available to service machinery overseas
pin barrel cold feed twin screw extruder
double screw tire tread extruder
twin screw compound extruder
Usage:
The set is used for the compound extrusion of tire tread.
Structural features:
- The machine adopts compound technology to make the tire tread precise size and compact structure.
- The series machines adopt introduced technologies and equipments and select the domestic ancillaries and some imported ancillaries.
- The set is supplied in two types, dual cooling and one-cooling-one-heating. It’s also equipped with a reducer with hard-tooth gears, an automatically hydraulic tread head and a temperature pressure measuring device.
- The temperature of each part is controlled sectionally by intelligent temperature control device.
- The machine adopts DC and AC motor drive.
- We can design and manufacture multi-extruders with any configuration according to customer’s requirement.
Technical parameters:
Model: XJD-200x16D/XJD-150x16D
Screw Dia: 200/150mm
L/D: 16D/16D
Max.rotational speed of screw: 33/43 r/min
Hopper opening: 260x150/200x120mm
Rows of pin: 10/10
Pin quantities of each row: 10/8
Motor model: Z4-280-32/Z4-250-41
Power: 315/220 KW
Hot water culation zone: 9
Heating power of hot water circulation: 125KW
Max.output: 2600/1500kg/h
Overall dimension: 6250x5800x4400mm
Weight: 36.5ton
We can manufacture various kinds of model according to customer's actual request.
