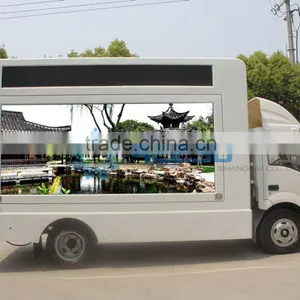

2013 Outdoor Mobile Billboard LED Advertising Truck YES-V6
1. It uses lightweight truck ;
2. It could play multi-media files at any time;
3. With generator inside;
Technical Parameters:
Model |
YES-V6 |
||||||||||
Chassis | |||||||||||
Brand |
Brilliance Jinbei |
External dimension |
5459mm×1900mm×3200mm |
||||||||
Power type |
CA4DC2-10E4 |
Curb weight |
1959KG |
||||||||
Emission standard |
China IV |
Gross mass |
4450KG |
||||||||
Maximum capacity |
Three people |
Wheel base |
3350mm |
||||||||
Extreme super silent generator set | |||||||||||
External dimension |
510mm×900mm×1060mm |
Power |
7.5KW |
||||||||
Power type |
Kipor |
Number of cylinders |
Water-cooled inline 3-cylinder |
||||||||
Air displacement |
1.995L |
Bore x Stroke |
84mm x 90mm |
||||||||
LED Full Color Display | |||||||||||
LED Screen size (P10) |
3840mm×1920mm |
Module Size |
160mm(W) ×160mm(H) |
||||||||
Chip |
R: Guanglei,G,B:Silan |
Pixel pitch |
10 mm |
||||||||
Brightness |
≥6500cd/ sqm |
Max power consumption |
1000 W/m² |
||||||||
Average power consumption |
500W/sqm |
Life span |
100,000 hours |
||||||||
LED bar screen | |||||||||||
External dimension |
3840mm×480mm |
Pixel pitch |
10 mm |
||||||||
Tube core |
Guanglei(R) |
Module resolution |
32pixel(W) ×16pixel(H) |
||||||||
Scrolling display | |||||||||||
Display size |
3250mm×1550mm |
Roller diameter |
80 mm |
||||||||
Motor power |
≥80W |
Control mode |
Intelligent remote control |
||||||||
Power supply | |||||||||||
Input voltage |
three-phase five-wire 380V |
Output voltage |
220V |
||||||||
Electrical current |
50A |
Power consumption |
average:0.5wh/m² |
||||||||
Multi-media control system | |||||||||||
Industrial PC |
processor:dual core CPU,display card:512,hard disk:320G, CD-ROM:DVD,storage card:2G |
||||||||||
Monitor |
15-inch Industrial Display |
Power amplifier |
unilateral output power :200W |
||||||||
Speakers |
Max power consumption:200W |
Control system of LED screen |
Linsn/ZHOGNQING |
||||||||
Outer frame and inner decoration | |||||||||||
Cold rolled metal plate of Outer box |
1.5mm |
Surface car baking varnish |
Polar White |
||||||||
Inner decoration |
Fire Retardant Board |
Waterproof processing |
Vehicle plastic irrigation processing |
||||||||
Optional Configuration | |||||||||||
LED screen |
option: P7.62 LED full color screen |
Air-condition |
Option:Vehicle air-conditioner |
||||||||
Electric control system |
option: Touch type wireless remote control |
Video system center |
Option: 1 set Video Processor |
||||||||
|
|||||||||||
Successful Case
