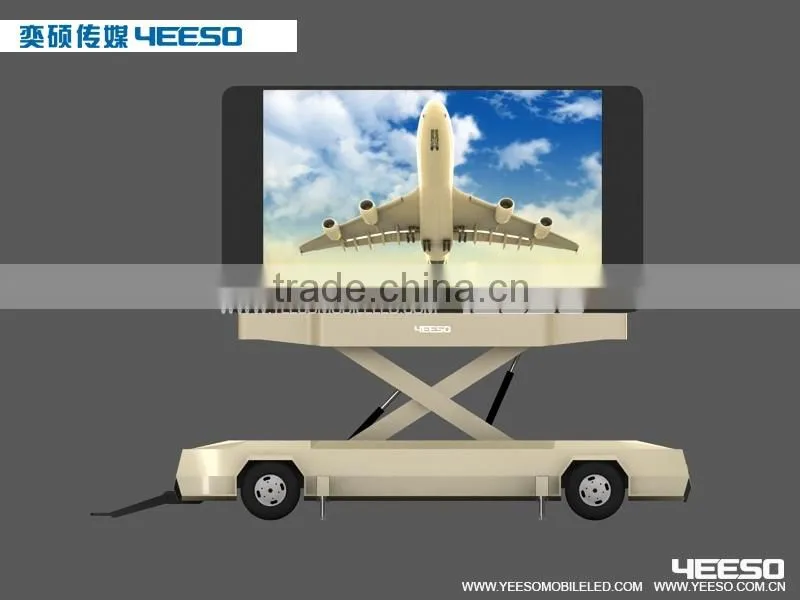

YEESO T12 Outdoor Mobile LED Advertising Trailer
1. A stylish classic of mobile LED advertising vehicles! The outlook adopts a chassis of Lamborghini design which carries a LED display in IPhone shape to look luxury and fashionable. Its fashionable outlook and perfect functions have achieved a genuinely perfect fusion of art and mechanics and it will surely overturn your perception of traditional mobile LED advertising vehicles!
2. High definition outdoor LED screen size is optional, even more than 50sqm is available; also the pixel pitch of LED screen is optional as customer’s requirement. Besides, the generator and the video processor is also in the list of optional components.

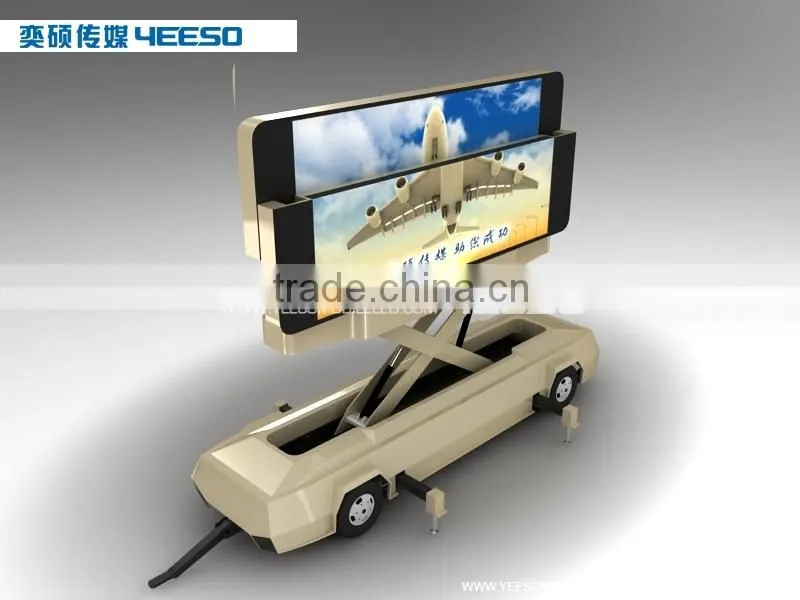

3. The Led Screen can be folded in the middle to reduce the height from ground, thus it will be much safer and easier when you move or transport it.

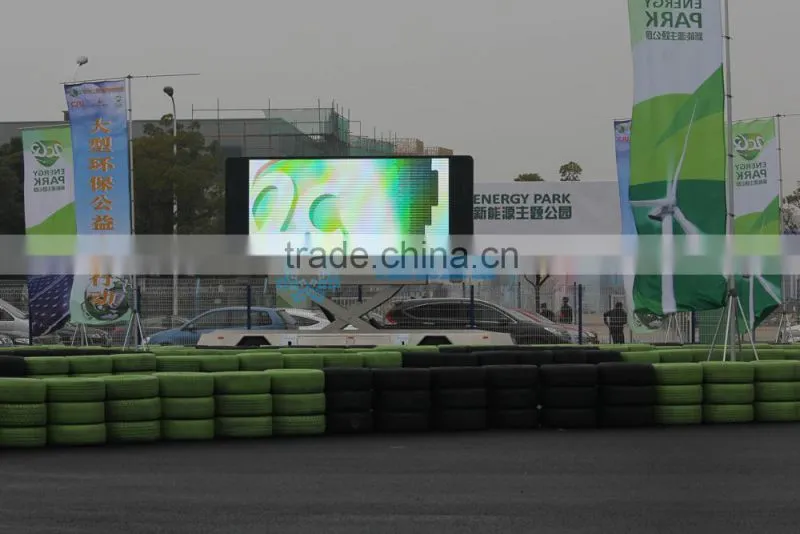

4. Applications of YES-T12 involving real time broadcasting of sports events; exhibitions; advertising in business district, square or any other proper site; information releasing in tourist attraction or park, etc
YEESO T12 Outdoor Mobile LED Advertising Trailer
Overall Description | |||
Chassis Brand |
YEESO |
External Dimension |
6800mm x 1920mm x 2350mm |
Tire |
650 rubber tire |
Gross Mass |
4750kg |
Lifting and Supporting System | |||
Hydraulic Lift Platform |
Lifting type: scissor; Platform: 3200mm x 750mm x 40mm |
Lifting Height |
2000mm |
Hydraulic Folding System |
Slider type folding system |
Loading bear |
5T |
Supporting System |
Leading screw supporting legs, Lifting height: 300mm, each afford 5T |
|
° |
LED Display System | |||
LED Screen Size |
4800mm x 2400mm |
Module Size |
160mm(W) x 160mm(H) |
Chip |
R,G,B: EPISTAR |
Pixel Pitch |
10mm |
Brightness |
≥6500cd/ m² |
Life Span |
10,000.00h |
Average Power Consumption |
500W/ m² |
Max Power Consumption |
1200W/ m² |
Outer Power Supply | |||
Input Voltage |
AV380 |
Output Voltage |
AC220V |
Electrical Current |
50A |
Power Consumption |
Average: 0.5wh/ m² |
Multi-media Control System | |||
Industrial PC |
Processor: Dual core CPU, Display card: 1G, Hard disk: 500G, CD-ROM: DVD, Internal storage: 2G |
Monitor |
KVM 15-inch LCD display |
Power Amplifier |
Unilateral output power: 200W |
Speaker |
Max power: 200W |
Control System of LED Screen |
LINSN |
|
|
YEESO T12 Outdoor Mobile LED Advertising Trailer
