5~550ton Two Girder EOT Crane

5~550ton Two Girder EOT Crane thumbnail-1
5~550ton Two Girder EOT Crane photo-1
US$ 8,000 - 500,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Warehouse/workshop/factory, etc
Rated Loading Capacity:
5~550t
Contact Supplier Request Quote Chat Now
Xinxiang Yueda Crane Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Warehouse/workshop/factory, etc
Rated Loading Capacity 5~550t
Rated Lifting Moment 50~5500KN
Max. Lifting Load 5~550t
Max. Lifting Height 6m~24m or other height
Span 7.5m~31.5m
Place of Origin Henan, China
Brand Name Pengda
Model Number QD
Certification ISO9001,IAF,CNAS
Warranty 14 months
After-sales Service Provided Engineers available to service machinery overseas
5~550ton Two Girder EOT Crane
Introduction
      Double girder overhead crane( EOT crane ) is applied in open warehouse or rail sideways to conduct common loading unloading and material handling works. It is a heavy duty type overhead crane that satisfy frequently using.
      This overhead crane is composed of bridge, travelling mechanisms, trolley, electric equipment. The bridge frame adopts box welded structure, the crane travelling mechanism adopts separate drive withe motor and speed reducer.

 v The capacity: 5T, 10T, 15T,16/3.2T, 20/5T, 32/5T, 50/10T, 75/20T, 100/20T, 100/30T, 125/30T, 150/30T,

           160/32T, 200/50T, 400/80T, 550/250T

 v The span: 7.5m to 31.5m

 v The lifting height: 6m~24m or other demand

 v Working grade: A5~A7

 v Working temperature: -25 to +40 centigrade

 v Hoist type: wire rope electric trolley

Schematic diagram   5~550ton Two Girder EOT Crane

Safety precautions

 Ø Upward and downward limit switch for hook

 Ø Low-voltage protection function

 Ø Phase sequence protection function

 Ø Overload protection

 Ø Emergency stop protection

 Ø Hook with latch

 Ø Rubber buffers

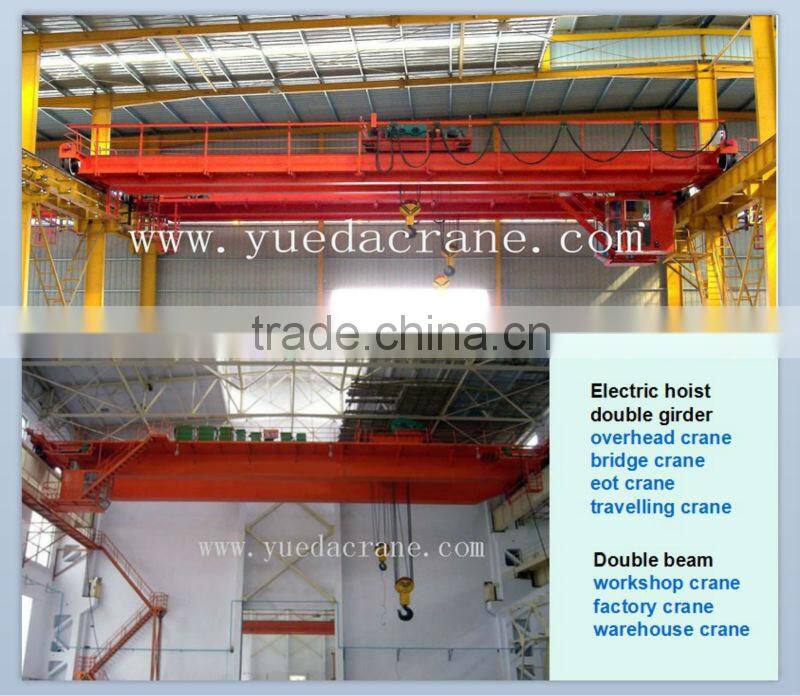

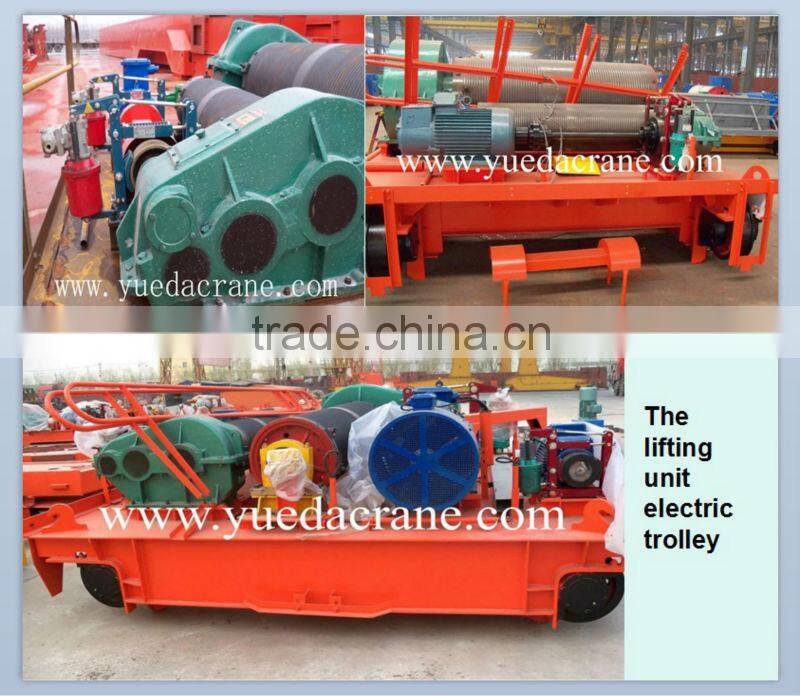

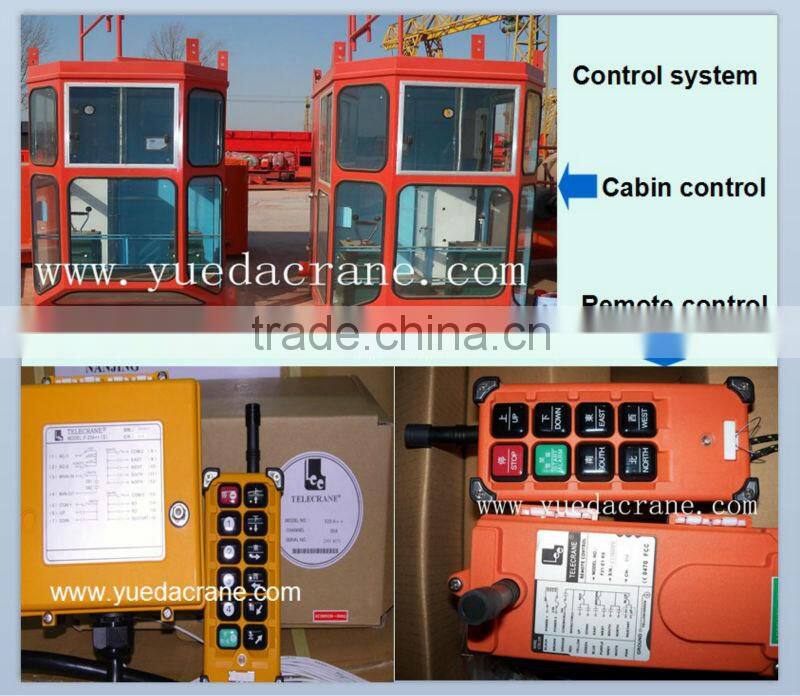

Product show

5~550ton Two Girder EOT Crane

5~550ton Two Girder EOT Crane

5~550ton Two Girder EOT Crane

5~550ton Two Girder EOT Crane

5~550ton Two Girder EOT Crane

After-sale seivice

 u 14 months warranty the date of B/L

 u One year quick-wear parts for free

 u Professional technicians provide installation, commissioning services.

 u Technical advisory for any time.

Welcome select our Overhead Crane and visit our factory. Our professinal engineers and technicians will serve you with all technical support.

5~550ton Two Girder EOT Crane
