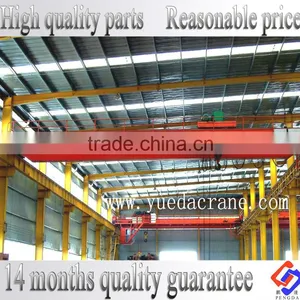

LH model double girder overhead/bridge crane(double girder EOT crane) is traveling on fixed support, The frame adopts box-type welding mechanism, and it used together with CD1/MD1 or HC/HM model electric hoist as a complete set, It is an mid-duty class crane, the capacity from 5 tons to 50 tons. The span is 7.5-35m. working grade is A3~A4. Working temperature is -20 to +40 centigrade.
This overhead/bridge crane(EOt crane) is widely used in plants, warehouses, material stocks to lift goods. It is prohibited to use the equipmenmt in the combustible, explosive to corrosives environment.
≡≡≡Sketch
≡≡≡Technical date
Span(rail to rail center) |
7.5m~35m |
|||||
Lifting height |
6m, 9m, 12m or other height |
|||||
Capacity |
5t |
10t |
15t, 16t |
20t, 25t |
30t, 32t |
40t, 50t |
Lifting speed(m/min) |
8, 8/0.8 |
7/0.7 |
3.5, 3.5/0.35 |
4, 4/0.4 |
3, 3/0.3 |
2, 2/0.2 |
Cross travelling speed(m/min) |
10, 20 |
10, 20 |
10, 20 |
10, 20 |
10, 20 |
10, 20 |
Long travelling speed(m/min) |
20, 30 |
20, 30 |
20, 30 |
20, 30 |
20, 30 |
20, 30 |
Duty Class |
A3/A4 |
|||||
Power source |
380V, 50HZ, 3 phase (or other standard) |
|||||
Working temperature |
-20~40°C |
|||||
Control model |
Pendant pushbutton control, cabin control or remote control |
|||||
≡≡≡Safety features
Overload limit device
Lifting height limit device
Low voltage protection function
Phase sequence protection function
Emgergency stop function
Crane traveling limiter
Hooks with latch
Rubber buffers
≡≡≡Photos show
≡≡≡Delivey show
≡≡≡Customers visiting
≡≡≡ Product FAQ
If you interested in our crane, please confirm the below information:
1. Capacity of crane
2. Span(distance from rail center to rail center)
3. Lifting height(distance from ground to hook center)
4. Industrail voltage
5. Do you need we supply traveling rail? if you need, please tell me the length of rail
6. If you have drawing about crane, please send it to me.
Welcome to send inquiry to us by email or online, our professional engineers and technicians will serve you all technical support, and I will offer you best service.
