5ton to 550ton Two Beam EOT Crane

5ton to 550ton Two Beam EOT Crane thumbnail-1
5ton to 550ton Two Beam EOT Crane photo-1
US$ 5,000 - 90,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Warehouse/workshop/factory, etc
Rated Loading Capacity:
5~550t
Contact Supplier Request Quote Chat Now
Xinxiang Yueda Crane Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Warehouse/workshop/factory, etc
Rated Loading Capacity 5~550t
Rated Lifting Moment 50~5500KN
Max. Lifting Load 5~550t
Max. Lifting Height 6m~24m or other height
Span 7.5m~31.5m
Place of Origin Henan, China
Brand Name Pengda
Model Number QD
Certification ISO9001,IAF,CNAS
Warranty 14 months
After-sales Service Provided Engineers available to service machinery overseas
5ton to 550ton Two Beam EOT Crane
Introduction
Double/Two  beam overhead crane( EOT crane ) is applied in open warehouse or rail sideways to conduct common loading unloading and material handling works. It is a heavy duty type overhead crane that satisfy frequently using.
This overhead crane is composed of bridge, travelling mechanisms, trolley, electric equipment. The bridge frame adopts box welded structure, the crane travelling mechanism adopts separate drive withe motor and speed reducer.

 v The capacity: 5T, 10T, 15T,16/3.2T, 20/5T, 32/5T, 50/10T, 75/20T, 100/20T, 100/30T, 125/30T, 150/30T,

           160/32T, 200/50T, 400/80T, 550/250T

 v The span: 7.5m to 31.5m

 v The lifting height: 6m~24m or other demand

 v Working grade: A5~A7

 v Working temperature: -25 to +40 centigrade

 v Hoist type: wire rope electric trolley

Schematic diagram   5ton to 550ton Two Beam EOT Crane

Safety precautions

 Ø Upward and downward limit switch for hook

 Ø Low-voltage protection function

 Ø Phase sequence protection function

 Ø Overload protection

 Ø Emergency stop protection

 Ø Hook with latch

 Ø Rubber buffers

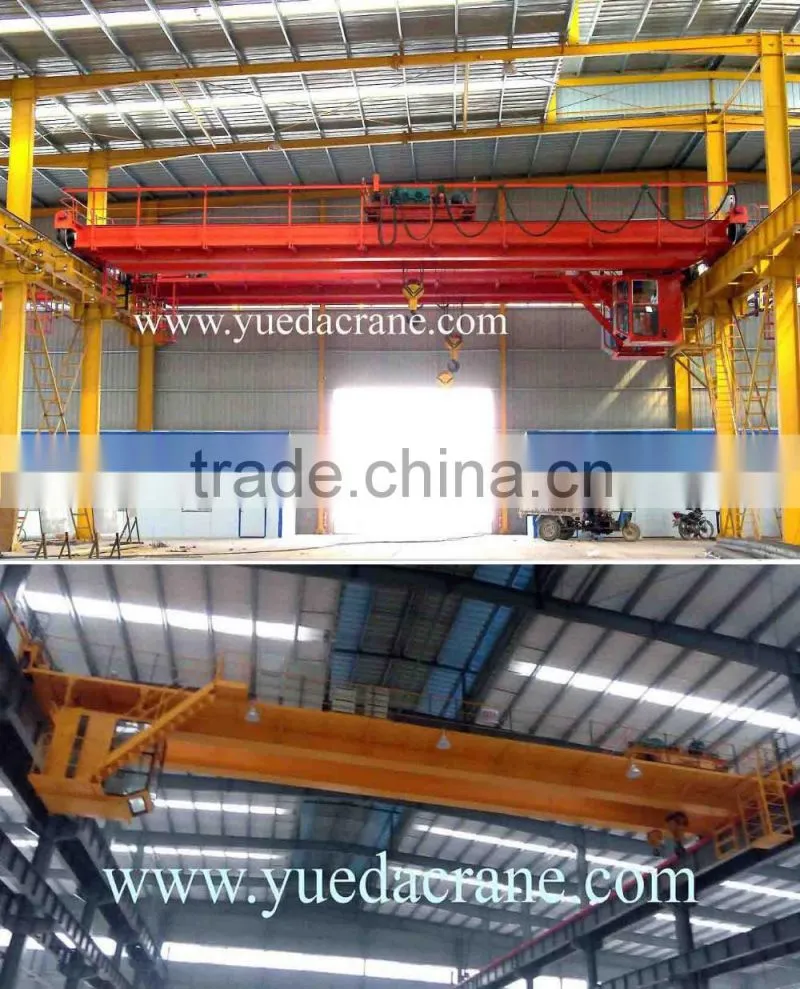

Product show

5ton to 550ton Two Beam EOT Crane5ton to 550ton Two Beam EOT Crane5ton to 550ton Two Beam EOT Crane

Customers visiting

5ton to 550ton Two Beam EOT Crane

After-sale service

 u 14 months warranty the date of B/L

 u One year quick-wear parts for free

 u Professional technicians provide installation, commissioning services.

 u Technical advisory for any time.



Please confirm the below information befor sending inquiry:

1. Capacity of crane

2. Span(distance from rail center to rail center)

3. Lifting height(distance from ground to hook center)

4. Power source(380/415/400/440/220V, 50/60HZ, 3Phase)

5.  Do you need rails(tracks)? if you need, please tell me rail's length per side.

6. What materials the crane will lift?

7. Crane working time per day?



Welcome choose our crane and visit our factory, our professional engineers and technicians will serve you with all technical support.

5ton to 550ton Two Beam EOT Crane



Thank you for your browse
