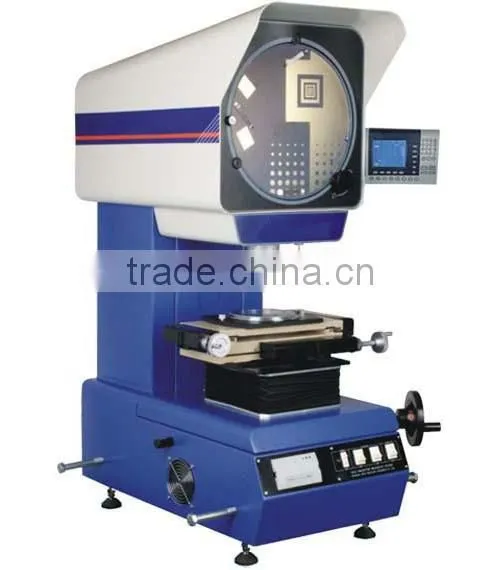

VB12 Series dia300mm Digital Vertical Optical Profile Projector
Description:
300mm diameter screen with digital protractor;
Working stage lifting system to focus;
Precision movement work-stage;
Halogen profile and surface illumination adjustable;
Geometric multifunction data processing system upgrade to DRO DP300;
Built-in Mini-printer;
Available 10x,20x,50x,100x objective, rotary table, foot-switch, etc.
Specifications:
Reverse Image |
VB12-1550 |
VB12-2010 |
Obverse Image |
VB12-1550Z |
VB12-2010Z |
Metal Stage Size |
340x152 mm |
350x170 mm |
Glass Stage Size |
196x96 mm |
246x120 mm |
Stage Travel: X and Y-axis |
150x50 mm |
200 x 100 mm |
Stage Travel: Z-axis |
100mm (for focusing) |
|
Accuracy |
≤3+L/200(um) |
|
Resolution of X and Y-scale |
0.0005 mm |
|
Screen |
Diameter :Ø330mm,Effective Range ≥ Ø300(with “* ” Reticle) |
|
Rotary Range: 0~360° ; Resolution Rotary Indicator: 1’ or 0.01° | ||
Digital Readout |
DP 300Multifunctional Data Processing System/RS232 |
|
Illumination |
24v/150w halogen lamp (adjustable) |
|
Cooling System |
Forced Cooling (3-axis-fans) |
|
Power Supply |
AC110V/60Hz; 220V/50Hz, 400W |
|
Dimension (D×W×H) |
785x 575 x 1136mm |
|
Packing Dimension (L×W×H) |
1540 x 790 x 1500mm |
|
Gross/Net Weight |
260/220Kg |
|
Standard Delivery:
Product Name |
Product Name |
Product Name |
Digital Readout DP300 |
10X Objective |
Screen Clamp Device |
Built-in Mini-printer |
Transmitted lens |
Operation Manual |
Applicable objects:
The perfect vision system for non-contact measurement and further inspection of Stamped and injected parts,Plastic parts, injection moulds,Electronic and other components commonly used in silk screen printing as well as the lead industry among others
Professional packaging: 1pc with poly bag.wooden case and canton box are available. make sure the machine safe.
Shipping :2 working days after order confirmed
Trade information
Trade Terms: FOB,CIF,EXW
Payment Terms: T/T ,Western Union,Paypal,Escrow.MoneyGram.
Payment Condition: 30% deposit in advance,70% balance before delivery. payment terms can be discussed.
Delivery Time: 5-7 working days after receive the deposit.
Packing: Wooden case .Professional export standard packaging to protect the goods.
Shipping : By sea,By air and by express delivery.
Trading process
, One years warranty for the mother board and glue dispensing machie
2, Life-long maintenance service for the product
We are capable to manufacture dispensing equipment and liquid dispenser according to customer's drawings or samples. We are insisting on providing top quality products with competitive price. Please feel free to contact us. Welcome your inquiry.
Dongguan Jaten Instrument Co.,Ltd . It was founded in 2005, is a specialized in profile projector Image measuring instrument CNC glue dispenser, electronic product dispensing machines, multi-axis dispensing machine Jaten has passed the ISO 9001:2008 quality Management System and have granted the certification of CE. It’s a research,development,manufacturing and sales of international high and new technology enterprise. R& D Headoffice is located in Dongguan city, Guangdong province, China. The total area is 2500 square meters, We have advanced R&D center of the engineers and technicians 23 people, 2 modern production workshops , more than 500 staffs.
Company products are mainly used in electronic appliances, hardware and plastic products, aerospace, military industry and so on .success provide sulotion for Samsung.HP.Epson,DA.Foxconn.Life-on .Vtech and other global well-know enterprises.
Jaten have more than 10 brand agents over the world. products was exported to more than 40 countries and regions.
