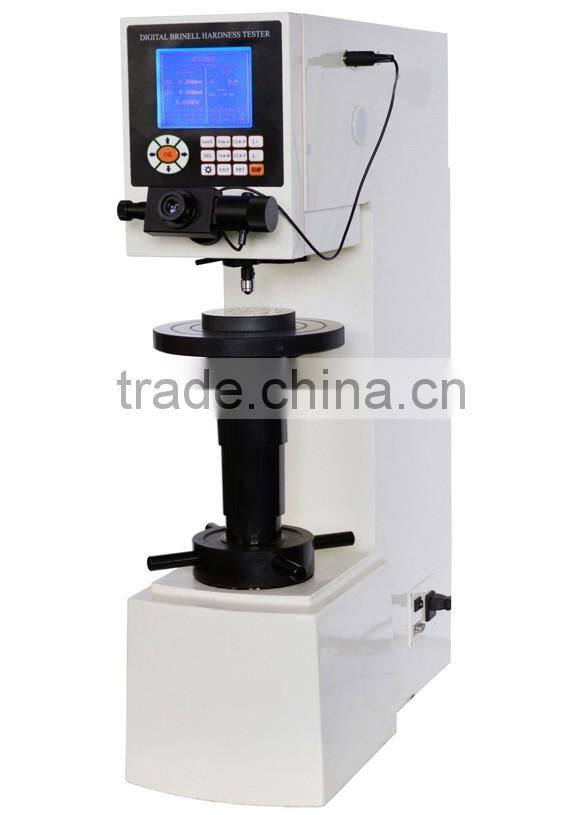

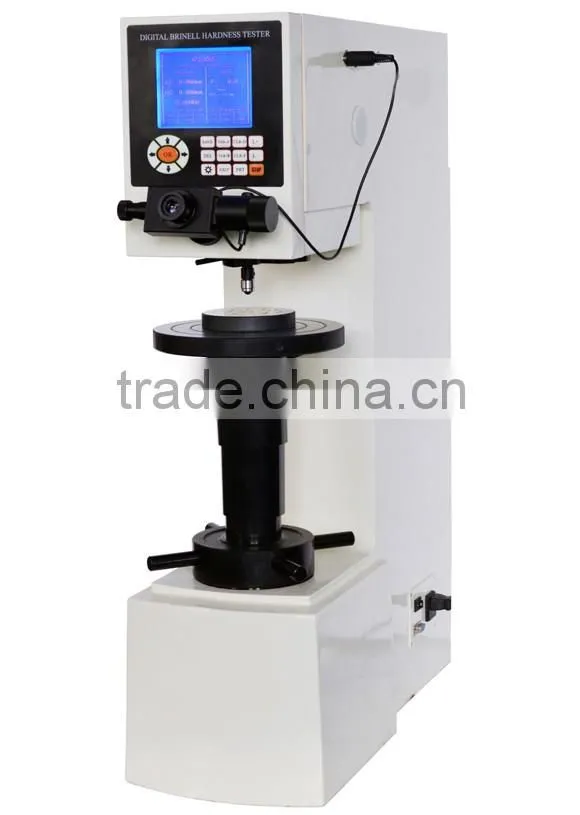

Dongguan factory HB-3000D Advanced Digital Brinell Hardness Tester
HB-3000D is a half automatic and intelligent Brinell hardness testing machine, it adopts the pressure sensor to replace the traditional quality weight, this innovative design makes the instrument more accurate.
HB-3000D selection of testing force and dwell time is controlled and monitored on the front panel, it is automatic during the process of loading, dwell and unloading.
HB-3000D adopts digital Brinell microscopes with adjustable LED illuminator, it doesn’t need the operator to read the detail length of indentation, it only needs operator to aim the D1, D2 diameter of indentation and press the length key twice above the Microscope, then the built-in computer can computer the Brinell scale and display the final testing result on LCD display automatically.
HB-3000D supports the hardness conversion , it can use Brinell scale to get conversion scale of HRC, HRB, HRC, HV, etc.
HB-3000D doesn’t need the operator to read the detail diameter of indentation and check the Brinell testing table, it improves the testing speed and accuracy of hardness testing obviously.
Main Function:
Product Name |
Digital Brinell Hardness Tester |
|
Model |
DHB-3000 |
|
Testing Force |
62.5Kgf, 100Kgf, 125Kgf, 187.5Kgf, 250Kgf, |
|
612.9N, 980N, 1226N, 1839N, 2452N, | ||
Testing Range |
(8~650) HBW |
|
Hardness Display |
LCD Display |
|
Magnification of Microscope |
20x Mechanic Microscope |
|
Max. Height Of Specimen |
225mm |
|
Instrument Throat |
135mm |
|
Output Data |
RS 232/Printer |
|
Auto Hardness Conversion |
HR, HV, HK, etc |
|
Power Supply |
AC220V/50Hz;110V/60Hz |
|
Dimension(LxWxH) |
893 x720 x747mm |
|
Gross/Net Weight |
160Kg/130Kg |
|
Execution Standard |
GB/T231.2, JJG150, EN-ISO 6506 |
|
Accuracy of Brinell Hardness Testing | ||
Hardness Range |
Max. Tolerance |
Repetition |
HBW≤ 125 |
≤± 3.5% |
≤ 3.5% |
125 |
≤± 2.5% |
≤ 3.0% |
HBW> 225 |
≤± 2.0% |
≤ 2.5% |
XHB-3000 Standard Packing List:
Packing List |
Packing List |
Packing List |
Instrument Main Body |
Ø5mm Ball Indenter |
Power Cable/Fuse |
20x Digital Microscope |
Ø2.5mm Ball Indenter |
Accessories Box |
Hardness Block HBW/3000/10 |
Ø 200mm Flat Anvil |
Anti-dust Cover |
Hardness Block HBW/750/05 |
Ø 60mm Flat Anvil |
Mini-Printer |
Ø10mm Ball Indenter |
Ø 80mm V-shape Anvil |
Instrument Manual |
Applicable objects:
The perfect vision system for non-contact measurement and further inspection of Stamped and injected parts,Plastic parts, injection moulds,Electronic and other components commonly used in silk screen printing as well as the lead industry among others
Professional packaging: 1pc with poly bag.wooden case and canton box are available. make sure the machine safe.
Shipping :2 working days after order confirmed
Trade information
Trade Terms: FOB,CIF,EXW
Payment Terms: T/T ,Western Union,Paypal,Escrow.MoneyGram.
Payment Condition: 30% deposit in advance,70% balance before delivery. payment terms can be discussed.
Delivery Time: 5-7 working days after receive the deposit.
Packing: Wooden case .Professional export standard packaging to protect the goods.
Shipping : By sea,By air and by express delivery.

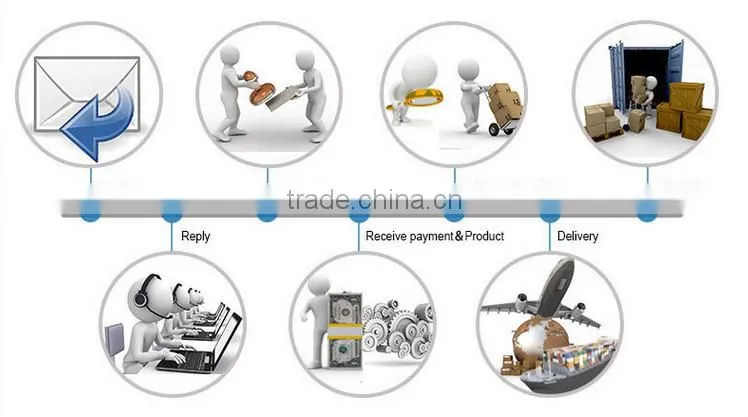

Trading process
, One years warranty for the mother board and glue dispensing machie
2, Life-long maintenance service for the product
We are capable to manufacture dispensing equipment and liquid dispenser according to customer's drawings or samples. We are insisting on providing top quality products with competitive price. Please feel free to contact us. Welcome your inquiry.

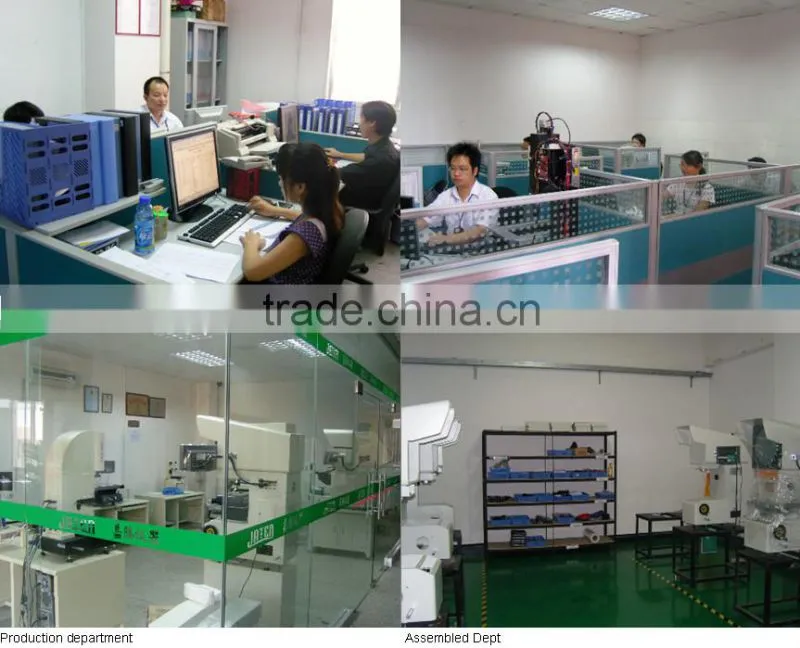

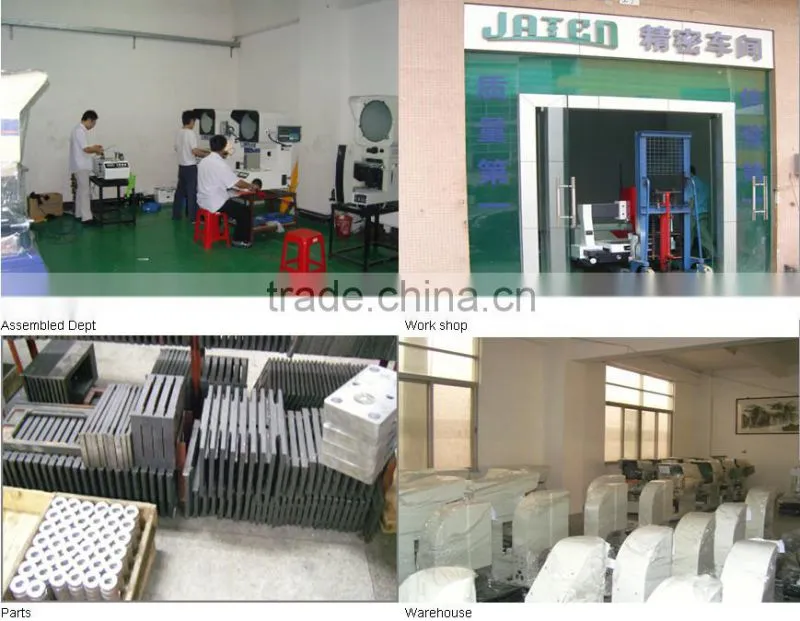

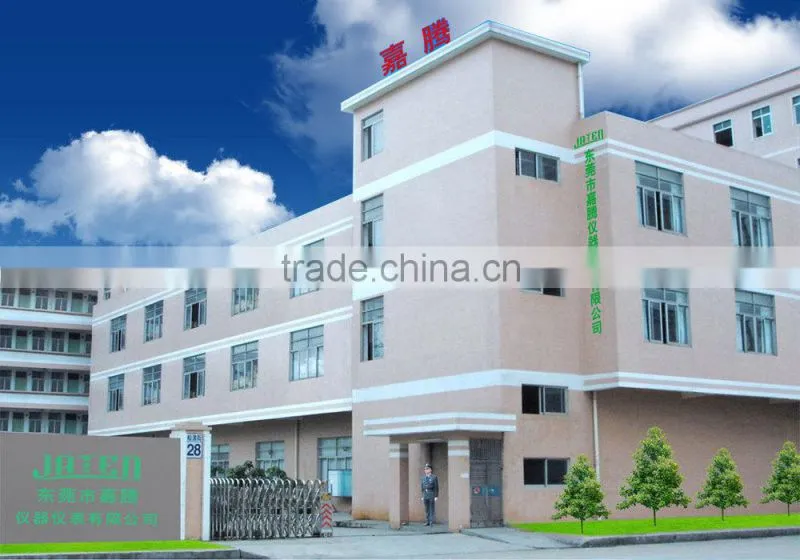

Dongguan Jaten Instrument Co.,Ltd . It was founded in 2005, is a specialized in hardness tester profile projector Image measuring instrument CNC glue dispenser, electronic product dispensing machines, multi-axis dispensing machine Jaten has passed the ISO 9001:2008 quality Management System and have granted the certification of CE. It’s a research,development,manufacturing and sales of international high and new technology enterprise. R& D Headoffice is located in Dongguan city, Guangdong province, China. The total area is 2500 square meters, We have advanced R&D center of the engineers and technicians 23 people, 2 modern production workshops , more than 500 staffs.
Company products are mainly used in electronic appliances, hardware and plastic products, aerospace, military industry and so on .success provide sulotion for Samsung.HP.Epson,DA.Foxconn.Life-on .Vtech and other global well-know enterprises.
Jaten have more than 10 brand agents over the world. products was exported to more than 40 countries and regions.
