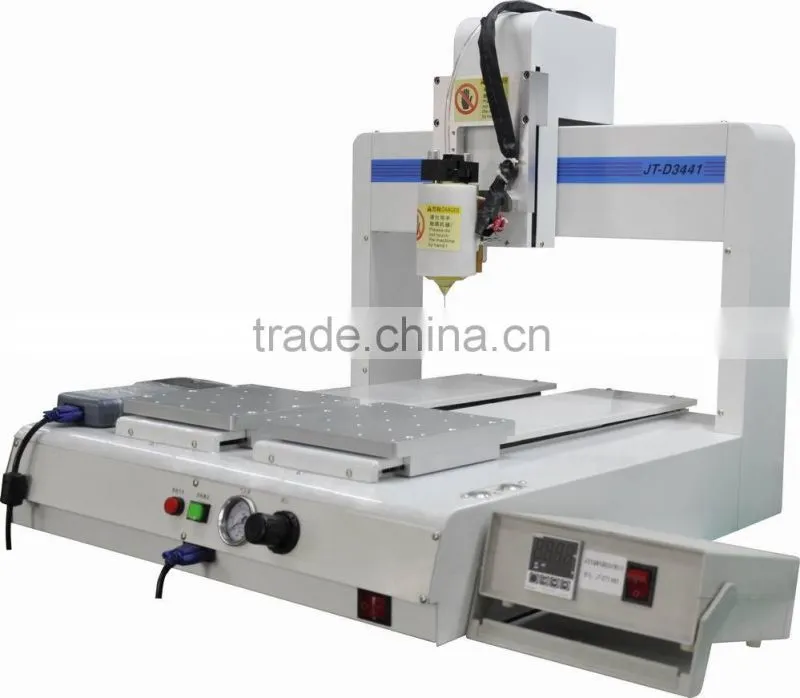

Precision Robot Heating Glue Dispensing Machine
Specifications
1.Save labor and Easy operating
2.China Direct manufactory Supplier
3.Accurancy and Japan Panasonic Motor
4,Best price + Fast delivery
5,Heating glue
Features
1, Alternative artificial particular dispensing operation.realizing mechanization production.
2, The operation is simple and convenient.high-speed and precision.
3, The dispensing program files by usb upload/nvenient data management.
4, The machine with the needle on the control key.does not need external teaching.
5, In Chinese/English operation interface.
6, The machine run silent.
7, Display the dispensing parameters be clear at a glance.
8, Can be arbitrarily set point before gelling time delay.by time.eliminate dispensing operation in the light of the "big head" and wiredrawing phenomenon.
9, Use precision stepper motor.make dispensing velocity control . The built-in precision dispensing controller.without external carry dispensing controller.
10,Optional add magnetic electric switch.make the dispensing operation more human.
Product Specifications
• Model Number: JT D3441
• Working X/Y/Z(mm) : 400*400*400*120MM
• Max Load Y-Axis/Z-Axis : 10kg/5kg
• X/Y/Z(mm/sec) : 0.1~800
• Resolution : 0.01mm/Axis
• Repetitive positioning Accuracy : +/-0.01mm/Axis
• Program Display : LCD
• Motor System : imported Japan Panasonic micro precision motor
• Driving method: Synchrongous driving belt
• Interpolation Function : 3 axis
• Programming method : controler
• 1/o Singals Port : 8I/O
• External interface : USB
• Power : AC220V/ 110V 50/60 HZ
• Working Temperture : 10-40 degree
• Working Relative Humidity : 20-60 %
• Dimensions (W*D*H)
• Robot Weight (Kg) : 85kg
Applicable objects:
Mobile phones, computer case, CD-ROM driver, printer, ink folder, PCB board, LCD, LED, DVD, digital camera, switches, connectors, relays, radiators, semiconductors, Filter,Buttons,clocks, toys and medical apparutus etc.
Glue type
Silica gel, EMI conductive adhesive, UV glue, AB glue, glue, epoxy adhesive, sealant, hot glue, grease, glue, red glue, silver paste, thermal paste, solder paste, transparent paint.
Professional packaging: 1pc with poly bag.wooden case and canton box are available. make sure the machine safe.
Shipping :10-15 working days after order confirmed
Trade information
Trade Terms: FOB,CIF,EXW
Payment Terms: T/T ,Western Union,Paypal,Escrow.MoneyGram.
Payment Condition: 30% deposit in advance,70% balance before delivery. payment terms can be discussed.
Delivery Time: 5-7 working days after receive the deposit.
Packing: Wooden case .Professional export standard packaging to protect the goods.
Shipping : By sea,By air and by express delivery.
Trading process
One years warranty for the mother board and glue dispensing machie
2, Life-long maintenance service for the product
We are capable to manufacture dispensing equipment and liquid dispenser according to customer's drawings or samples. We are insisting on providing top quality products with competitive price. Please feel free to contact us. Welcome your inquiry.
Company profile
Dongguan Jaten Instrument Co.,Ltd . It was founded in 2005, is a specialized in dimensional measuring instrument, precision optical testing instruments and automatic dispensing machine, electronic product dispensing machines, multi-axis dispensing machine, PCB dispensing machines and Precision Robot Glue Dispensing Machinery . Jaten has passed the ISO 9001:2008 quality Management System and have granted the certification of CE. It’s a research,development,manufacturing and sales of international high and new technology enterprise. R& D Headoffice is located in Dongguan city, Guangdong province, China. The total area is 2500 square meters, We have advanced R&D center of the engineers and technicians 23 people, 2 modern production workshops , more than 500 staffs.
Company products are mainly used in electronic appliances, hardware and plastic products, aerospace, military industry and so on .success provide sulotion for Samsung.HP.Epson,DA.Foxconn.Life-on .Vtech and other global well-know enterprises.
Jaten have more than 10 brand agents over the world. products was exported to more than 40 countries and regions.
Certificates
Trade fair
Our team
Contact: Cathy Zhou
Mobile phone: 008613538338506 Tel: 0086 769 23325800
Trade manager: cnjaten skype: jateninstrument
Jaten Instrument Co.,Ltd
Factory address: 28 Songlang Street.Shangqiao Industrial Road.Dongchen District.Dongguan.Guangdong.China
www.jaten.en.china.cn
