Product Details
Place of Origin: | Henan, China | Brand Name: | Pengda | Model Number: | JM |
Power Source: | Other, Electric, 380V 50Hz 3phase or according to your demand | Application: | Other, boat, mine, crane,and equipment installation, etc | Capacity: | 10~650KN |
Product Description
Wire rope electric winch 220V
Introduction
JM series wire rope electric winch is gears reducer driving .Mainly used for hoisting pull drag the weight drop.Be widely used in boat, port, workshop, warehouse, construction and many kinds producing-line, so is necessary equipment for lifting goods, raising labor efficiency, improving working conditions.
JM electric winch lifting can lift heavy weight in the construction site and port pier; it also can be used as traction power in installing of the factories and mines. It is not only can single use, but also can combined with other large-scale and complex machine.
Ø The capacity: 1t, 1.6t, 2t, 3.2t, 5t, 6t, 8t, 10t, 12.5t, 13.5t, 16t, 20t, 25t, 32t, 50t, 65t
Ø The rated load: 10, 16, 20, 32, 50, 60, 80, 100, 125, 135, 160, 200, 250, 320, 500, 650KN
Ø Working grade: M5
Ø Lifting unit: Wire rope
Ø Rated speed: 0~20m/min or as your demand
Ø Working temperature: -25~+40 centigrade
Main technical specification
Model
| Rated load (KN) | Rated speed (m/min) | Rope length (m) | Rope diameter (mm) | Motor type | Motor power (KW) | Overall dimension (mm) | Weight (kg) |
JM1 | 10 | 15 | 100 | 9.3 | Y112M-6 | 3 | 620*701*417 | 270 |
JM1.6 | 16 | 16 | 150 | 12.5 | Y132M-6 | 5.5 | 945*996*570 | 500 |
JM2 | 20 | 16 | 150 | 13 | Y160M-6 | 7.5 | 945*996*570 | 550 |
JM3.2 | 32 | 9.5 | 150 | 15.5 | YZR160M-6 | 7.5 | 1430*1160*910 | 1100 |
JM5 | 50 | 10 | 270 | 21.5 | YZR160L-6 | 11 | 1235*1230*805 | 1560 |
JM6 | 60 | 9.5 | 270 | 24 | YZR180L-6 | 15 | 1235*1509*805 | 1800 |
JM8 | 80 | 8 | 250 | 26 | YZR180L-6 | 15 | 2090*1475*956 | 2900 |
JM10 | 100 | 8 | 170 | 30 | YZR200L-6 | 22 | 2090*1475*956 | 3000 |
JM12.5 | 125 | 8 | 300 | 34 | YZR225M-6 | 30 | 2880*2200*1550 | 5000 |
JM13.5 | 135 | 8 | 290 | 28 | YZR225S-8 | 22 | 2990*2363*1650 | 6500 |
JM16 | 160 | 10 | 500 | 37 | YZR250M2-8 | 37 | 3750*2400*1850 | 8800 |
JM20 | 200 | 10 | 600 | 43 | YZR280S-6 | 45 | 3950*2560*1950 | 9900 |
JM25 | 250 | 9 | 700 | 48 | YZR280M-8 | 55 | 4350*2800*2030 | 13500 |
JM32 | 320 | 9 | 700 | 56 | YZR315S-8 | 75 | 4500*2850*2100 | 14800 |
JM50 | 500 | 9 | 800 | 65 | YZR315M-8 | 90 | 4930*3050*2250 | 19500 |
JM65 | 650 | 10 | 800 | 64 | LA8315-8AB | 160 | 5900*4680*3200 | 46000 |

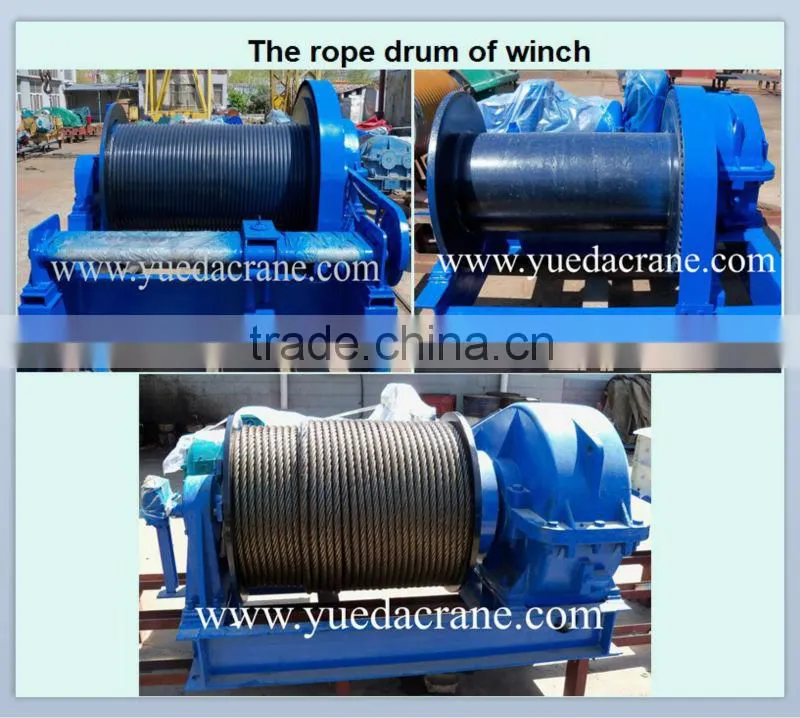

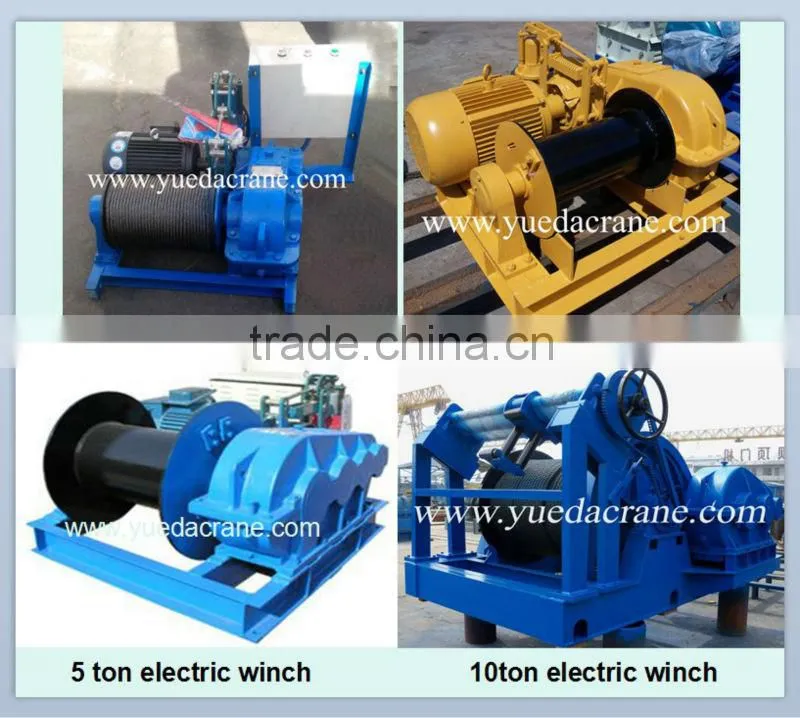

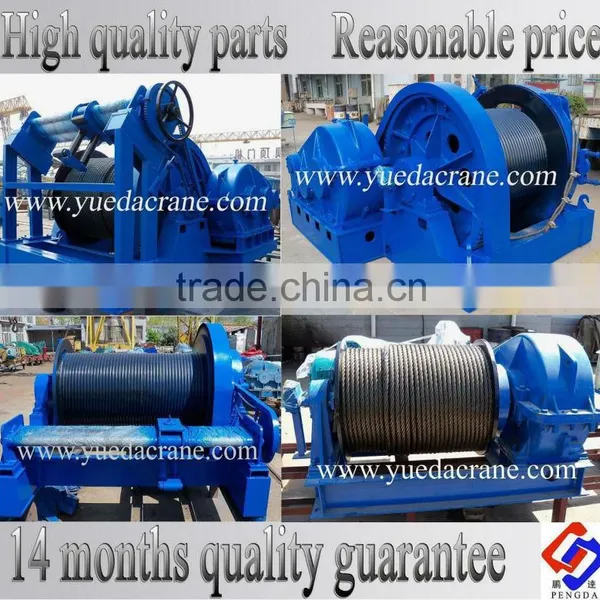

Product show
CE certificate
Service
1) Pre-sale service:
Freely provide project designing, process designing, choosing suitable equipment for you.
2) Medium-sales service:
Accompany you to complete the acceptance of the equipment,draft the construction scheme and detailed process, and complete process of export
3) After-sales service:
u 14 months warranty from the date of B/L
u One year quick-wear parts for free
u Professional technicians provide installation, commissioning services
u Technical advisory for any time
Welcome select Wire Rope Electric Winch. Our professional engineers and technicians will serve you with all technical support.
