Wire Rope Electric Hoist 5 ton:
CD&MD model wire rope electric hoist is a kind of light-duty lifting equipment with advantages of tight structure, light weight, small volume, wide common use and convenient operation etc.If reducers with hard gear surface are applied, it will have long life and high mechanical efficiency. Conic rotor brake motors are equipped which has safety limiter in both up and down directions.
The standard capacity of electric hoist: 0.5T, 1T, 2T, 3T, 5T, 10T, 16T, 20T.
Lifting height: 6m, 9m, 12m, 18m, 24m, 30m, and Max. 100m.
The general details of wire rope electric hoist with standard type | |||||
Model |
CD |
MD |
|||
Capacity (ton) |
0.5, 1, 2, 3, 5 |
10, 16, 20 |
0.5, 1, 2, 3, 5 |
10, 16, 20 |
|
|
Travelling mechanism |
Travelling Speed (m/min) |
10, 20, 30 |
10, 20, 30 |
|
|
Motor (kw) |
1x0.4, 1x0.8 |
2x0.8, 4x0.8 |
1x0.4, 1x0.8 |
2x0.8, 4x0.8 |
|
|
Lifting mechanism |
Lifting Speed (m/min) |
8 |
7, 3.5 |
8/0.8 |
7/0.7, 3.5/0.35 |
|
Lifting height (m) |
6, 9, 12, 18, 24, 30 |
9, 12, 18, 24, 30 |
6, 9, 12, 18, 24, 30 |
9, 12, 18, 24, 30 |
|
Motor (kw) |
0.8, 1.5, 3.0, 4.5, 7.5 |
13 |
0.8/0.2, 1.5/0.2, 3.0/0.4, 4.5/0.4, 7.5/0.8 |
13/1.5 |
|
Duty Class |
M3 |
||||
Power source |
380V, 50HZ, 3 phase (or other standard) |
||||
Working temperature |
-20~40°C |
||||
Branch of rope |
2 ropes(0.5t~5t), 4 ropes(10t~20t) |
||||
Brake |
Mounted on motors |
||||
Control model |
Pendant pushbutton control or wireless remote control |
||||

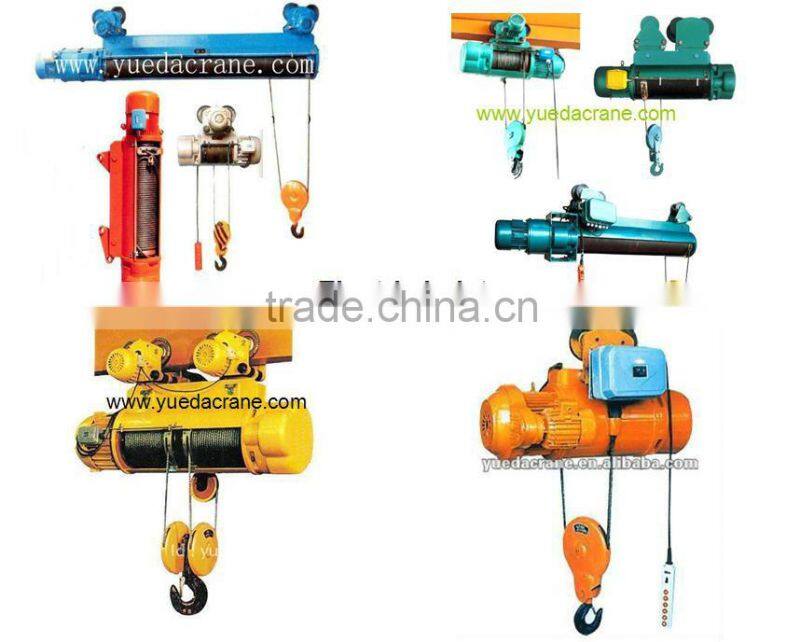

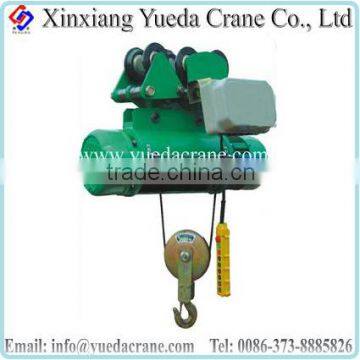

The picture of electric hoist:
The lifting motor of electric hoist:
The travelling unit of electric hoist:
The wire rope guider of electric hoist:
The main limit witch for upward/downward motions & second limit switch for upward motion:
The electrical control box of hoist with Siemens brand contactors and pendant pushbuttons control:
The package of hoist for delivery:
