Help CenterPlastics Film Squeezing Dryer
Related Products
Specifications
1. Capacity: 1000kg/h2, Net weight: 8T
3.Final moisture: 3%
5, Strong pusher
squeezing dryer
plastic film squeezing machine,plastic dryer, film dryer, squeezing dryer
Our machine
Used in the film recycling line. Hydraulic strong power push/squeezing the wet film dry,
1. Working principle:

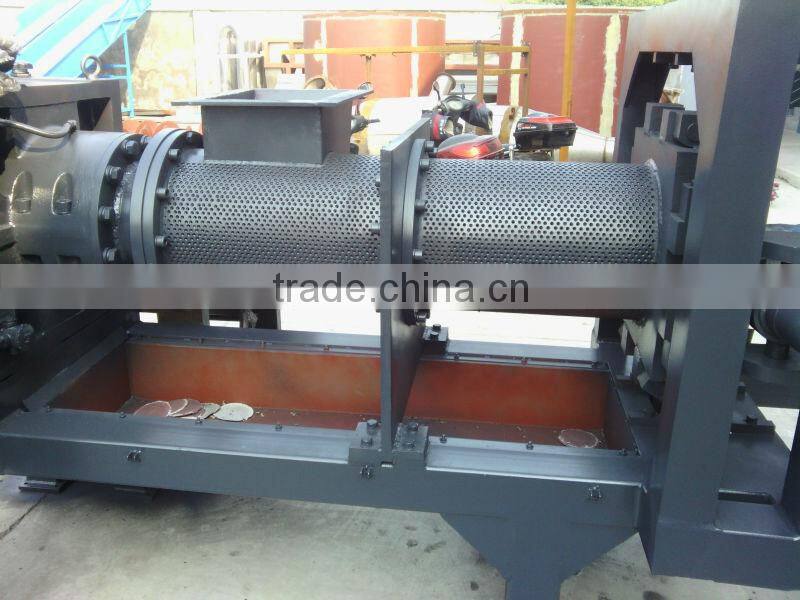

1.1 Our squeezing machine consists of frame, feeding box, discharging box, spiral spindle, sieve plate, fixed shell for sieve plate, driving system, etc. Your material will be put into the feeding box, with the help of screw shaft, un-equidistant screw shaft and fixed sieve plate will squeeze the material in order to wiping and dewatering.
1.2 Our squeezing machine is conical shell, equipped with un-equidistant screw shaft, which will compress material during rotating because of the difference from screw pitch length and height. The water squeezed from material will flow to launder through screen hole, and the material will be discharged from exhaust end.
Characteristics:
* Stainless Steel Screen
The filer screen in the squeezing chamber is made of stainless steel, with the function of corrosion resistance and rustproof
* No Clogging of Screen
The filter screen are specially designed to prevent plastic material from clogging
* Final moisture within 3%
The final moisture of the material which are extruded by the dryer is 3-5%
This machine is not only with high capacity but also with low energy consumption. The final moisture content can up to 3%. It will help you reduce the cost and improve productivity.
I. Features:
1.This machine is our new designed machine, made by the advanced Italian techniques, specially screw pressing dewatering design;
2. It is equipped with an electric control cabinet, feeder mouth is easy to control the drying effect;
3. This machine is especially for plastic film, plastic bags, woven bags, Jumbo bags. Solve the drying problem in the past.
4. Instead of the dewatering machine, hot blower in the recycling line.
5. Easy to operate, drying effect can reach to 97%-98%.
