Specifications
1. ppr pipe machine2. Capacity: 700-800kg/h.
3. Total power: 560kw.
4. HDPE large diameter pipe extrusion

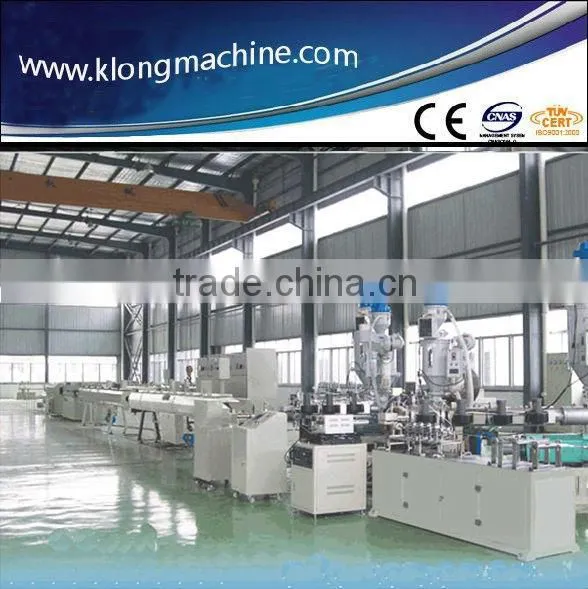

HDPE CPVC PPR Pipe Machine
ppr pipe machine
HDPE CPVC PPR Pipe Machine application:
1.Build hot and code water system, including central heating system.
2.Build heating system, including floor,wall and radiant heating system.
3.Could be direct used in purfled and drinking water supply system.
4.Central air condition system.
5. Adopts co-extrusion die head plus assistant marking line for PPR pipe.
HDPE CPVC PPR Pipe Machine Data sheet:
Model |
Screw Diameter (mm) |
L/D |
Pipe range |
Capacity (kg/h) |
Main motor power (kw) |
Total power (kw) |
Line length (m) |
|
PPR-63
|
65 |
33:1 |
20-63 |
70-110 |
45 |
90 |
24 |
|
PPR-110(A)
|
75 |
33:1 |
20-110 |
110-150 |
55 |
110 |
30 |
|
PPR-110(B)
|
75 |
33:1 |
75-110 |
110-200 |
90 |
150 |
30 |
|
PPR-160
|
90 |
33:1 |
110-160 |
200-300 |
110 |
180 |
32 |
HDPE CPVC PPR Pipe Machine flow as below:
1.Extruder:
2 Mold
1.material:Mould steel
2.Pressure ratio:made according to pipe diameter
3 Vacuum calibration tank
No |
Name |
Specs |
1 |
Main material |
Stainless steel |
2 |
Water and vacuum pump from shanghai YvLong |
|
3 |
Main electric |
Schneider |
4 |
The tank is equipped with water level and water temperature controlling |
|
4 Hauler
No |
Name |
Specs |
1 |
Hauling motor |
TECO servo |
2 |
Gear box |
Desen (Germany joint ) |
3 |
Main electrics |
Schneider |
4 |
Hauling type |
Pedrail type |
5 Cutter
Our supplier:
