waste plastic recycling granulating machinery

Specifications

waste plastic recycling granulating machinery
CE,ISO9001
stable operation,low consumption



Application of waste plastic recycling granulating machinery :

This waste plastic recycling granulating machinery unit is mainly for PET (bottle) flakes: the labels and bottle caps are automatically separated,then after being washed, dewatered and dried, the water content will be very low, and PP/PE film after being washed can be directly granulated (waterring palletizing), the gained granules are even and smooth with shiny surface. So, it is an ideal equipment in waste plastic recycling industry, with leading technology in the world. For the plastic recycling line ,the final product is the cleaning flakes ,if you want the final product is pellets ,we should equip the granulator line again .Nowdays, our PET recycling machine have been exported to many countries & regions, for example Latin-America , Mideeast, Russia & mid-Affica , etc





Characteristic of waste plastic recycling granulating machinery :

1. High automation level, try best to reduce your cost on labor (especially for three shifts) and ensure high processing capacity: 200-3500kg/hr
2. Friendly control system (PLC integrated & separated control on each machine) and Touch screen panel, easy for operation, monitor and emergency stop.
3. All parts contacting with plastic material and water are made of high-quality 304 stainless steel; Ensure no second pollution to flakes.
4. Ideal impurity removal effect.

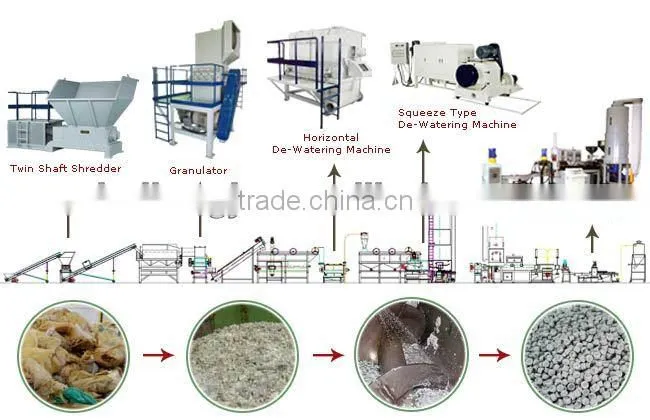

The processing procedure of waste plastic recycling granulating machinery is as following:



NO	ITEM	DESCRIPTION	SELECTIVITY
1	Pre-washer	Remove the solid impurity which are water insoluble, such as hand stone, sand, etc. It can also wash bottles' surface.	Optional
2	Bale Breaker	It is used in large capacity recycling line, and bottles are compressed in bale.	Optional
3	Belt Conveyor	Including the metal detector.	Necessay
4	Label Remover	Label removing efficiency, more than 98%	Optional
5	Manual Select Platform	Made according to workers' height, supply a suitable plate for selecting the left labels or some other impurity.	Optional
6	Belt Conveyor	Conveying the bottles into crusher.	Necessary
7	Crusher	With water, the materials of the blade adopt SKD-II or 9CrSi. It has a function of prewashing too.	Necessary
8	Screw Feeder	Conveying the flakes into friction washer.	Optional
9	Friction Washer	Scrubbing material in high-speed with water.	Optional
10	Screw Floating Washer	Remove few remand paper, sand, label from material based on different density.	Optional
11	Screw Feeder	Conveying the flakes into hot washer.	Necessary
12	Hot Washer	High temperature stirring washing with caustic soda. Water can be heated by steam or electric.	Necessary
13	Screw Feeder	Same as Item 8.	Necessary
14	Friction Washer	Same as Item 9.	Necessary
15	Screw Floating Washer	Same as Item 10.	Necessary
16	Dewatering Machine	High speed centrifuge drying.	Necessary
17	Drying System	Electric heating wind drying.	Necessary
18	Label Wind Separator	The last left impurity will be separated from flakes by the blower	Optional
19	Silo	Store the final material.	Necessary
20	Electrical Control Panel	Adopts Siemens and DELIXI as main component.	Necessary



  PELLETIZING

No.	Name	Qty
1.	Belt conveyer	1set
2.	Compactor   machine	1set
3.	single screw   extruder	1set
4.	Water-ring   cutting machine	1set
5.	Vibrate   screen	1set
6.	Dewatering   machine	1set
7.	Storage	1set

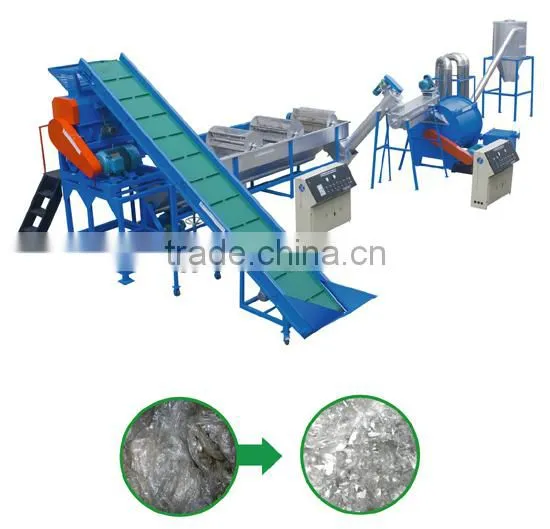

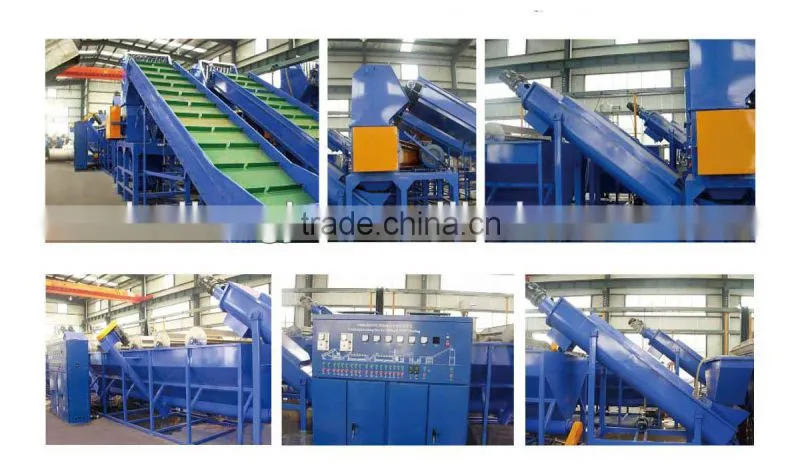

Picture of waste plastic recycling granulating machinery is as following:

standard seaworthy packaging for waste plastic recycling granulating machinery

film or wood case

optional by your requirement



1.Free repair within 1 year of guarantee on the condition of operate the machine in the right way,
  do not include the daily maintaining.

2. Our factory provide machine testing when customer come to our factory to see this machine.

3.We provide detail machine technical specification, electric diagram, installation book, operating manual, drawings

4.We can provide engineers to customer's factory to help installation and training workers if customer required.

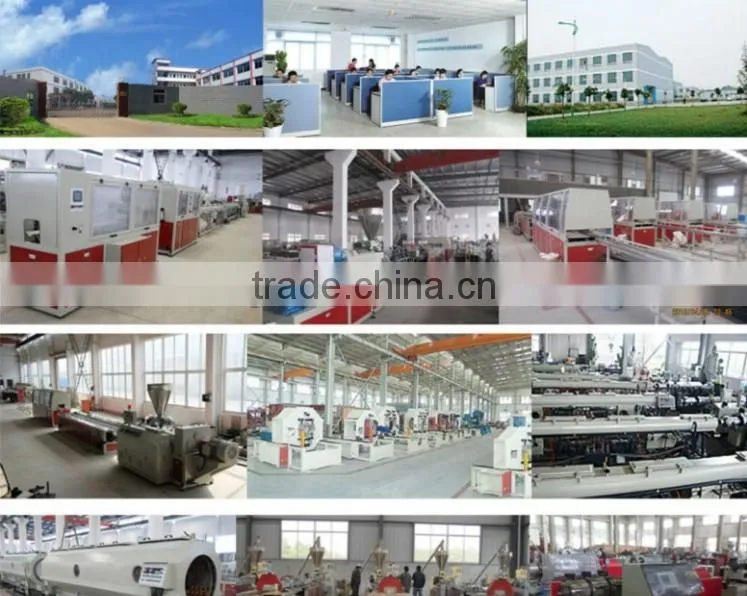

KAILONG MACHINERY professionally manufacture plastic machinery and waste plastic washing production lines, such as PET (bottle) flakes washing lines, PP/PE waste plastic film washing and granulating/palletizing production lines, pipes and shape pipes production lines, and various auxiliary machines.

Some suggestions for you:
In order to have a better understanding of your real need for shredder, It will be better if the following information could be provided before your inquiry.
1Which kind of material you are going to deal with? .PP? PE? HDPE? PET? PVC? or else. if you are not sure, pls send us the photos of your raw material.
2What are the physical characteristics of the material?Such as size,shape,thickness,solid
or hollow and etc.
3Do you have requirment for the capacity? from 100kg/h-3000kg/h
Please advise so we can figure out if our machines are applicable and which models
will meet your requirement.
