Home > Auto, Motorcycle Parts & Accessories > Vehicle Repair Equipment & Tools > Car Lift > CE Advanced 2 Levels Simple Parking Four Post Lift for Car Wash

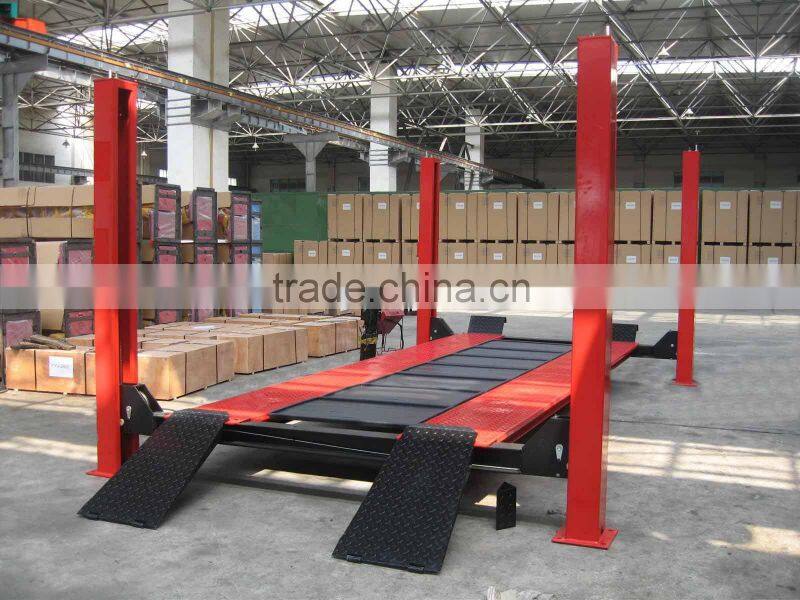

CE Advanced 2 Levels Simple Parking Four Post Lift for Car Wash

Name: CE Advanced 2 Levels Simple Parking Four Post Lift for Car Wash
Brand: Telian
SKU: 115219339
Availability: InStock

CE Advanced 2 Levels Simple Parking Four Post Lift for Car Wash thumbnail-1

CE Advanced 2 Levels Simple Parking Four Post Lift for Car Wash photo-1

US$ 1,500 - 1,800 MOQ: 1 Set

Key Specifications

Get Latest Price

Design:

Four Post

Type:

One Cylinder Hydraulic Lift

Certification:

Contact Supplier Request Quote Chat Now

Qingdao Telian Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Design Four Post

Type One Cylinder Hydraulic Lift

Certification CE

Lifting Capacity 3200kg

Lifting Height(mm) 1800mm

Overall Width(mm) 2357mm

Place of Origin Shandong, China

Brand Name Telian

Model Number PTJ601

Warranty 1 Years

Specifications

used 4 post car lifts for sale
1.Simple structure, easy installation
2.Minimal requirements for civil engineering

Company Information

FAQ

1.About Delivery Term

Q: What's the delivery term for making business with us?

A:Usually we send the shipments in FOB term.However, the terms of CIF and C&F are acceptable which depend of clients.

2.About Delivery Time

Q:What's the delivery time after placing the order?

A:Usually it takes 15-50 days after we received your down payment .However, it would depend on our production line schedule(the timing clients place order)and the complication of the item.

3.About Payment

Q: What's the payment?

A:By T/T, 50% is paid in advance; balance befor delivery .

4.About Min Order

Q:What's the min order?

A:1 set.

5.About Warranty

Q:What's the warranty?

A:1 year for free; after sales service for ever.

6.Common faults and maintenance methods:

Questions	Reasons	Solutions
The platform doesn’t rise ,Motor turns, no leakage of hydraulic oil	Air in the hydraulic oil	Non-load lifting to the apex ,need keeping some seconds then falling, stopped when falling to the middle, opened the oil connection to exhaust, then tighten.
	Low temperature made the hydraulic oil thickened	Anew replenish hydraulic oil
	Overloaded	Check and confirm the lifting weight is less than the rated load
Leakage hydraulic oil in the place of tubing joint	Joint loose	Screw down
Leakage hydraulic oil in the place of tubing joint	Joint was broken	Replace joint
Leakage hydraulic oil	Oil cylinder sealing ring was wear	Replace the oil cylinder and sealing ring
Motor do not turn	Motor burn out	Check and replace the motor
	The voltage is too low	Check and confirm the voltage for voltage regulation
	The fuse is bad	Replace fuse
	Limit switch is broken	Replace limit switch
Platform is not falling	Platform in the lock state	Control the platform rise and unlock, then control it falling
	The hydraulic oil is too thick	Replace hydraulic oil

4 Post parking lift PTJ 601

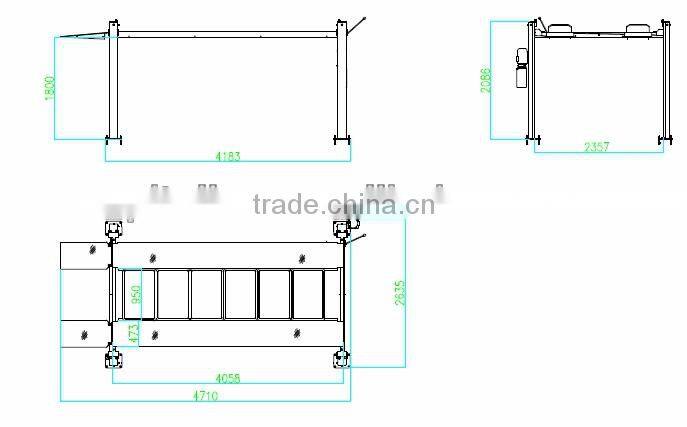

Drawing:

Specifications

Name	Four Post Parking Lift
Model	PTJ 601
Dimension	450027002086mm
Weight of parking car	3200kg
Rated speed	2.2 m/min
Lifting height	1800mm
Total height	2086mm
Width of post	2357mm
Motor	2.2kw
Warming devices	Yes
Mode of operate	Button / IC card / Remote key
Mode of control	Hydraulic control / PLC control
Mode of drive	Hydraulic driving, chain balance
Electrics	380v,3 phase; 220v single phase

Production Description:

·This parking system is designed of two spaces of up and down as one unit. The bottom car can go in and out directly. When the upper space needs to park a car, the car in the bottom should be driven out;

·Hydraulic drive, chain balancing device to ensure the balance both ends of rise and fall’;

·Low noise, smooth operation, save energy, low carbon and environmental protection;

·Vehicle loading pallet fully enclosed design, to avoid oil leakage, rain and snow

Polluting the lower vehicles;

·Spraying plastics, high anti-corrosion ability, long life. Electrical and driving parts with waterproof characteristics;

·Simple structure, easy installation, minimal requirements for civil engineering;

·It can be widely used in hotels, enterprises and public institutions and residential area.

Packaging & Shipping
