mori seiki CNC lathe for sale

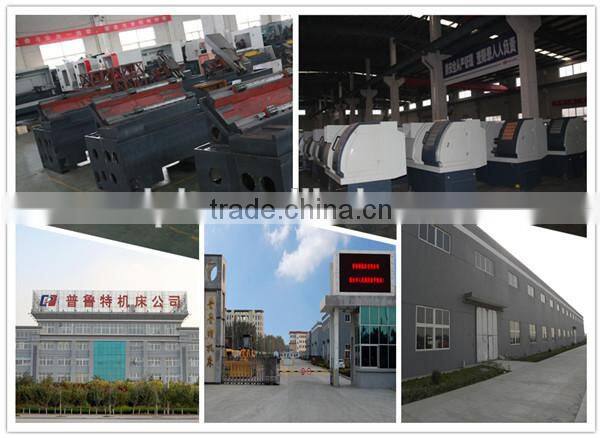

1.Factory covers 120,000 square meters, including casting,machinning,assemble 4 workshops, above
70 intermediate and senior technical personel.
2.Our casting workshop adopts lost foam to guarantee the size and precision of casting parts.
3.All the parts are performed heat treatment, natural failure, vibrating stress relief(VSR) to relieve
internal stresses.
4.All the guide surface are performed quenching, hardness is HRC45-52 degrees.
5.We implement assembly line,and the assemble workshop includes feed box team,gear box team,
worktable team,hydraulic unit team,scrabbing team,drilling hole team,power distrubition team,
daubing and painting team, test team and after-sale service team.
6.ERP infomation management makes our production and management more and more
standardization, networked and refinement.

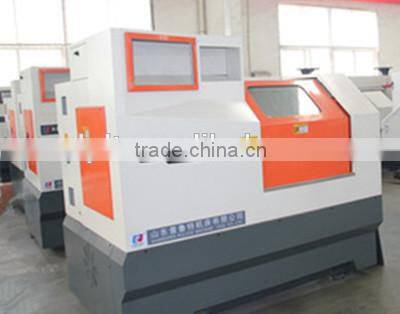

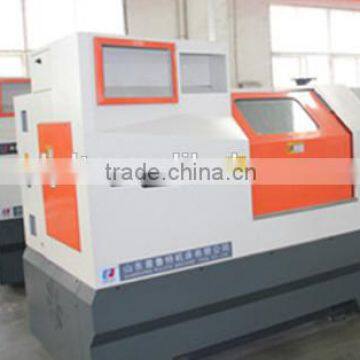

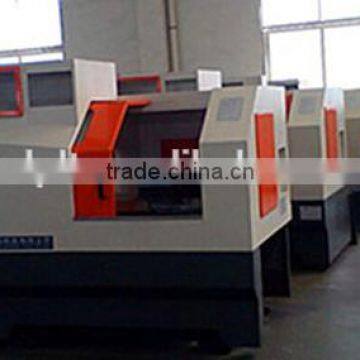

1. H6240 mori seiki CNC lathe for sale
| mori seiki CNC lathe for sale |
H6240 |
| Max. swing over bed | 400mm |
| max. swing over cross slide | 140mm |
| Collet | optional |
| Max. truning length | 250mm |
| chuck | 6" manual chuck |
| x axis | 360mm |
| z axis | 380mm |
| Guideway | Taiwan Hiwin Linear guideways |
| Spindle speed | 4000 rpm |
| Spindle nose | A2-5 |
| Thru-hole dia of spindle | 38mm |
| Fast moving speed | x:15m/min z:20m/min |
| Spindle motor | 5.5kw |
| x/z motor torque | 6/6 Nm |
| Tool bar section | 20*20mm |
| Tools | 4 tools gany type post |
| x/z position accuracy | 0.016/0.02 mm |
| x/z repeatability | 0.006/0.006mm |
| machine dimension | 2000*1300*1600mm |
| N.W. | 2200KG |
H6240 mori seiki CNC lathe for sale
GSK980TDC or Siemens 808d NC system
invertor motor 5.5kw
4 station gang type tool post
spring collet
automatic integrated lubrication system
coolant system
lighten system
H6240 mori seiki CNC lathe for sale
KND 1000Ti, Fanuc 0I MATE TD NC system
servo motor 5.5/7.5 kw
inverter 7.5 kw
4 station electric turret
6″Non-through hole hydraulic chuck
6″through hole hydraulic chuck
6″Non-through hole hydraulic chuck (Taiwan)
6″through hole hydraulic chuck(Taiwan)
Our Services
H6240 mori seiki CNC lathe for sale
1.Engineers are available to do oversea machinery service. In some countries, we have oversea agent doing after-sale service in time and professionally.
2.24 hours heart to heart service on-line or mobile.
3.Training in our factory and on-line are free of cost.
4.Warranty is 12 months, small broken parts are free of cost to replace, spare parts are delivered
with machine for customer convenience.
5.Best agent price and distributer price are offered.
Before order, please kindly inform the following,
1.Work piece max. length, max. O.D., material etc
2.Work piece drawings
3. Need cutters, clamping set or not
4.Customer service
