disc drum brake lathe machine
1.Factory covers 120,000 square meters, including casting,machinning,assemble 4 workshops, above
70 intermediate and senior technical personel.
2.Our casting workshop adopts lost foam to guarantee the size and precision of casting parts.
3.All the parts are performed heat treatment, natural failure, vibrating stress relief(VSR) to relieve
internal stresses.
4.All the guide surface are performed quenching, hardness is HRC45-52 degrees.
5.We implement assembly line,and the assemble workshop includes feed box team,gear box team,
worktable team,hydraulic unit team,scrabbing team,drilling hole team,power distrubition team,
daubing and painting team, test team and after-sale service team.
6.ERP infomation management makes our production and management more and more standardization,
networked and refinement.

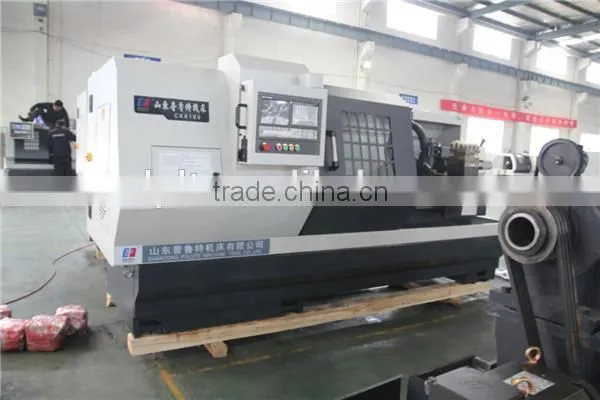

CK6150 disc drum brake lathe machine
CK6150 disc drum brake lathe machine specification
| disc drum brake lathe machine | CK6150 | |
| Capability | Max. swing dia. over bed | 500mm |
| Max. swing dia. over cross slide | 250mm | |
| Max. cutting dia. | 500mm | |
| Max. processing length | 850mm | |
| Spindle | Go-ball dia. of spindle | 82/130mm |
| Spindle taper | MT6# | |
| Spindle speed | 80-800/80-1500rpm | |
| Spindle nose | A2-8/11 | |
| Main motor power(Variable frequency) | 7.5Kw | |
| Transducer | 11Kw | |
| X/Z axis | X/Z travel | 300/900mm |
| X/Z mini setting unite | 0.001mm | |
| X/Z motor torque | 4/6N.m | |
| X/Z repeatability | 0.012/0.016mm | |
| X/Z rapid feeding speed | 5/10 m/min | |
| Tailstock | Tailstock sleeve dia. | 75mm |
| Tailstock sleeve strock | 140mm | |
| Tailstock taper | MT5# | |
| Tool holder | Type | 4-position electric type |
| Tool bar size | 25*25mm | |
| Tool holder repeatability | 0.004 | |
| Dimension | 2940*1300*1680mm | |
| Net weight | 28000kg | |

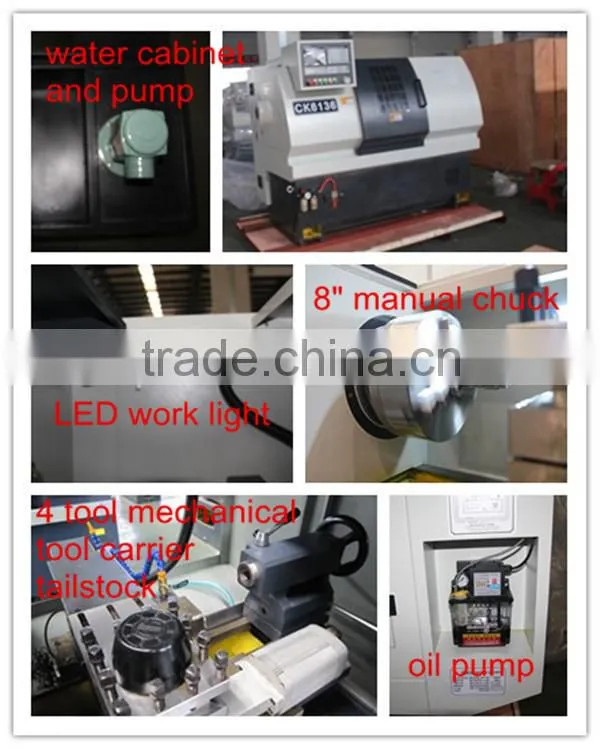

CK6150 disc drum brake lathe machine standard accessories
plete coolant system for ready use
plete lubrication system for ready use
3. LED work light
4. 10" three jaw manual chuck

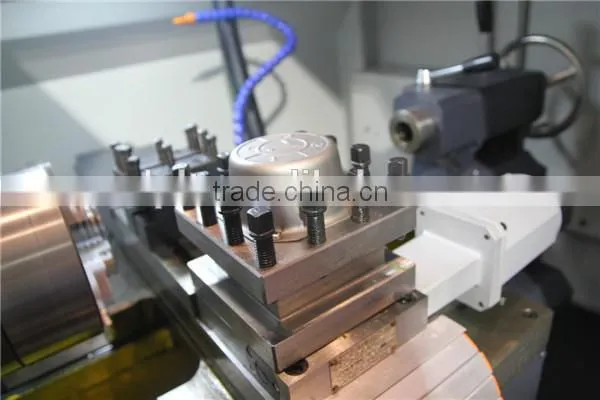

5. 4 tool electric tool carrier
6. manual tailstock

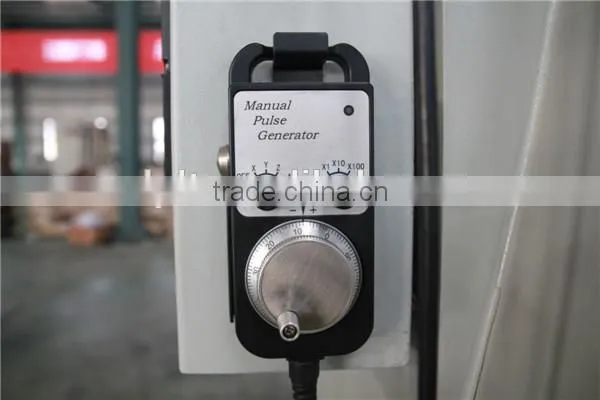

7.MPG
8. tool box and tools

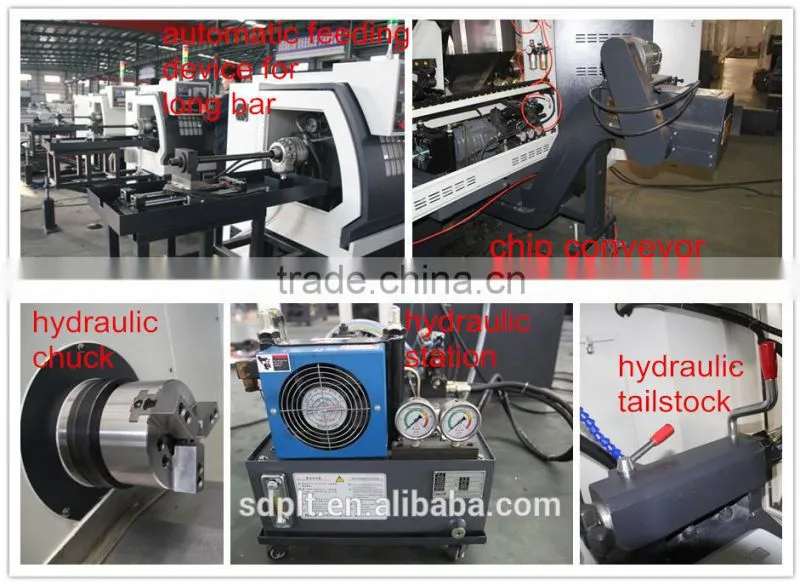

CK6150 disc drum brake lathe machine optional accessories
1. automatic feeding device for long bar work piece
2. chip conveyor
3. hydraulic chuck, hydraulic station, rotaty cylinder ( solid type or hollowed type)
4. steady rest
5. fellow rest
6. 6 tool electrical tool carrier
1.Engineers are available to do oversea machinery service. In some countries, we have oversea agent doing after-sale service in time and professionally.
2.24 hours heart to heart service on-line or mobile.
3.Training in our factory and on-line are free of cost.
4.Warranty is 12 months, small broken parts are free of cost to replace, spare parts are delivered with machine for customer convenience.
5.Best agent price and distributer price are offered.
CK6150 disc drum brake lathe machine packing and shipping
Before order, please kindly inform the following,
1.Work piece max. length, max. O.D., material etc
2.Work piece drawings
3. Need cutters, clamping set or not
4.Customer service
