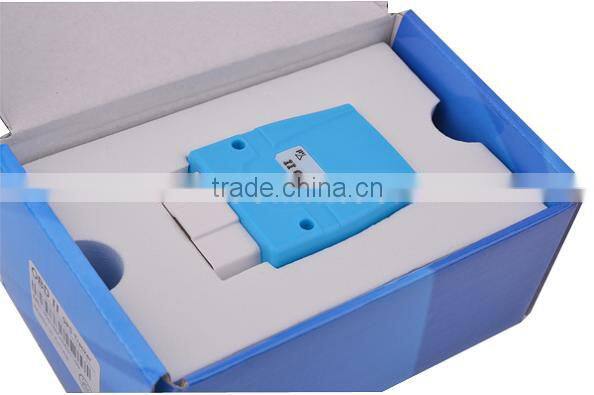

Help CenterGPS Tracker Mini OBD II Diagnostics Mini GPS Tracking Chip
Related Products
-
OBD GPS Tracker-0T10 OBD Vehicle Tracker GPS+GSM+SMS/GPRS+OBDNegotiableMOQ: 10 Pieces -
Tracker Gps Car Tracking System OT08 With OBD 2 Connector Without DiagnosticNegotiableMOQ: 10 Pieces
-
GPS Tracking Chip Car OBD2/ II GPS TrackerNegotiableMOQ: 10 Pieces
-
GPS Tracking Device OT08 With Auto Tracking Report Mode by Small Gps Transmitter ChipNegotiableMOQ: 10 Pieces
-
GOT08 Gps Signal Transmitter and Receiver GpsNegotiableMOQ: 10 Pieces
Specifications
1.Security & oil or electricity cut off2.Remote Vehicle Diagnostics System
3.Low voltage &Real time monitor
4.plug and play
GOT10 OBD GPS Tracker has a very wide range of industrial and commercial applications, OBD interface, OBD diagnostic, plug and play,Voltage detection ACC, can be trackered on the platfrom through computer & smart phone.
Typical application areas : logistics enterprises, fleet management, bus management, insurance , power , oil , telecommunications , taxi , car sales , car rental , vehicle maintenance , technology researchers, no need to wiring, especially for private car.
Real-Time GPS Tracking System software and tracking abilities, Eelink OBD II offers ability to obtain and transmit vehicle diagnostic information from On-Board Diagnostics port (OBD-II). Device plugs into and is powered by vehicle's OBD-II port, allowing uninterrupted GPS tracking. Also equipped as standard, motion sensor alerts users if car is moving when engine is turned off. Users can track their vehicles in real-time as well as gather diagnostic information. The OBD ii is a GPS Tracking Device provided by GPS Tracking Tracker that installs in the OBD ii port of any vehicle. The tracker will provide updates every one minute and runs off the car itself. The OBD tracker installs within seconds.
Never worry about battery life again with the OBD Real Time GPS Tracker! ALL vehicles model year 1996 and newer have an OBD II style data port located near the base of the steering column inside your car. Simply locate this port in your vehicle, plug in the OBD GPS and you're done! No wires, no antenna, this tracker literally installs in seconds! Easy to use interface with no download required. Just log into the website from any PC, Mac, Tablet, or phone Updating every 60 Seconds, this GPS tracker is perfect for fleet vehicle tracking or locating your teenager who borrowed your car.
Shenzhen Eelink is a manufacturer and exporter of GPS Trackers, OBD II GPS Tracker, OBD 2 Tracking, Car On-Board Diagnostics Tracking, Vehicle Tracking Devices, Personal Tracking device. We also offer mature GPS Tracking Solutions including vehicle tracking, personal security, and fleet management
Application
DRIVERS - Receive location, route and vehicle condition assistance automatically, anytime and anywhere.
TECHNICIANS - Remote vehicle diagnostics protects equipment and drivers.
OPERATIONS - Use real-time visibility to run operations more efficiently and safely.
DISPATCHERS - Plan and adjust routes more effectively and immediately.
SERVICE MANAGERS - Answer location inquiries faster and accurately.
RISK MANAGERS - Ensure regulatory compliance because unplanned incidents are reduced.
ACCOUNTANTS - Measure cost savings and increased customer satisfaction realized.
IT MANAGERS - Save valuable resources, with no demands on existing IT infrastructure or personnel.
EXECUTIVES - Increase value, through gains in productivity and utilization.
Cars Diagnostic System record function
Engine speed: RPM Accurate to 1RPM
Intake air pressure: MAP √
Caused by air temperature: CIA Accurate to 1 ° C
Launch from the load: LOD √
Throttle position: TPS √
Fuel pressure: FRP √
Ignition timing: ING Accurate to 0.1V
Battery voltage: VLT Accurate to 1 ° C
Fuel System Status: LP √
Water temperature: CWT Accurate to 1 ° C
Speed: KPH Accurate to 1KM/hr
Specifications
· GSM frequency : Quad-band 850/900/1800/1900 MHz
· Size : 66*48*25mm
· Weight: 55g
· Interface: OBD interface
· Data transmission: GPRS/SMS
· Positioning mode: GPS/AGPS
· Working voltage: 9-36V DC
· Internal battery: 3.7V/100mA Lithium battery
· Install: OBD II connector/Plug-in and play
· GPS channels: 50
· Sensitivity: -160dBm
· Positioning Accuracy : 10m
· Cold start: <32s
· Hot start : < 1s
· Protocol: TCP/IP
· Built-in GPS/GSM antennas
· Working temperature : -30 °C~ +70°C
· Storage temperature: -40 °C~ +85°C
· Humidity: 5%~95%
· Communication protocol:SMS, GPRS, TCP/UDP, USSD, FTP
· Normal currency:<100mA, 13.8VDC
. Max. currency:<150mA, 13.8VDC
. Sleep mode currency:<10mA,12VDC
This device plugs into a vehicle's OBDII port for ease of installation. An additional Y-cable allows you to place the device up under the dash for an even more covert option
GPS Tracking Diagnostics System
Detail picture
GPS Tracking System
1) Geo-fence Alarm
2)Add device with protocol you need
3)GPS tracking Statistics report
Office and Laboratory
Factory SMT Workshop
Factory Cable Assembly Workshop
Company Certificate
Focusing on products that are truly superior and innovative, Eelink has been awarded China National Hi-tech Enterprise and Software Enterpise, Certificate of Utility model Patent Certification, Eelink’s products have passed the international certification BV, SGS,D&B, Design Patent, CE, FCC, PAHs,CCC,etc.
