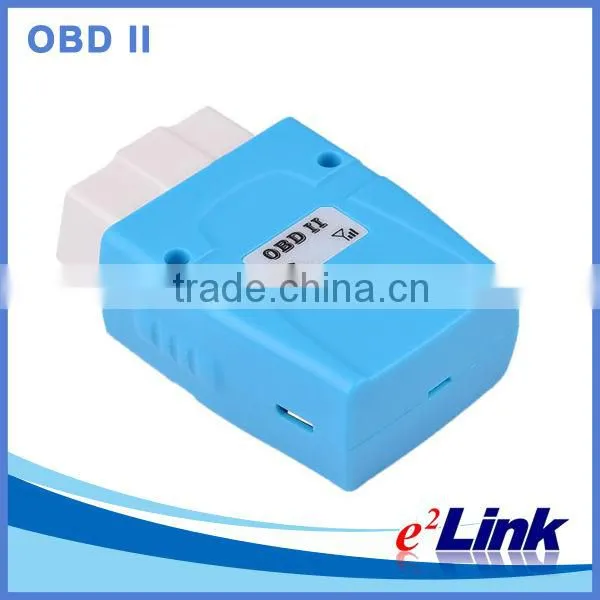

Help CenterOBD GPS TRACKER WITH GPRS PROTOCOL
Related Products
-
Factory OBD Tracker, Manufactory Obd Tracker OT08 for CarNegotiableMOQ: 10 Pieces -
GSM GPS VEHICLE GPS OBD TRACKERNegotiableMOQ: 10 Pieces
-
Cheapest Gps Tracking Device for VehicleNegotiableMOQ: 10 Pieces
-
Vehicle Tracker With Sensors Obdii OT08 Plug and Play Auto GPS TrackerNegotiableMOQ: 10 Pieces
-
Vehicle Device of Gps Tracker ObdNegotiableMOQ: 10 Pieces
Specifications
1.Resume broken transfer2.Tracking by time or distance
3.Fuel consumption detection
4.Plug-in and play
OBD, is an automotive term referring to a vehicle's self-diagnostic and reporting capability. OBD systems give the vehicle owner or repair technician access to the status of the various vehicle sub-systems. The amount of diagnostic information available via OBD has varied widely since its introduction in the early 1980s versions of on-board vehicle computers. Early versions of OBD would simply illuminate a malfunction indicator light or "idiot light" if a problem was detected but it would not provide any information as to the nature of the problem. Modern OBD implementations use a standardized digital communications port to provide real-time data in addition to a standardized series ofdiagnostic trouble codes, or DTCs, which allow one to rapidly identify and remedy malfunctions within the vehicle.
Car GPS Tracker with OBD II Device, which is designed for remote OBD diagnostic and tracking purposes. The OBD II device read the OBD parameters, such as fuel/temperaturer velocity meter data, engine/air bag/ABS error codes…then transmit the data to server through GPRS… it is good for cars maintenance/repair
Many business benefits include:
1. 4S car shop for maintenance routinely
2. Car rental realtime tracking & maintenance
3. Security & maintenance for private car owners
Shenzhen Eelink is a manufacturer and exporter of GPS Trackers, OBD II GPS Tracker, OBD 2 Tracking, Car On-Board Diagnostics Tracking, Vehicle Tracking Devices, Personal Tracking device. We also offer mature GPS Tracking Solutions including vehicle tracking, personal security, and fleet management
Application
DRIVERS - Receive location, route and vehicle condition assistance automatically, anytime and anywhere.
TECHNICIANS - Remote vehicle diagnostics protects equipment and drivers.
OPERATIONS - Use real-time visibility to run operations more efficiently and safely.
DISPATCHERS - Plan and adjust routes more effectively and immediately.
SERVICE MANAGERS - Answer location inquiries faster and accurately.
RISK MANAGERS - Ensure regulatory compliance because unplanned incidents are reduced.
ACCOUNTANTS - Measure cost savings and increased customer satisfaction realized.
IT MANAGERS - Save valuable resources, with no demands on existing IT infrastructure or personnel.
EXECUTIVES - Increase value, through gains in productivity and utilization.
Cars Diagnostic System record function
Engine speed: RPM Accurate to 1RPM
Intake air pressure: MAP √
Caused by air temperature: CIA Accurate to 1 ° C
Launch from the load: LOD √
Throttle position: TPS √
Fuel pressure: FRP √
Ignition timing: ING Accurate to 0.1V
Battery voltage: VLT Accurate to 1 ° C
Fuel System Status: LP √
Water temperature: CWT Accurate to 1 ° C
Speed: KPH Accurate to 1KM/hr
Specifications
· GSM frequency : Quad-band 850/900/1800/1900 MHz
· Size : 66*48*25mm
· Weight: 55g
· Interface: OBD interface
· Data transmission: GPRS/SMS
· Positioning mode: GPS/AGPS
· Working voltage: 9-36V DC
· Internal battery: 3.7V/100mA Lithium battery
· Install: OBD II connector/Plug-in and play
· GPS channels: 50
· Sensitivity: -160dBm
· Positioning Accuracy : 10m
· Cold start: <32s
· Hot start : < 1s
· Protocol: TCP/IP
· Built-in GPS/GSM antennas
· Working temperature : -30 °C~ +70°C
· Storage temperature: -40 °C~ +85°C
· Humidity: 5%~95%
· Communication protocol:SMS, GPRS, TCP/UDP, USSD, FTP
· Normal currency:<100mA, 13.8VDC
. Max. currency:<150mA, 13.8VDC
. Sleep mode currency:<10mA,12VDC
This device plugs into a vehicle's OBDII port for ease of installation. An additional Y-cable allows you to place the device up under the dash for an even more covert option
GPS Tracking Diagnostics System

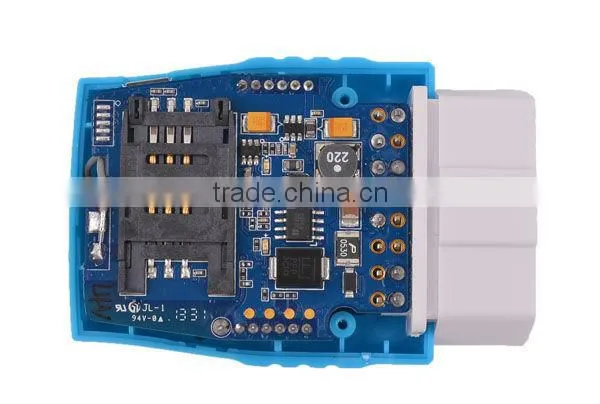

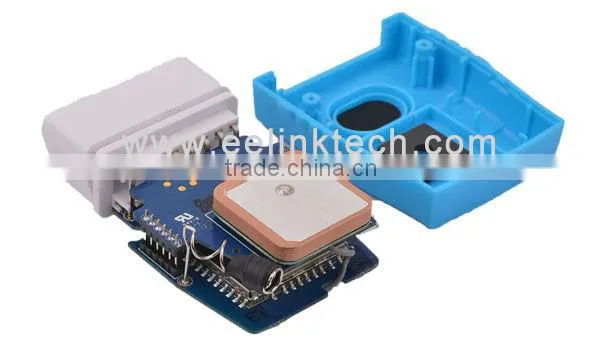

Detail picture
GPS Tracking System
1) Geo-fence Alarm
2)Add device with protocol you need
3)GPS tracking Statistics report
Office and Laboratory
Factory SMT Workshop
Factory Cable Assembly Workshop
Company Certificate
Focusing on products that are truly superior and innovative, Eelink has been awarded China National Hi-tech Enterprise and Software Enterpise, Certificate of Utility model Patent Certification, Eelink’s products have passed the international certification BV, SGS,D&B, Design Patent, CE, FCC, PAHs,CCC,etc.
