Specifications
1.Supports quad bands2.Web browser,phone APP and SMS query
3.Geo-fence Alarm
4.Plug-in and play
5.Tracks real-time

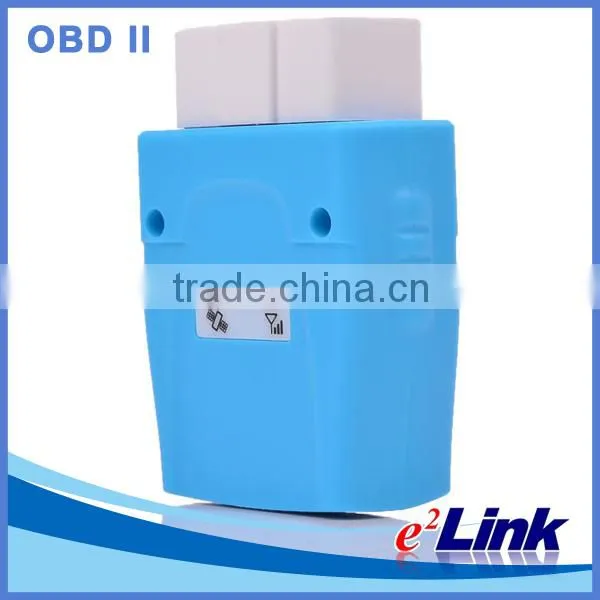

GOT10 OBD GPS Tracker has a very wide range of industrial and commercial applications, OBD interface, OBD diagnostic, plug and play,Voltage detection ACC, can be trackered on the platfrom through computer & smart phone.
Application
DRIVERS - Receive location, route and vehicle condition assistance automatically, anytime and anywhere.
TECHNICIANS - Remote vehicle diagnostics protects equipment and drivers.
OPERATIONS - Use real-time visibility to run operations more efficiently and safely.
DISPATCHERS - Plan and adjust routes more effectively and immediately.
SERVICE MANAGERS - Answer location inquiries faster and accurately.
RISK MANAGERS - Ensure regulatory compliance because unplanned incidents are reduced.
ACCOUNTANTS - Measure cost savings and increased customer satisfaction realized.
IT MANAGERS - Save valuable resources, with no demands on existing IT infrastructure or personnel.
EXECUTIVES - Increase value, through gains in productivity and utilization.
Cars Diagnostic System record function
Engine speed: RPM Accurate to 1RPM
Intake air pressure: MAP √
Caused by air temperature: CIA Accurate to 1 ° C
Launch from the load: LOD √
Throttle position: TPS √
Fuel pressure: FRP √
Ignition timing: ING Accurate to 0.1V
Battery voltage: VLT Accurate to 1 ° C
Fuel System Status: LP √
Water temperature: CWT Accurate to 1 ° C
Speed: KPH Accurate to 1KM/hr
Specifications
· GSM frequency : Quad-band 850/900/1800/1900 MHz
· Size : 66*48*25mm
· Weight: 55g
· Interface: OBD interface
· Data transmission: GPRS/SMS
· Positioning mode: GPS/AGPS
· Working voltage: 9-36V DC
· Internal battery: 3.7V/100mA Lithium battery
· Install: OBD II connector/Plug-in and play
· GPS channels: 50
· Sensitivity: -160dBm
· Positioning Accuracy : 10m
· Cold start: <32s
· Hot start : < 1s
· Protocol: TCP/IP
· Built-in GPS/GSM antennas
· Working temperature : -30 °C~ +70°C
· Storage temperature: -40 °C~ +85°C
· Humidity: 5%~95%
· Communication protocol:SMS, GPRS, TCP/UDP, USSD, FTP
· Normal currency:<100mA, 13.8VDC
. Max. currency:<150mA, 13.8VDC
. Sleep mode currency:<10mA,12VDC
This device plugs into a vehicle's OBDII port for ease of installation. An additional Y-cable allows you to place the device up under the dash for an even more covert option
GPS Tracking Diagnostics System
Detail picture
GPS Tracking System
1) Geo-fence Alarm
2)Add device with protocol you need
3)GPS tracking Statistics report
Office and Laboratory
Factory SMT Workshop
Factory Cable Assembly Workshop
Company Certificate
Focusing on products that are truly superior and innovative, Eelink has been awarded China National Hi-tech Enterprise and Software Enterpise, Certificate of Utility model Patent Certification, Eelink’s products have passed the international certification BV, SGS,D&B, Design Patent, CE, FCC, PAHs,CCC,etc.
