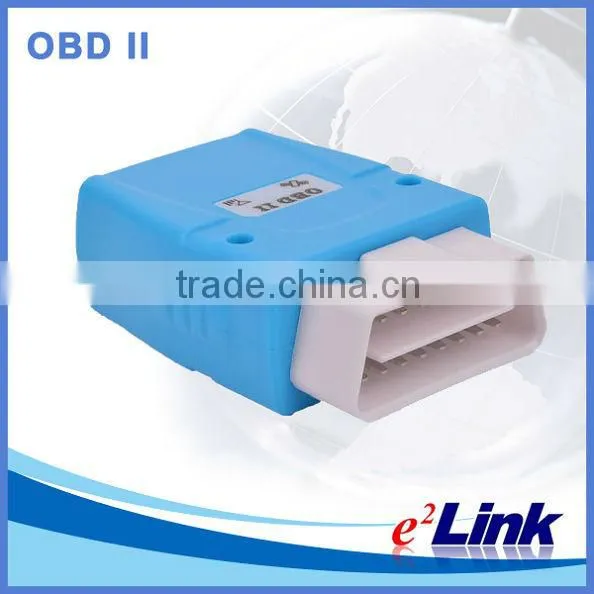

Mini gps gsm tracker obd ii car tracking deivce
- 100000 Piece / Pieces per Month
- shenzhen
- T/T Credit Card
- Fashionable Smart Personal Watch GPS Tracker with OLED Screen 108
- Smart GPS Watch Tracker/Personal GPS Tracker with Geo-Fence and Voice Talking for Children and Elder
- Manufacturer Wholesale 3G MINI Smart Watch GPS with Dual-Way Calling & SOS
- GPS Kids Mobile Watch with Dual-Way Calling & Sos / LBS GPS Tracking
- Best Selling GPS Kids Tracker with SIM Card Slot / LBS GPS Tracking Smart Watch for kids
- Kids Wrist Watch GPS Tracking Device / LBS GPS Tracking smart watch gps watch for kids
Product Details
Type: | Gps Tracker | Use: | Automotive | Screen Size: | Other, None |
Function: | Other, Vehicle and Vehicle tracking | Place of Origin: | Guangdong, China | Brand Name: | eelink |
Model Number: | OBD II |
Product Description
Specifications
1.Plug-and-play design2.Compliant with all cars with OBD II
3.Diagnostic system
4.Disassemble alarm
5.GPS tracking logger
Shenzhen Eelink is a manufacturer and exporter of GPS Trackers, OBD II GPS Tracker, OBD 2 Tracking, Car On-Board Diagnostics Tracking, Vehicle Tracking Devices, Personal Tracking device. We also offer mature GPS Tracking Solutions including vehicle tracking, personal security, and fleet management
Using GOT10 GPS tracker, we can position,monitor the vehicle including OBD data on the position server via GPRS,GPS and Internet. It can help customers to manage transparently,reduce cost,maintain security and raise efficiency. Now it is widely used in business traffic, logistics distribution,automobile lease, intelligent transportation, shipping market,army and police,rescuing,Safety Supervision,Intelligent city…
How to find your OBDII Connector
Start by looking around the underside of your dashboard, below your steering wheel but above your gas and brake pedals. The diagram below will show you the general area to search.
The connector may be covered by a small flap, but will usually be visible without requiring any disassembly. Once you believe you have located the OBDII connector, compare it to the picture below.
Installing the OBDII-GPS
Once the OBDII connector has been located, all that is required is to plug the OBDII-GPS into the connector. Once you turn the ignition of the vehicle on, the small lights on the unit will blink. During your first installation, you will need to give the OBDII-GPS unit a minimum of 15 minutes fully initialize.
Application
DRIVERS - Receive location, route and vehicle condition assistance automatically, anytime and anywhere.
TECHNICIANS - Remote vehicle diagnostics protects equipment and drivers.
OPERATIONS - Use real-time visibility to run operations more efficiently and safely.
DISPATCHERS - Plan and adjust routes more effectively and immediately.
SERVICE MANAGERS - Answer location inquiries faster and accurately.
RISK MANAGERS - Ensure regulatory compliance because unplanned incidents are reduced.
ACCOUNTANTS - Measure cost savings and increased customer satisfaction realized.
IT MANAGERS - Save valuable resources, with no demands on existing IT infrastructure or personnel.
EXECUTIVES - Increase value, through gains in productivity and utilization.
Cars Diagnostic System record function
1.Supports quad bands,
i.e. 850/900/1800/1900MHz,
universal in the world.
2.Easy to install, connect the OBD interface to work.
3.Supports single positioning and feedbacks position via GPRS at setting times.
4.Supports vehicle positioning and tracking.
5.Vehicle status and speed from OBD data is better than ACC.
6.Vehicle collision, falling alarm by SMS/Platform (optional).
Environment for use
1.Limited working temperature:-20°C~80°C
2.Storage temperature:-45°C~90°C
3.Humidity:<95%
4.Make sure the terminal is installed in OBD2 interface of the vehicle
Basic Specifications:
Working Voltage: | 12VDC/24VDC |
Standby Current | <3mA |
Work current : | <120mA |
GPS positioning accuracy | 15M |
GSM positioning accuracy | 100M |
GPS Frequency | 1575MHz |
GSM Frequency : | 850/900/1800/1900MHz |
Hot/warm/cold start time : | <3S,<1S,<60S |
Dimensions (mm) L*W*H : | L*W*H: 56.5 X 47 X 24.6 |
Weight : | 45 g |
This device plugs into a vehicle's OBDII port for ease of installation. An additional Y-cable allows you to place the device up under the dash for an even more covert option
GPS Tracking Diagnostics System
Detail picture
GPS TRACKING SYSTEM
1) Geo-fence Alarm
2)Add device with protocol you need
3)GPS tracking Statistics report
4)GPS tracking history playback
5)Vehicle OBD parameters Report
Office and Laboratory
Factory SMT Workshop
Factory Cable Assembly Workshop
Company Certificate
Focusing on products that are truly superior and innovative, Eelink has been awarded China National Hi-tech Enterprise and Software Enterpise, Certificate of Utility model Patent Certification, Eelink’s products have passed the international certification BV, SGS,D&B, Design Patent, CE, FCC, PAHs,CCC,etc.
