How Monitoring Driving Behavior Works Using GPS Tracking

Specifications

Shenzhen Eelink is a manufacturer and exporter of GPS Trackers, Vehicle Tracking Devices, Personal Tracking device. We also offer mature GPS Tracking Solutions including vehicle tracking, personal security, and fleet management

1.Smart, lightweight, free installation, plug and play;
2.Widely applicable models: all vehicles follow the OBDII standard protocol;
3.Automatic data storage, data is not lost when power failure ;
4.Data saved locally for 500 hours, and supports remote storage; software updates, hardware set flexible;
5.Professional remote fault diagnosis;

This units can be used in any vehicle manufactured since 1996. Parents of young drivers, auto rental companies, and driver education schools can use this unit to identify unsafe driving habits, such as rapid acceleration, hard braking, or speeding. Drivers receive constructive feedback on their “behind the wheel” habits, which encourages them to improve their driving and help reduce vehicle maintenance costs, fuel costs, and pollution. Using the OBD II system can identify potential risks before they become expensive problems

Cars Diagnostic System record function

Engine speed: RPM  Accurate to 1RPM

Intake air pressure: MAP  √

Caused by air temperature: CIA  Accurate to 1 ° C

Launch from the load: LOD √

Throttle position: TPS √

Fuel pressure: FRP √

Ignition timing: ING Accurate to 0.1V

Battery voltage: VLT  Accurate to 1 ° C

Fuel System Status: LP √

Water temperature: CWT Accurate to 1 ° C

Speed: KPH Accurate to 1KM/hr

Specifications

· GSM frequency : Quad-band 850/900/1800/1900 MHz

· Size :  66*48*25mm
· Weight:  55g
· Interface: OBD interface
· Data transmission: GPRS/SMS
· Positioning mode: GPS/AGPS
· Working voltage: 9-36V DC
· Internal battery: 3.7V/100mA Lithium battery

· Install: OBD II connector/Plug-in and play
· GPS channels: 50
· Sensitivity: -160dBm
· Positioning Accuracy : 10m
· Cold start: <32s
· Hot start : < 1s

· Protocol: TCP/IP
· Built-in GPS/GSM antennas
· Working temperature :   -30 °C~ +70°C
· Storage temperature: -40 °C~ +85°C

· Humidity: 5%~95%

· Communication protocol:SMS, GPRS, TCP/UDP, USSD, FTP

· Normal currency:<100mA, 13.8VDC
. Max. currency:<150mA, 13.8VDC
. Sleep mode currency:<10mA,12VDC

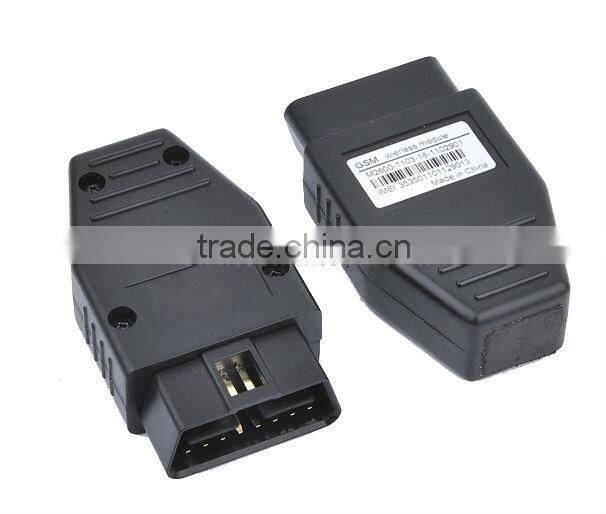

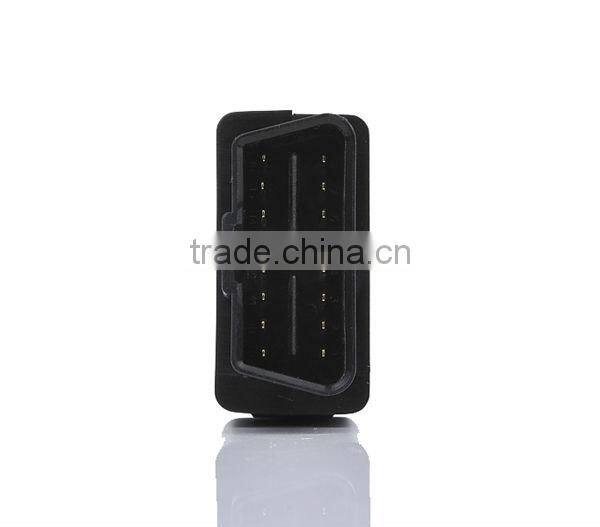

This device plugs into a vehicle's OBDII port for ease of installation. An additional Y-cable allows you to place the device up under the dash for an even more covert option
