China Guangdong wholesale micro gps transmitter tracker with Free Monitor Software

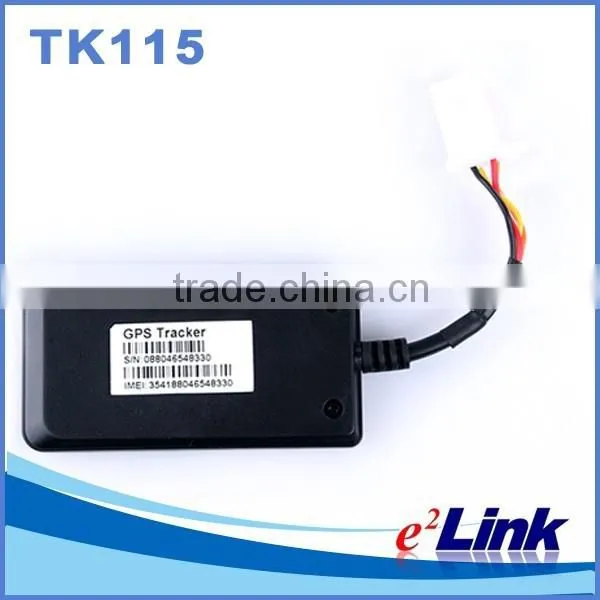

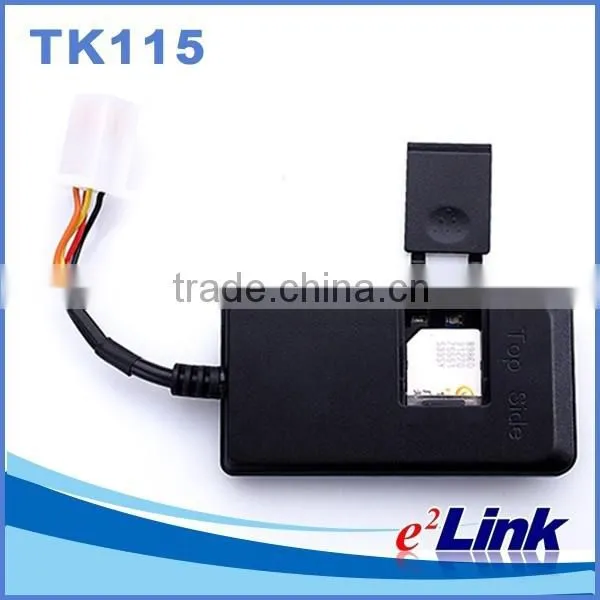

TK115 micro gps transmitter tracker have a very wide range of industrial and civil applications,global
minimum volume of high-performance GPS tracker, super wide voltage range 9-60 v,remote
location, cutting oil, remote mobile phone, computer checking their position at any time.
Typical application industry are: logistics enterprises, the management team, the bus management,
insurance companies, power companies, oil companies, telecommunications companies,
taxi companies, car sales, car rental company scale, less-than-one carload leasing companies, auto
car drives, small and medium-sized enterprise team, vehicle maintenance and repair personnel, automotive technology researchers, individual owners
Product Features
1.Supports quad bands,i.e. 850/900/1800/1900MHz,universal in the world.
2.Wide Input Voltage:9-60V DC.
3.GPS precise positioning with A-GPS and uploaded by GPRS regularly, Supports
real-time tracking and history track playback.
4.Web browser platform, Smart phone app platform and SMS query.
5.Supports multiple alarm,acceleration sensor can be added (B models, optional component),
so as increase vibration, collision and falling alarm.
6.Supports ACC status checking and vehicle status notifying.
7.Use relay to remotely control the vehicle..
8.GPRS remote upgrade program.
ALARM TYPE:
1.Vibration Alarm(Optional)
2.Collision / falling Alarm(Optional)
3. Speed Alarm
4.Geo-fence Alarm

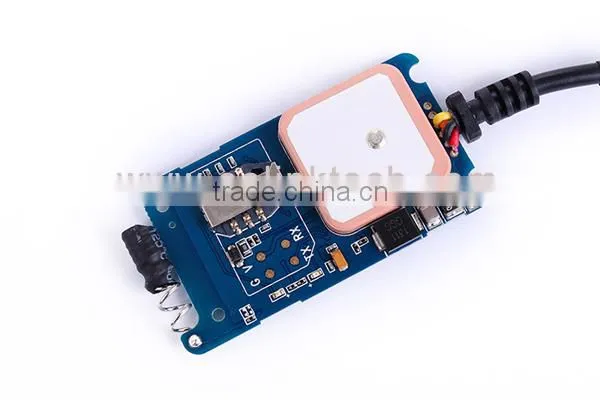

Detail picture
Environment for use
1.Limited working temperature:-20°C~80°C
2.Storage temperature:-45°C~90°C
3.Humidity:<95%
4.Atmospheric pressure:86kPa~106kPa
5.Make sure the terminal is installed in rainproof
and snow-proof places.
Basic Specifications:
Voltage: 12VDC/24VDC
Standby : Current <3mA
Work current : <30mA
GPS positioning accuracy : 15m
GSM positioning accuracy : 100m
GPS Frequency : 1575MHz
GSM Frequency : 850/900/1800/1900MHz
Hot/warm/cold start time : <3s,<15s,<60s
Dimensions (mm) L*W*H : 71.5X38.5X10.5
Weight : 40g
Main function
| Brand | Eelink |
| Model | TK115 |
| Quantity | 1 piece(s) |
| Color | Black |
| Material | ABS |
| Network | GSM |
| Band | 85090018001900 MHz |
| SIM Card Qty. | one SIM |
| Emergency Phone Number Qty. | 3 |
| Tracking Information Method | Monitoring and controlling platform |
| Power Supply | DC 6~36V |
| GPS Chip | SIRF |
| GPS Sensitivity | -163 dB |
| GPS Channel | 20 |
| Position Accuracy | 10 m |
| Altitude Limit | 18000 m |
| Hot Start | 3 seconds |
| Warm Start | 15 seconds |
| Cold Start | 60 seconds |
| Geo-fence | Yes |
| Vibrating Alerts | Yes |
| Remote Monitoring | Yes |
| Engine Cut Off | Yes |
| Realtime Monitoring | Yes |
| Track Playback | Yes |
| ACC Anti-Theft | Yes |
| Overspeed Alerts | Yes |
| Low Battery Alerts | Yes |
| GPS Blind Area Alarm | Yes |
| Voice Call | No |
| Waterproof Function | Yes |
| Waterproof Rate | Daily user water resistant |
| Working Temperature | -35~75'C |
| Working Humidity | 5%~95% |
| Manufacturer's Warranty | 12 Months excluding physical damages (see specifications for terms and details) |
| Certification | CE |
GPS TRACKING SYSTEM
Package
| Packing List | 1 x GPS (5cm) |
| 1 x Power cable (100cm) | |
| 1 x English user manual | |
| 1 x Chinese / English instruction manual |
Accessories
Shenzhen Eelink Communication Co. Ltd was founded in June 2004 aiming at technology Innovative. After 10 years development, we accumulate more and more experienced experts and senior engineers specializing in Internet Platform/APP/GPS trackers. Now we have a professional technology team engaged in software, hardware and industrial design, totally more than 50 engineers. This professional team guarantee technology advancement for Eelink products. Meanwhile we have advanced management system, complete QC and QA systems as well as strict testing methods to guarantee high quality.
Shenzhen Eelink Communication Co. Ltd can provide: GPRS+GPS tracker, WCDMA+GPS tracker, GPRS+Beidou tracker, Plug-in and play OBD vehicle tracker, Plug-in and play OBD diagnostics vehicle tracker, intelligent terminal for real time temperature and humidity checking. Our products are widely used in positioning and tracking vehicle, personal, pet and assets. This will realize the management for vehicle, person and cargo meanwhile the complete care for the elder and child. Eelink can truly understand your specific needs and complete different clients' Requirements in terms of new designs, high quality and large production, you will also enjoy the service of internet platform and smart phone APP for your GPS tracker.
We hold the faith to meet every customer' S needs to gain 100% customer satisfaction on quality products and after-sale service.
Office and Laboratory
Factory SMT Workshop
Factory Cable Assembly Workshop
Company Certificate
Focusing on products that are truly superior and innovative, Eelink has been awarded China National Hi-tech Enterprise and Software Enterpise, Certificate of Utility model Patent Certification, Eelink’s products have passed the international certification BV, SGS,D&B, Design Patent, CE, FCC, PAHs,CCC,etc.
