Specifications
1.High Definition GPS Tracking2.Remote Vehicle Diagnostics System
3.Low voltage monitor
4.Vehicle Fleet Management System
Shenzhen Eelink is a manufacturer and exporter of GPS Trackers, Vehicle Tracking Devices, Personal Tracking device. We also offer mature GPS Tracking Solutions including vehicle tracking, personal security, and fleet management
The OBD II turns traditional GPS fleet tracking into a high-return platform. It provides real-time transmission of data including vehicle tracking, vehicle subsystem, spatially encoded events, and driver performance. OBDII-captured telematics data with information including workflow outcomes, pre- and post-trip inspections and time/attendance data, so fleets have one powerful and affordable platform
Application
DRIVERS - Receive location, route and vehicle condition assistance automatically, anytime and anywhere.
TECHNICIANS - Remote vehicle diagnostics protects equipment and drivers.
OPERATIONS - Use real-time visibility to run operations more efficiently and safely.
DISPATCHERS - Plan and adjust routes more effectively and immediately.
SERVICE MANAGERS - Answer location inquiries faster and accurately.
RISK MANAGERS - Ensure regulatory compliance because unplanned incidents are reduced.
ACCOUNTANTS - Measure cost savings and increased customer satisfaction realized.
IT MANAGERS - Save valuable resources, with no demands on existing IT infrastructure or personnel.
EXECUTIVES - Increase value, through gains in productivity and utilization.
Cars Diagnostic System record function
1.Supports quad bands,
i.e. 850/900/1800/1900MHz,
universal in the world.
2.Easy to install, connect the OBD interface to work.
3.Supports single positioning and feedbacks position via GPRS at setting times.
4.Supports vehicle positioning and tracking.
5.Vehicle status and speed from OBD data is better than ACC.
6.Vehicle collision, falling alarm by SMS/Platform (optional).
Environment for use
1.Limited working temperature:-20°C~80°C
2.Storage temperature:-45°C~90°C
3.Humidity:<95%
4.Make sure the terminal is installed in OBD2 interface of the vehicle
Basic Specifications:
Working Voltage: |
12VDC/24VDC |
Standby Current |
<3mA |
Work current : |
<120mA |
GPS positioning accuracy |
15M |
GSM positioning accuracy |
100M |
GPS Frequency |
1575MHz |
GSM Frequency : |
850/900/1800/1900MHz |
Hot/warm/cold start time : |
<3S,<1S,<60S |
Dimensions (mm) L*W*H : |
L*W*H: 56.5 X 47 X 24.6 |
Weight : |
45 g |

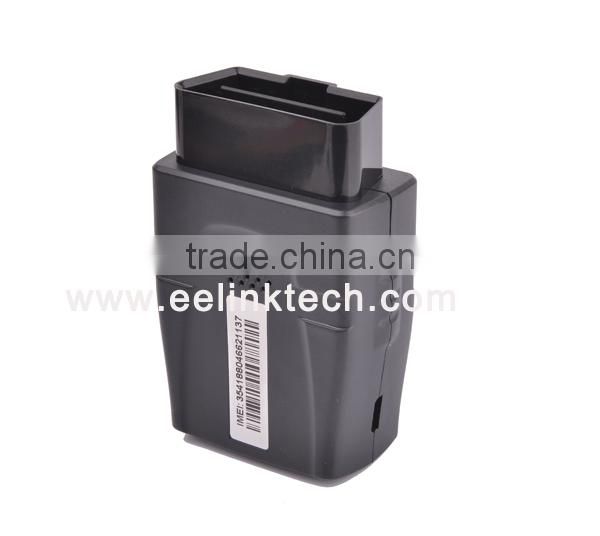

This device plugs into a vehicle's OBDII port for ease of installation. An additional Y-cable allows you to place the device up under the dash for an even more covert option
GPS Tracking Diagnostics System

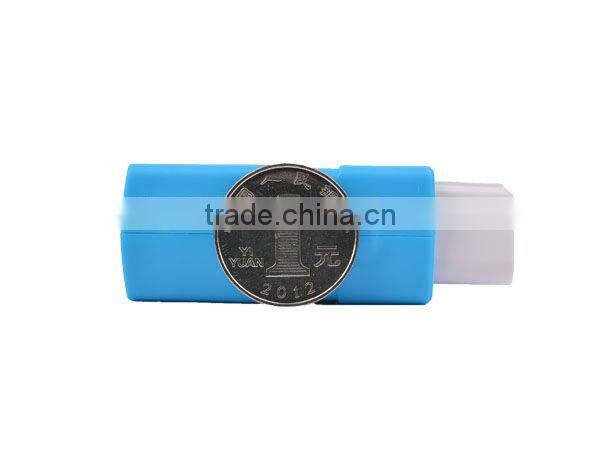

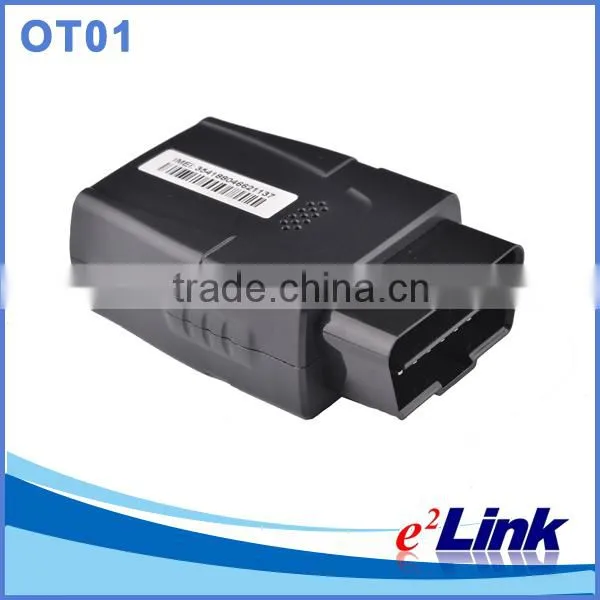

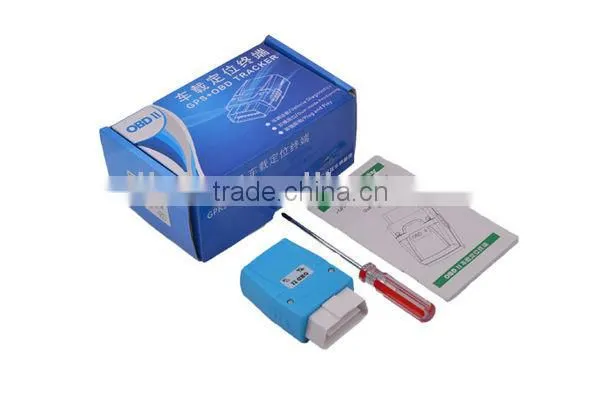

Detail picture
GPS TRACKING SYSTEM
1) Geo-fence Alarm
2)Add device with protocol you need
3)GPS tracking Statistics report
4)GPS tracking history playback
5)Vehicle OBD parameters Report
Office and Laboratory
Factory SMT Workshop
Factory Cable Assembly Workshop
Company Certificate
Focusing on products that are truly superior and innovative, Eelink has been awarded China National Hi-tech Enterprise and Software Enterpise, Certificate of Utility model Patent Certification, Eelink’s products have passed the international certification BV, SGS,D&B, Design Patent, CE, FCC, PAHs,CCC,etc.
