Specifications

1.OBD II connector/Plug-in and play
2.Use as a temporary tracking system
3.Supports quad bands
4.Transferable different fleet



Shenzhen Eelink is a manufacturer and exporter of GPS Trackers, OBD II GPS Tracker, OBD 2 Tracking, Car On-Board Diagnostics Tracking, Vehicle Tracking Devices, Personal Tracking device. We also offer mature GPS Tracking Solutions including vehicle tracking, personal security, and fleet management



 Application

DRIVERS - Receive location, route and vehicle condition assistance automatically, anytime and anywhere.
TECHNICIANS - Remote vehicle diagnostics protects equipment and drivers.
OPERATIONS - Use real-time visibility to run operations more efficiently and safely.
DISPATCHERS - Plan and adjust routes more effectively and immediately.
SERVICE MANAGERS - Answer location inquiries faster and accurately.
RISK MANAGERS - Ensure regulatory compliance because unplanned incidents are reduced.
ACCOUNTANTS - Measure cost savings and increased customer satisfaction realized.
IT MANAGERS - Save valuable resources, with no demands on existing IT infrastructure or personnel.
EXECUTIVES - Increase value, through gains in productivity and utilization.





Cars Diagnostic System record function

 1.Supports quad bands,

i.e. 850/900/1800/1900MHz,

universal in the world.



2.Easy to install, connect the OBD interface to work.



3.Supports single positioning and feedbacks position via GPRS at setting times.



4.Supports vehicle positioning and tracking.



5.Vehicle status and speed from OBD data is better than ACC.



6.Vehicle collision, falling alarm by SMS/Platform (optional).



Environment for use



1.Limited working temperature:-20°C~80°C



2.Storage temperature:-45°C~90°C



3.Humidity:<95%



4.Make sure the terminal is installed in OBD2 interface of the vehicle



Basic Specifications:





Working Voltage:	12VDC/24VDC
Standby Current	<3mA
Work current :	<120mA
GPS positioning accuracy	15M
GSM positioning accuracy	100M
GPS Frequency	1575MHz
GSM Frequency :	850/900/1800/1900MHz
Hot/warm/cold start time :	<3S,<1S,<60S
Dimensions (mm) L*W*H :	L*W*H:   56.5 X 47 X 24.6
Weight :	45 g

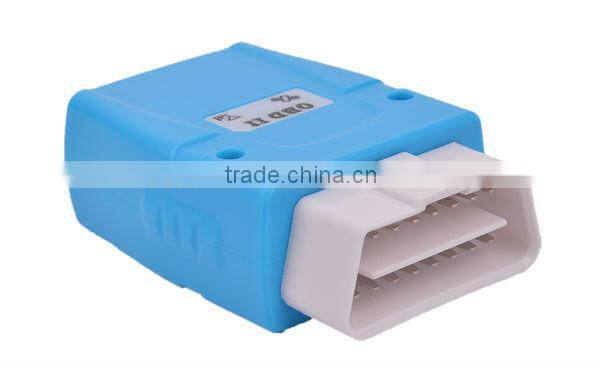

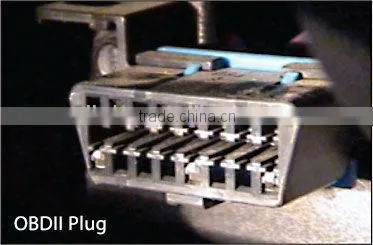

This device plugs into a vehicle's OBDII port for ease of installation. An additional Y-cable allows you to place the device up under the dash for an even more covert option





GPS Tracking Diagnostics System

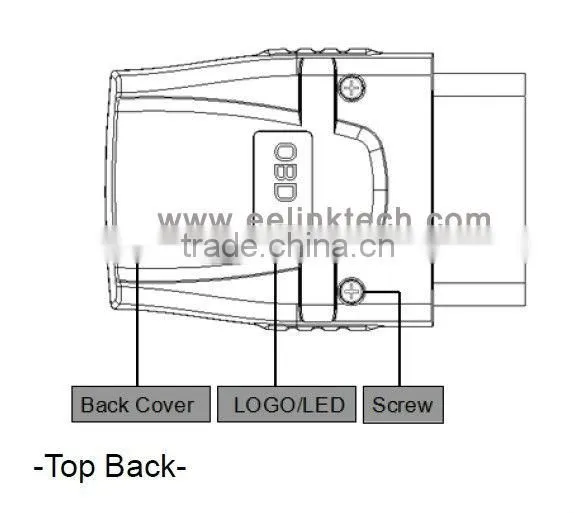

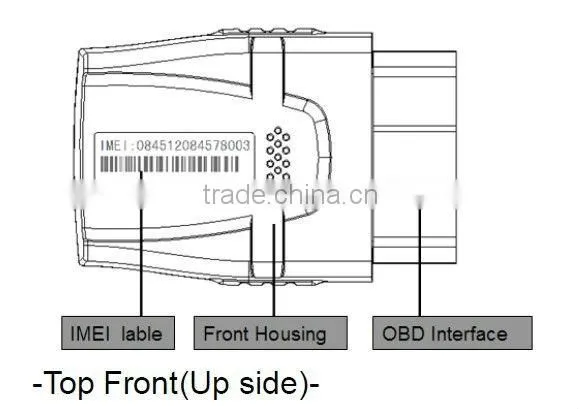

Detail picture





GPS Tracking System

1) Geo-fence Alarm





2)Add device with protocol you need







3)GPS tracking Statistics report







Office and Laboratory





Factory SMT Workshop





Factory Cable Assembly  Workshop







Company Certificate

Focusing on products that are truly superior and innovative, Eelink has been awarded China National Hi-tech Enterprise and Software Enterpise, Certificate of Utility model Patent Certification, Eelink’s products have passed the international certification BV, SGS,D&B, Design Patent, CE, FCC, PAHs,CCC,etc.
