OBD Tracker Manufacturer China

Specifications

Teen drivers and new drivers
Track Family members for safety purposes
Use as a vehicle recovery system similar to LoJack



Shenzhen Eelink is a manufacturer and exporter of GPS Trackers, OBD II GPS Tracker, OBD 2 Tracking, Car On-Board Diagnostics Tracking, Vehicle Tracking Devices, Personal Tracking device. We also offer mature GPS Tracking Solutions including vehicle tracking, personal security, and fleet management





Application



DRIVERS - Receive location, route and vehicle condition assistance automatically, anytime and anywhere.
TECHNICIANS - Remote vehicle diagnostics protects equipment and drivers.
OPERATIONS - Use real-time visibility to run operations more efficiently and safely.
DISPATCHERS - Plan and adjust routes more effectively and immediately.
SERVICE MANAGERS - Answer location inquiries faster and accurately.
RISK MANAGERS - Ensure regulatory compliance because unplanned incidents are reduced.
ACCOUNTANTS - Measure cost savings and increased customer satisfaction realized.
IT MANAGERS - Save valuable resources, with no demands on existing IT infrastructure or personnel.
EXECUTIVES - Increase value, through gains in productivity and utilization.





Cars Diagnostic System record function



Engine speed: RPM  Accurate to 1RPM

Intake air pressure: MAP  √

Caused by air temperature: CIA  Accurate to 1 ° C

Launch from the load: LOD √

Throttle position: TPS √

Fuel pressure: FRP √

Ignition timing: ING Accurate to 0.1V

Battery voltage: VLT  Accurate to 1 ° C

Fuel System Status: LP √

Water temperature: CWT Accurate to 1 ° C

Speed: KPH Accurate to 1KM/hr





Specifications



· GSM frequency : Quad-band 850/900/1800/1900 MHz

· Size :  66*48*25mm
· Weight:  55g
· Interface: OBD interface
· Data transmission: GPRS/SMS
· Positioning mode: GPS/AGPS
· Working voltage: 9-36V DC
· Internal battery: 3.7V/100mA Lithium battery

· Install: OBD II connector/Plug-in and play
· GPS channels: 50
· Sensitivity: -160dBm
· Positioning Accuracy : 10m
· Cold start: <32s
· Hot start : < 1s

· Protocol: TCP/IP
· Built-in GPS/GSM antennas
· Working temperature :   -30 °C~ +70°C
· Storage temperature: -40 °C~ +85°C

· Humidity: 5%~95%

· Communication protocol:SMS, GPRS, TCP/UDP, USSD, FTP

· Normal currency:<100mA, 13.8VDC
. Max. currency:<150mA, 13.8VDC
. Sleep mode currency:<10mA,12VDC





This device plugs into a vehicle's OBDII port for ease of installation. An additional Y-cable allows you to place the device up under the dash for an even more covert option





GPS Tracking Diagnostics System

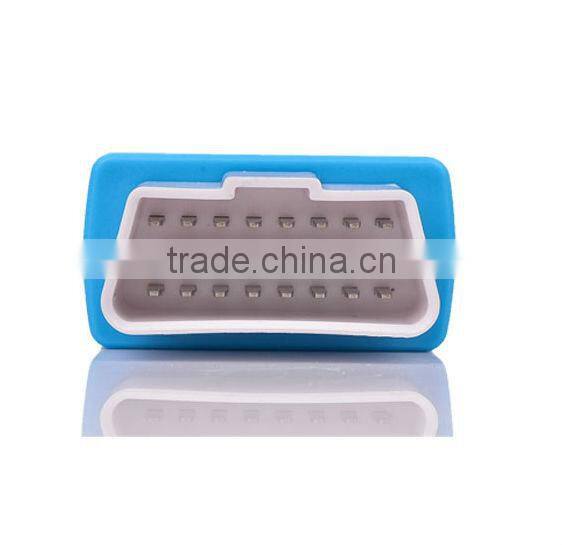

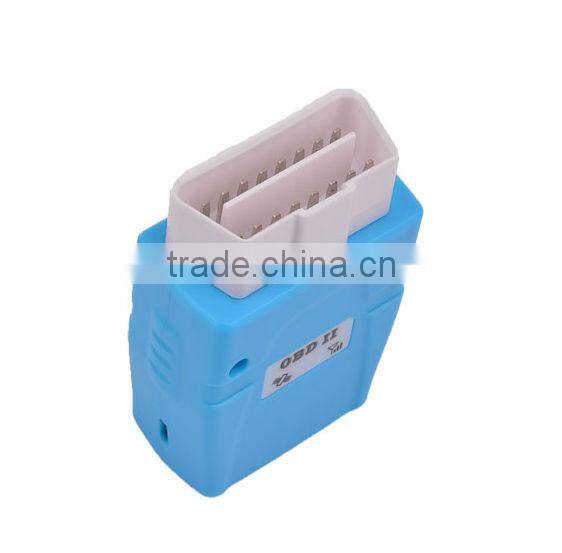

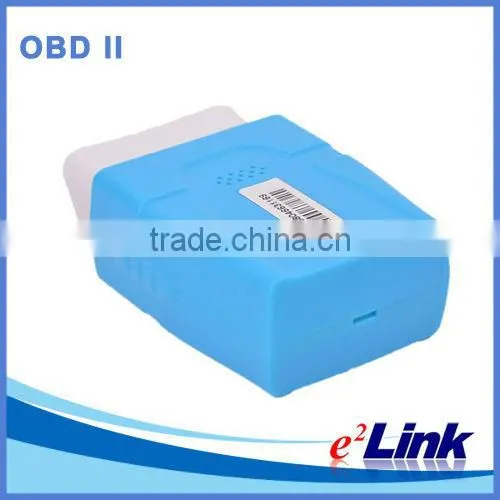

Detail picture



GPS Tracking System







1) Geo-fence Alarm





2)Add device with protocol you need







3)GPS tracking Statistics report







Office and Laboratory





Factory SMT Workshop





Factory Cable Assembly  Workshop







Company Certificate

Focusing on products that are truly superior and innovative, Eelink has been awarded China National Hi-tech Enterprise and Software Enterpise, Certificate of Utility model Patent Certification, Eelink’s products have passed the international certification BV, SGS,D&B, Design Patent, CE, FCC, PAHs,CCC,etc.
