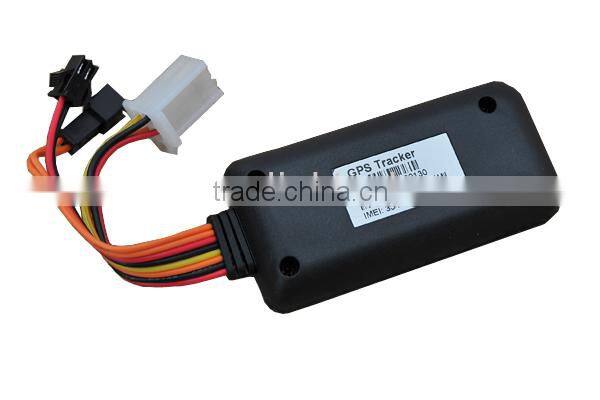

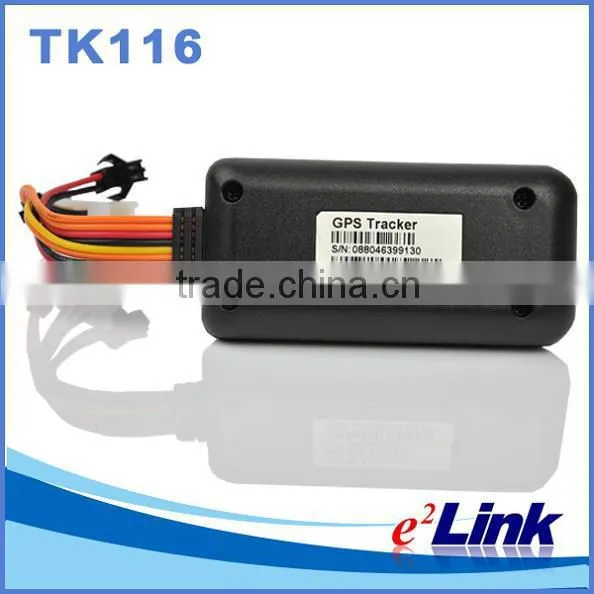

TK116 Mini Gps Vehicle Tracking Device With Global Smallest Gps Tracking Chip

Specifications

1.Supports quad bands
2.remotely control the vehicle
3.Web browser&Smart phone app SMS query
4.Supports ACC status checking

Vehicle tracking system manufacturers seeing the demand in the market for vehicle tracking systems are manufacturing high quality vehicle tracking systems which can be very helpful. At Eelink you can make order for all types of vehicle tracking systems which are manufactured by very reputed vehicle tracking system manufacturers.

Shenzhen Eelink is a manufacturer and exporter of GPS Trackers, GPS Tracker OBD II, OBD 2 Tracking Device, Car Vehicle On-Board  Diagnostics Tracking System, Vehicle Tracking Devices, Personal Tracking device. We also offer mature GPS Tracking Solutions including vehicle tracking, personal security, and fleet management

GPS Tracking Solutions

Environment for use

1.Limited working temperature:-20°C~80°C

2.Storage temperature:-45°C~90°C
3.Humidity:<95%
4.Atmospheric pressure:86kPa~106kPa
5.Make sure the terminal is installed in rainproof
and snow-proof places.

6.Battery: 200MAh battery



Basic Specifications:

Voltage: 12VDC/24VDC
Standby : Current <3mA
Work current : <30mA
GPS positioning accuracy : 15m
GSM positioning accuracy : 100m
GPS Frequency : 1575MHz
GSM Frequency : 850/900/1800/1900MHz
Hot/warm/cold start time : <3s,<15s,<60s
Dimensions (mm) L*W*H : 79.5X38.5X10.5
Weight : 45g



Product Features
1.Supports quad bands, i.e. 850/900/1800/1900MHz, universal in the world.
2.Wide Input Voltage:6-36V DC.
3.Supports single positioning and feedbacks position via GPRS at setting times.
4.Supports vehicle positioning and tracking.
5.Supports ACC status checking and vehicle status notifying.
6.Use relay to remote control the vehicle..
7.Use SOS button for SOS call.
8.Use external MIC to monitor remotely



Detail picture







GPS Tracking System







1) Geo-fence Alarm





2)Add device with protocol you need







3)GPS tracking Statistics report









Package

Packing List	1 x GPS (5cm)
	1 x Power cable (100cm)
	1 x Microphone (150cm)
	1 x SOS button
	1 x English user manual
	1 x Chinese / English instruction manual









Accessories







Office and Laboratory





Factory SMT Workshop





Factory Cable Assembly  Workshop







Company Certificate

Focusing on products that are truly superior and innovative, Eelink has been awarded China National Hi-tech Enterprise and Software Enterpise, Certificate of Utility model Patent Certification, Eelink’s products have passed the international certification BV, SGS,D&B, Design Patent, CE, FCC, PAHs,CCC,etc.
