Specifications
1. Oil-cut & circuit control2. Multiple alarm mode
3. smallest gps tracking device
4.The ACC ignition signal detection

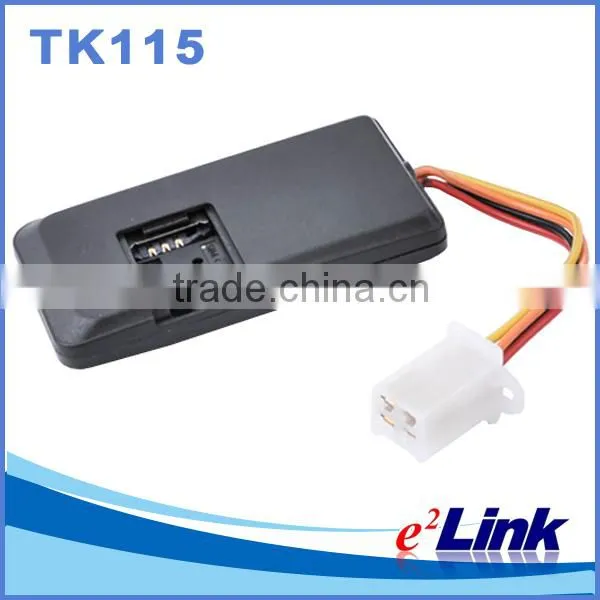

TK115 gps tracking device
TK115 gps tracking device have a very wide range of industrial and civil applications,global
minimum volume of high-performance GPS tracker, super wide voltage range 9-60 v,remote
location, cutting oil, remote mobile phone, computer checking their position at any time.
Typical application industry are: logistics enterprises, the management team, the bus management,
insurance companies, power companies, oil companies, telecommunications companies,
taxi companies, car sales, car rental company scale, less-than-one carload leasing companies, auto
car drives, small and medium-sized enterprise team, vehicle maintenance and repair personnel, automotive technology researchers, individual owners
Product Features
1.Supports quad bands,i.e. 850/900/1800/1900MHz,universal in the world.
2.Wide Input Voltage:9-60V DC.
3.GPS precise positioning with A-GPS and uploaded by GPRS regularly, Supports
real-time tracking and history track playback.
4.Web browser platform, Smart phone app platform and SMS query.
5.Supports multiple alarm,acceleration sensor can be added (B models, optional component),
so as increase vibration, collision and falling alarm.
6.Supports ACC status checking and vehicle status notifying.
7.Use relay to remotely control the vehicle..
8.GPRS remote upgrade program.
ALARM TYPE:
1.Vibration Alarm(Optional)
2.Collision / falling Alarm(Optional)
3. Speed Alarm
4.Geo-fence Alarm

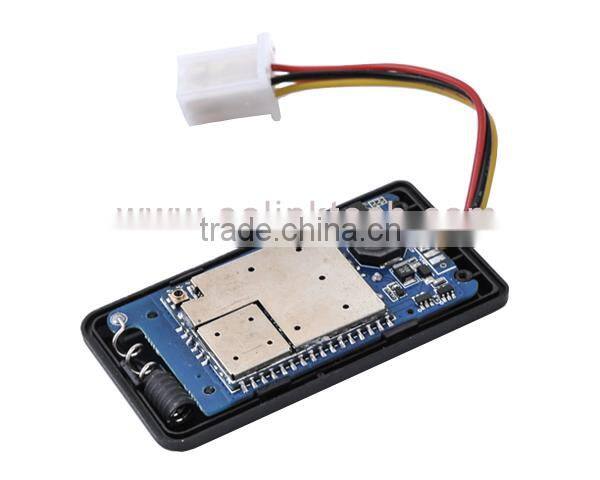

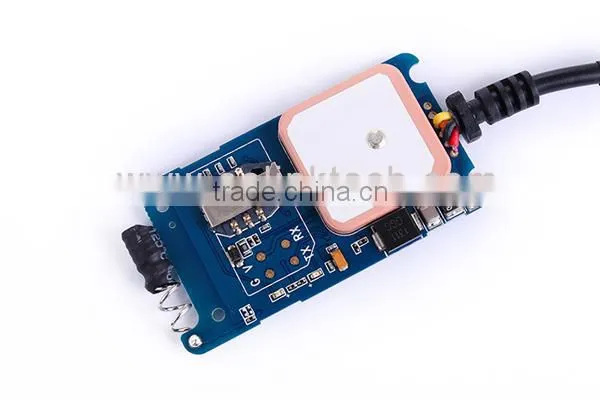

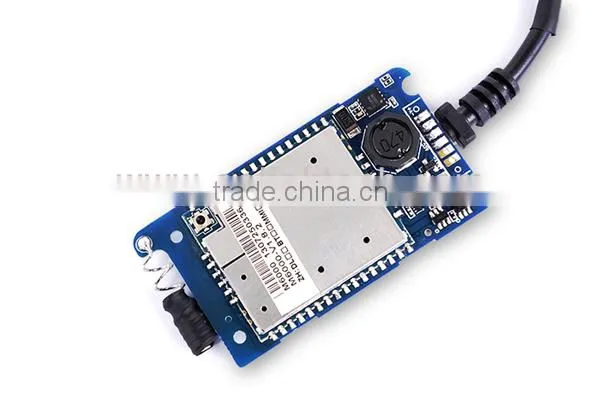

Detail picture
Environment for use
1.Limited working temperature:-20°C~80°C
2.Storage temperature:-45°C~90°C
3.Humidity:<95%
4.Atmospheric pressure:86kPa~106kPa
5.Make sure the terminal is installed in rainproof
and snow-proof places.
Basic Specifications:
Voltage: 12VDC/24VDC
Standby : Current <3mA
Work current : <30mA
GPS positioning accuracy : 15m
GSM positioning accuracy : 100m
GPS Frequency : 1575MHz
GSM Frequency : 850/900/1800/1900MHz
Hot/warm/cold start time : <3s,<15s,<60s
Dimensions (mm) L*W*H : 71.5X38.5X10.5
Weight : 40g
Product Features
1.Supports quad bands, i.e. 850/900/1800/1900MHz, universal in the world.
2.Wide Input Voltage:6-36V DC.
3.Supports single positioning and feedbacks position via GPRS at setting times.
4.Supports vehicle positioning and tracking.
5.Supports ACC status checking and vehicle status notifying.
6.Use relay to remote control the vehicle..
Main function
| Brand | Eelink |
| Model | TK115 |
| Quantity | 1 piece(s) |
| Color | Black |
| Material | ABS |
| Network | GSM |
| Band | 85090018001900 MHz |
| SIM Card Qty. | one SIM |
| Emergency Phone Number Qty. | 3 |
| Tracking Information Method | Monitoring and controlling platform |
| Power Supply | DC 6~36V |
| GPS Chip | SIRF |
| GPS Sensitivity | -163 dB |
| GPS Channel | 20 |
| Position Accuracy | 10 m |
| Altitude Limit | 18000 m |
| Hot Start | 3 seconds |
| Warm Start | 15 seconds |
| Cold Start | 60 seconds |
| Geo-fence | Yes |
| Vibrating Alerts | Yes |
| Remote Monitoring | Yes |
| Engine Cut Off | Yes |
| Realtime Monitoring | Yes |
| Track Playback | Yes |
| ACC Anti-Theft | Yes |
| Overspeed Alerts | Yes |
| Low Battery Alerts | Yes |
| GPS Blind Area Alarm | Yes |
| Voice Call | No |
| Waterproof Function | Yes |
| Waterproof Rate | Daily user water resistant |
| Working Temperature | -35~75'C |
| Working Humidity | 5%~95% |
| Manufacturer's Warranty | 12 Months excluding physical damages (see specifications for terms and details) |
| Certification | CE |
GPS TRACKING SYSTEM
Package
| Packing List | 1 x GPS (5cm) |
| 1 x Power cable (100cm) | |
| 1 x English user manual | |
| 1 x Chinese / English instruction manual |
Accessories
Office and Laboratory
Factory SMT Workshop
Factory Cable Assembly Workshop
Company Certificate
Focusing on products that are truly superior and innovative, Eelink has been awarded China National Hi-tech Enterprise and Software Enterpise, Certificate of Utility model Patent Certification, Eelink’s products have passed the international certification BV, SGS,D&B, Design Patent, CE, FCC, PAHs,CCC,etc.
