Help CenterCK6140 Automatic Feeding Cnc Lathe
Related Products
automatic feeding cnc lathe
1. bar requirement
bar diameter 3-45mm, max. bar length 2500 mm, with quite higher efficiency than normal CNC lathe.
2. automatic feeding cnc lathe CK6140 configuration
- 8" thru-hole hydraulic chuck or hydraulic collet, meet auto feeding requirement and improve working efficiency.
- 4 position electric turret, orientates and changes cutting tools automatically ( cheap price 4 position gang type tool post optional)
- hydraulic tail stock, is optional.
- removing auto feeder, CNC lathe could be used normal CNC lathe too.
- This type auto feeder CNC lathe has been exported too lots of countries. All of customers feed back very well.
3. automatic feeding cnc lathe CK6140 advantages
- wider guide width to 300mm, improve bed rigidity and stability for long servicing time
- advanced spindle structure enable inverter stepless speed up to 2000RPM
- 45 degrees hardness, high frequency quenched guide way
- full cover, good water proof advantage, good dust and chip proof advantage
- complete set coolant system
- automatic integrated lubrication system
- advanced LED lighten system
- three color warning light
- complete files like user manual, main motor driver manual, video, CD etc
4. automatic feeding cnc lathe CK6140 specification
automatic feeding cnc lathe |
CK6140 |
max. swing over bed |
400mm |
Max. swing over cross slide |
250mm |
Max. processing length |
600mm |
Spindle bore |
45mm |
Spindle speed |
2000rpm |
Spindle nose |
A2-6 |
Spindle motor power |
5.5kw |
X/Z axis position accuracy |
0.01/0.015mm |
X/Z axis repeatability |
0.012/0.013mm |
X/Z axis motor torque |
5.5/7.5 N.m |
X/Z axis motor power |
1/1.5kw |
X/Z axis rapid feeding speed |
8/10 m/min |
Tool bar section |
20*20mm |
Tail stock sleeve dia |
60mm |
Tail stock sleeve travel |
100mm |
Tail stock taper |
MT4# |
N.W. |
1800kg |
Machine dimension (L*W*H) |
2200*1100*1620mm |

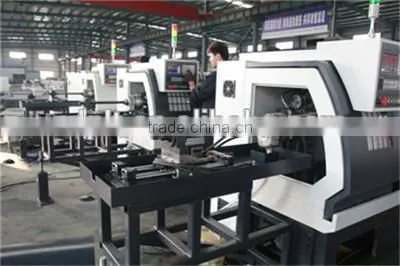

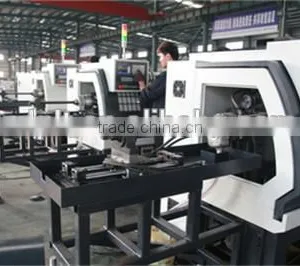

5.more pictures of automatic feeding cnc lathe
6.Delivery ( automatic feeding cnc lathe )
7. Work piece( automatic feeding cnc lathe )
8. Training could be offered.
