Specifications
The yield is higher, the energy consumption is lower,and the quality surpasses the similar products.
Product Description:

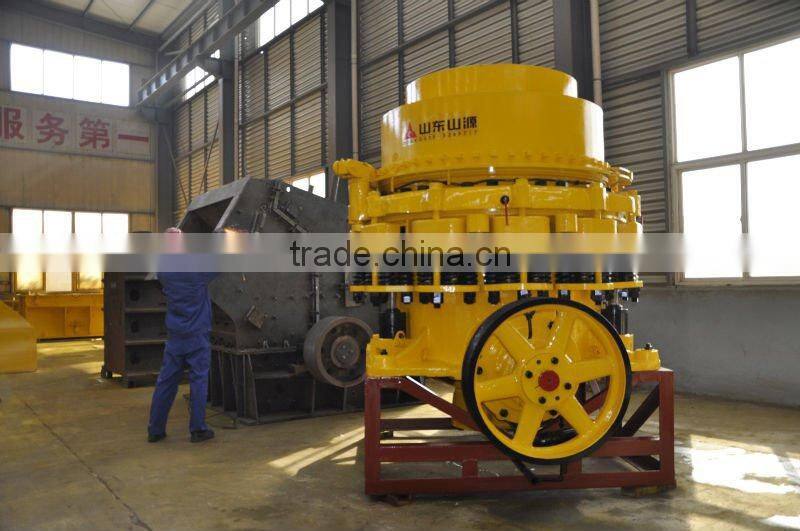

Cs series cone crusher apply to crushing super hardness materials which above medium hardness,such as granite,ba-salt,quartzite,iron ore,cobble stone etc. The cone crusher is mainly used in mining,building material,metallurgy industry,sandstone processing,road and bridge engineering etc.Standard type main technical parameters
Feature and Advantage:
CS Series high efficiency Hydraulic Cone Crusher has a better performance compared with other ordinary hydraulic Cone Crusher.
1.A high crushing ratio and production efficiency: the connection of higher turning speed and stroke takes such rated power and passing capacity improved greatly and the crushing ratio and capacity increased.
2.Less spare part consuming and low operation cost: Advanced crushing principle and technical data, reliable operation and low operation cost. All parts of the crusher have anti-wearing protection, which can make the lifetime of insubstantial parts increased by 30% and the maintenance costs were lowered to the lowest. The crusher prevents the disadvantages of impact crusher like low average crushing ratio, large energy consumption, fast abrasion of hammer, impact plate and lining board.
3.Between-layer pressuring crushing and better finished product shape: The crusher adopts between-layer pressuring crushing principal and the suited turning speed, not the customary single particle crushing principal. The special crushing cavity can make the crusher crush materials selectively. Thus the proportion of refined product and products of cubic shape be increased distinctly and products of lump size declined by a large extent.
4.Hydraulic protection and hydraulic cavity clearing, high automatization and less stop production and repairing time: the discharge opening adjusted by hydraulic and overload protection makes performance of the crusher augmented by a large extent, the maintenance and operation easier, the repairing time shorter.; the bidirectional metal releasing hydraulic vat makes slab pass through crushing cavity; the crusher can discharge materials automatically when the hydraulic works under the conditions of iron passing and instantaneous overloading, thus there is not any trouble of stopping the crusher to discharge materials by hand.
5.Thin oil lubrication makes the life time increased:Unique design of thin oil lubrication system prolongs life time of the crusher, high performance and not touchable labyrinth airproof part blocks off the dust and remove the common disorders like the mixture of oil and water in spring cone crusher.
6.Manifold crushing cavity, flexible application, strong adaptability:It is only need to change fixed cone lining board and movable cone lining board; the type of crushing cavity can be changed from standard coarse cavity to short head fine cavity, which can meet various kinds of need
7.Easy maintenance and operation: All parts of CS Hydraulic Cone Crusher can be assembled, disassembled and repaired from the top and side part, including the fixed cone and movable cone. For the changing no needs to disassemble the crusher body and fasten the bolts. Hydraulic motor rides the performance of crusher better.

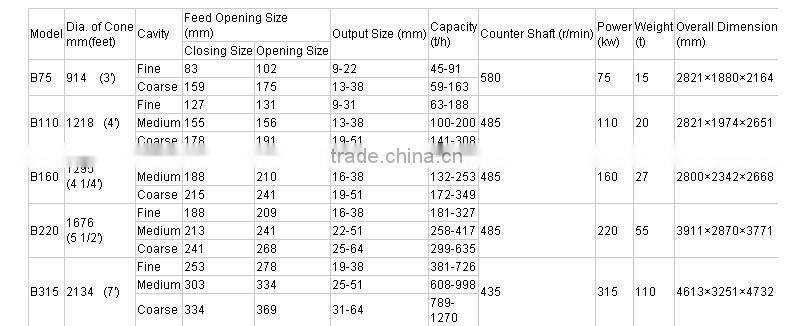

8.The crusher can provide customers with a higher capacity, better product shape, and easy be operated. Specifications:
Chnegming ' Service
Pre-sales
1. Customers can open Chengming company website for inquiring the relevant information.
2. Customers can go to the Chengming sales department for knowing detail information by telphone, e-mail, fax or other methods.
3. Chengming company arranges full time customer manager for customers, offering detail introduction and engineering technology solutions.
4. Can arrange customers nearby investigation of Chengming products service condition.
5. Cheng Ming company customer service engineers go to customer worksite for assisting in the design and provide a feasibility plan.
Sale in
1. Can directly go to the customer worksite or Chengming company for investigation, negotiation and signing a contract.
2. Providing foundation drawings of the equipment and on-site guidance, timely answer customer technical problems encounterde in the construction.
3. According to the contract requirements of the quality, quantity, delivery on time.
4. Can consigning shipment for customers.
5. Customer service engineers can go to the worksite to guide the installation, commissioning, training operators, to achieve customer satisfaction.
After sale
1. Paying a return visit regularly, to know the equipment service condition.
2. In the warranty period, receives the customer breakdown telephone, within 2 hours to provide solution, if need the expatriates, within 48 hours to arrive at the worksite, to assist in troubleshooting
until return to normal production.
3. Ensure timely supply of high quality spare parts.
4. For the customers whom use Chengming products, we will give life-long technical service.
