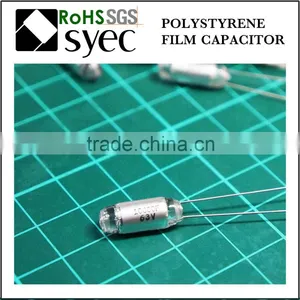

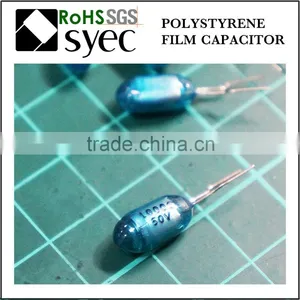

Tight Tolerances Radial Lead 681J 63V Polystyrene Film Capacitor
Tight Tolerances Radial Lead 681J 63V Polystyrene Film Capacitor
| Capacitor 681J 63V | Film Capacitor 681J 63V | Polystyrene Film Capacitor 681J 63V |

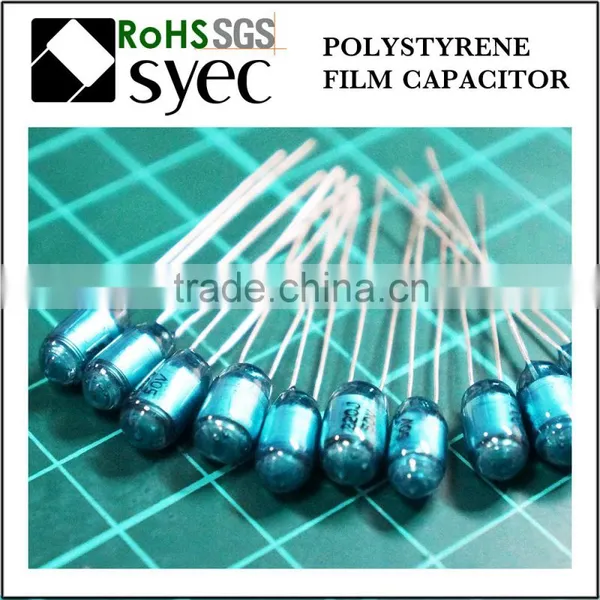

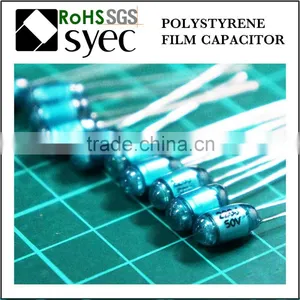

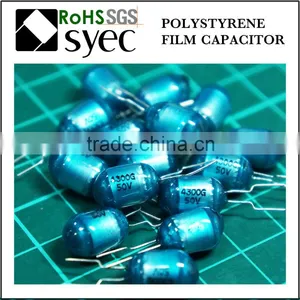

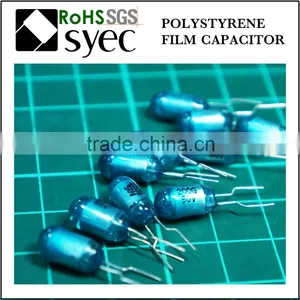

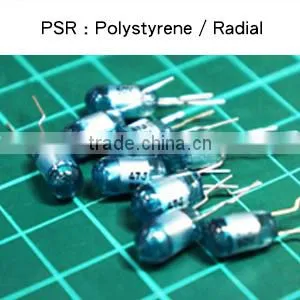

PSR are inductively wound with Polystyrene film dielectric and aluminum foil as electrode using
Copper leads. Due to availability of tight tolerances, They are ideal for applications in oscillator circuits in commercial and industrial instrumentation equipment.
FEATURES :
- Low dissipation factor and high insulation resistance.
- High stability of capacitance and DF versus temperature and frequency.
- Tight capacitance tolerances.
SPECIFICATION :
- Operating Temperature : -40℃~+85℃
- Capacitance Range : 200pF~200pF
- CAPACITANCE TOLERANCE : ±1%(F) ±2%(G) ±3%(H) ±5%(J) ±10%(K)
- RATED VOLTAGE : 160VDC-250VDC
- DISSIPATION FACTOR : 0.1%MAX AT 1KHZ,25℃
- INSULATION RESISTANCE : <=100000MΩ at 25℃
- TESTING VOLTAGE : WVDCx 175 % For 1~5sec
- SOLDERABILITY : 230℃±5℃ 3sec
|
RV SIZE CAP |
50V-160VDC |
250VDC |
||||
L |
D |
dψ |
L |
D |
dψ |
|
10P-100P |
10 |
5.5 |
0.4 |
10 |
6 |
0.4 |
120P-330P |
10 |
5.5 |
0.4 |
10 |
6 |
0.4 |
390P-560P |
10 |
5.5 |
0.4 |
10 |
6 |
0.4 |
620P-820P |
10 |
6.0 |
0.4 |
11 |
6.5 |
0.4 |
1000P-1500P |
12 |
6.0 |
0.4 |
12 |
6.5 |
0.4 |
1800P-2700P |
12 |
6.0 |
0.4 |
12 |
7.0 |
0.4 |
3300P-4700P |
12 |
8.0 |
0.4 |
13 |
8.5 |
0.4 |
5600P-6800P |
12 |
8.5 |
0.4 |
13 |
9.0 |
0.4 |
7200P-8200P |
13 |
9.0 |
0.4 |
13 |
9.5 |
0.4 |
10000P |
16 |
9.0 |
0.4 |
16 |
9.5 |
0.4 |
Tight Tolerances Radial Lead 681J 63V Polystyrene Film Capacitor
| Capacitor 681J 63V | Film Capacitor 681J 63V | Polystyrene Film Capacitor 681J 63V |
Tight Tolerances Radial Lead 681J 63V Polystyrene Film Capacitor
| Capacitor 681J 63V | Film Capacitor 681J 63V | Polystyrene Film Capacitor 681J 63V |
Packaging : Bulk or Tape ( Lead Pitch < 75mm )
Delivery Detail : about 15 days after payment received
Tight Tolerances Radial Lead 681J 63V Polystyrene Film Capacitor
| Capacitor 681J 63V | Film Capacitor 681J 63V | Polystyrene Film Capacitor 681J 63V |
Web Site :
We are Same Yuan.

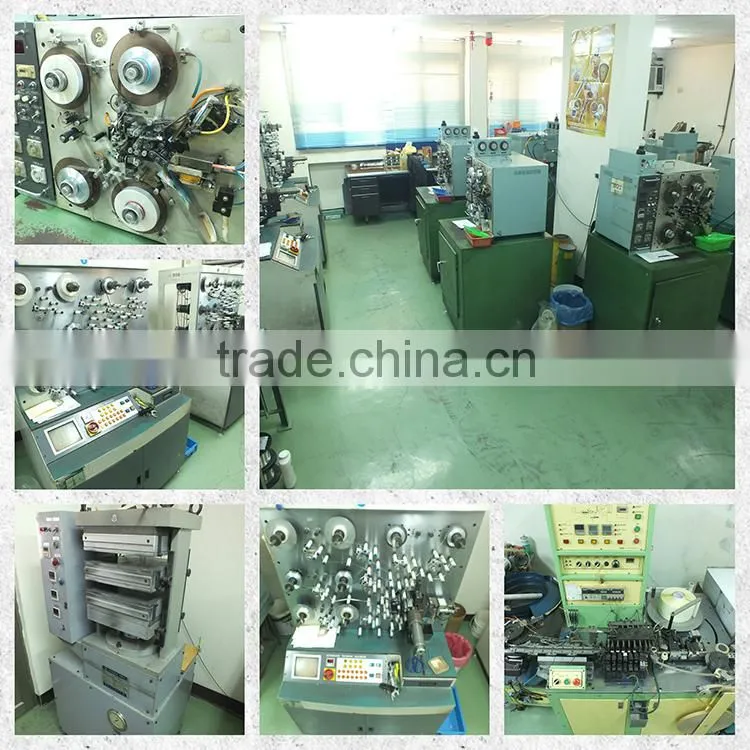

Established in 1982 in Kaohsiung, Taiwan, Same Yuan Capacitor Enterprises Co., Ltd. is positioned as a professional PS (polystyrene), PP (polypropylene) and PE (polyester) film capacitors manufacturer. We design and produce film capacitors in Taiwan under the brand of "Same Yuan". OEM business is also welcome. We are the main PS/PEN/PPN film capacitors maker in Taiwan at present. As a professional manufacturer,
We offer our clients the following advantage:
- Best quality
- Speedy Delivery
- Competitive Price
- Prompt Service
- Complete Satisfaction
- Innovation Technology
Tight Tolerances Radial Lead 681J 63V Polystyrene Film Capacitor
| Capacitor 681J 63V | Film Capacitor 681J 63V | Polystyrene Film Capacitor 681J 63V |
Our main products:

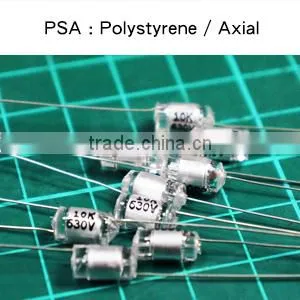

- Polystyrene Film Capacitor (Inductive Type)

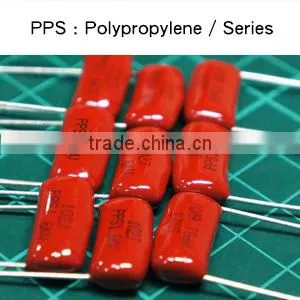

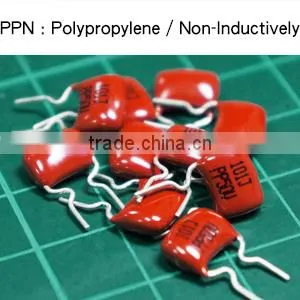

- Polypropylene Film Capacitor (Non-inductive type)
- High Voltage Polypropylene Film Capacitor
- Polyester Film Capacitor
- Metallized Polyester Film Capacitor
- Metallized Polypropylene Film Capacitor
- Mini Box Capacitor
- X2 Capacitor
Tight Tolerances Radial Lead 681J 63V Polystyrene Film Capacitor
| Capacitor 681J 63V | Film Capacitor 681J 63V | Polystyrene Film Capacitor 681J 63V |
