High Frequency Low DF 10000pF 50V Polypropylene Film Capacitor
- Port Of Kaohsiung
You May Like
-
High Frequency Low DF 12000pF 50V Polypropylene Film Capacitor
-
High Frequency Low DF 15000pF 50V Polypropylene Film Capacitor
-
High Frequency Low DF 22000pF 50V Polypropylene Film Capacitor
-
High Frequency Low DF 27000pF 50V Polypropylene Film Capacitor
-
High Frequency Low DF 33000pF 50V Polypropylene Film Capacitor
-
High Frequency Low DF 47000pF 50V Polypropylene Film Capacitor
Product Details
| Place of Origin | Taiwan, China | Brand Name | Yuan Corp | |
| Model Number | PPN103J50V | Type | Polypropylene Film Capacitor | |
| Application | Other, Audio | Package Type | Through Hole | |
| Capacitance | 10000pF | Rated Voltage | 50VDC | |
| Operating Temperature | -40℃~+85℃ |
Product Description
High Frequency Low DF 10000pF 50V Polypropylene Film Capacitor
High Frequency Low DF 10000pF 50V Polypropylene Film Capacitor
| 10000pF 50V Polypropylene Film Capacitor | 10000pF 50V PPN Film Capacitor | 10000pF 50V PPN Capacitor |
PPN are non-inductively wound with Polypropylene film dielectric and aluminum foil electrode with copper-clad steel leads and are epoxy resin coated. They are suitable for blocking, by-pass coupling and temperature compensation for applications in telecommunication, data processing, industrial instrumentation and automatic control system equipment.
FEATURES :
- Low dissipation factor and high insulation resistance.
- High stability of capacitance and DF versus temperature and frequency.
- Low dielectric absorption.
- Non-inductive construction.
SPECIFICATION :
- Operating Temperature : -40℃~+85℃
- Capacitance Range : 0.0001uF~0.12 uF
- CAPACITANCE TOLERANCE : ±1%(F)±2%(G)±5%(J) ±10%(K),
- RATED VOLTAGE : 100VDC,250VDC,400VDC,630 VDC
- DISSIPATION FACTOR : 0.1%MAX AT 1KHZ,25℃
- INSULATION RESISTANCE : >30000MΩ(C<=0.1uf)>3000MΩ.uF (C>0.1uF)
- TESTING VOLTAGE : WVDCx 175%For 1~5sec.
- SOLDERABILITY : 230℃±5℃ 3sec
Unit : mm
RV SIZE CAP | 100VDC | 250VDC | 400VDC | 630VDC | ||||||||||||
W | H | T | P±1 | W | H | T | P±1 | W | H | T | P±1 | W | H | T | P±1 | |
101~821 | 10.5 | 9.5 | 6 | 7.0 | 10.5 | 9.5 | 6.0 | 7.0 | 10.5 | 9.5 | 6.0 | 7.0 | 10.5 | 9.5 | 6.0 | 7.0 |
102 | 10.5 | 9.5 | 6 | 7.0 | 10.5 | 9.5 | 6.0 | 7.0 | 10.5 | 9.5 | 6.0 | 7.0 | 10.5 | 9.5 | 6.0 | 7.0 |
122 | 10.5 | 9.5 | 5.5 | 7.0 | 10.5 | 9.5 | 5.5 | 7.0 | 10.5 | 9.5 | 5.5 | 7.0 | 10.5 | 10.0 | 7.0 | 7.0 |
152 | 10.5 | 9.5 | 5.5 | 7.0 | 10.5 | 9.5 | 5.5 | 7.0 | 10.5 | 9.5 | 5.5 | 7.0 | 10.5 | 10.0 | 7.0 | 7.0 |
222 | 10.5 | 9.5 | 5.5 | 7.0 | 10.5 | 9.5 | 5.5 | 7.0 | 10.5 | 9.5 | 5.5 | 7.0 | 10.5 | 10.0 | 7.5 | 7.0 |
272 | 10.5 | 9.5 | 5.5 | 7.0 | 10.5 | 9.5 | 5.5 | 7.0 | 10.5 | 9.5 | 5.5 | 7.0 | 10.5 | 10.0 | 7.5 | 7.0 |
332 | 10.5 | 9.5 | 5.5 | 7.0 | 10.5 | 9.5 | 5.5 | 7.0 | 10.5 | 9.5 | 5.5 | 7.0 | 10.5 | 10.5 | 7.5 | 7.0 |
392 | 10.5 | 9.5 | 5.5 | 7.0 | 10.5 | 9.5 | 5.5 | 7.0 | 10.5 | 9.5 | 5.5 | 7.0 | 14 | 10.5 | 6.5 | 10.0 |
472 | 10.5 | 9.5 | 5.5 | 7.0 | 10.5 | 9.5 | 5.5 | 7.0 | 10.5 | 9.5 | 6.0 | 7.0 | 14 | 12.0 | 7.0 | 10.0 |
562 | 10.5 | 9.5 | 6.0 | 7.0 | 10.5 | 9.5 | 6.0 | 7.0 | 10.5 | 9.5 | 6.0 | 7.0 | 14 | 13.0 | 7.5 | 10.0 |
682 | 10.5 | 9.5 | 5.5 | 7.0 | 10.5 | 9.5 | 5.5 | 7.0 | 14 | 10.0 | 6.5 | 10.0 | 14 | 13.0 | 7.5 | 10.0 |
822 | 10.5 | 9.5 | 6.0 | 7.0 | 10.5 | 9.5 | 6.0 | 7.0 | 14 | 10.0 | 6.5 | 10.0 | 20 | 13.0 | 7.3 | 15.0 |
103 | 10.5 | 10.0 | 6.5 | 7.0 | 10.5 | 10.0 | 6.5 | 7.0 | 14 | 12.5 | 7.5 | 10.0 | 20 | 13.0 | 7.5 | 15.0 |
123 | 10.5 | 10.0 | 6.5 | 7.0 | 10.5 | 10.0 | 6.5 | 7.0 | 14 | 12.8 | 7.5 | 10.0 | 20 | 13.0 | 7.5 | 15.0 |
153 | 11.0 | 11.0 | 6.5 | 7.0 | 10.5 | 11.0 | 7.0 | 7.0 | 14 | 13.5 | 8.0 | 10.0 | 20 | 14.5 | 8.0 | 15.0 |
223 | 11.0 | 11.0 | 7.0 | 7.0 | 10.5 | 12.0 | 7.5 | 7.0 | 14 | 13.5 | 8.0 | 10.0 | 20 | 16.5 | 10.5 | 15.0 |
273 | 14.0 | 11.0 | 7.0 | 10.0 | 14.0 | 12.0 | 7.0 | 10.0 | 19.0 | 12.0 | 7.5 | 15.0 | 20 | 16.5 | 10.8 | 15.0 |
333 | 14.0 | 11.0 | 7.0 | 10.0 | 14.0 | 13.0 | 7.0 | 10.0 | 19.0 | 14.0 | 8.5 | 15.0 | 20 | 19.0 | 11.0 | 15.0 |
473 | 14.0 | 11.5 | 7.5 | 10.0 | 14.0 | 13.2 | 7.5 | 10.0 | 20.0 | 15.5 | 9.5 | 15.0 | 25 | 17.0 | 10.0 | 21.0 |
563 | 14.0 | 12.5 | 8.0 | 10.0 | 14.0 | 13.5 | 7.5 | 10.0 | 20.0 | 15.5 | 10.0 | 15.0 | 26 | 19.0 | 13.0 | 21.5 |
683 | 14.0 | 13.5 | 8.5 | 10.0 | 14.0 | 14.0 | 8.5 | 10.0 | 20.0 | 16.0 | 11.0 | 15.0 | 27 | 22.0 | 14.0 | 21.5 |
104 | 19.0 | 15.0 | 8.5 | 15.0 | 20.0 | 16.0 | 10.5 | 15.0 | 25.0 | 18.0 | 11.0 | 21.0 | 32 | 22.0 | 13.0 | 27.0 |
124 | 19.0 | 15.0 | 8.5 | 15.0 | 20.0 | 16.0 | 10.0 | 15.0 | 25.0 | 19.0 | 12.0 | 21.0 | 32 | 23.0 | 14.0 | 27.0 |

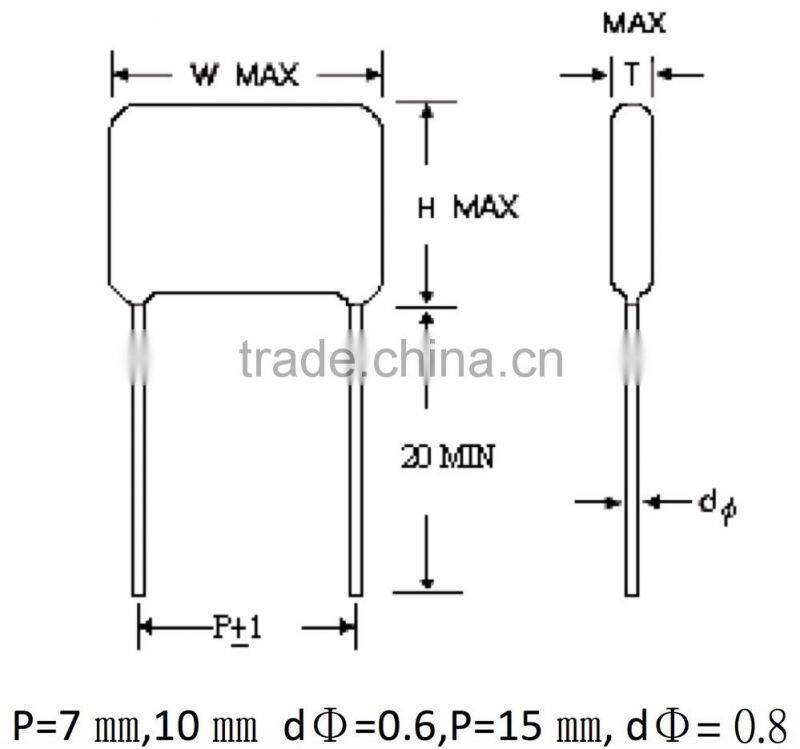

SPEC And SIZE :
Unit : mm
High Frequency Low DF 10000pF 50V Polypropylene Film Capacitor
| 10000pF 50V Polypropylene Film Capacitor | 10000pF 50V PPN Film Capacitor | 10000pF 50V PPN Capacitor |
High Frequency Low DF 10000pF 50V Polypropylene Film Capacitor
| 10000pF 50V Polypropylene Film Capacitor | 10000pF 50V PPN Film Capacitor | 10000pF 50V PPN Capacitor |
Packaging : Bulk or Tape ( Lead Pitch < 75mm )
Delivery Detail : about 15 days after payment received
High Frequency Low DF 10000pF 50V Polypropylene Film Capacitor
| 10000pF 50V Polypropylene Film Capacitor | 10000pF 50V PPN Film Capacitor | 10000pF 50V PPN Capacitor |
Web Site :
We are Same Yuan.
Established in 1982 in Kaohsiung, Taiwan, Same Yuan Capacitor Enterprises Co., Ltd. is positioned as a professional PS (Polypropylene), PP (polypropylene) and PE (polyester) film capacitors manufacturer. We design and produce film capacitors in Taiwan under the brand of "Same Yuan". OEM business is also welcome. We are the main PS/PEN/PPN film capacitors maker in Taiwan at present. As a professional manufacturer,
We offer our clients the following advantage:
- Best quality
- Speedy Delivery
- Competitive Price
- Prompt Service
- Complete Satisfaction
- Innovation Technology
High Frequency Low DF 10000pF 50V Polypropylene Film Capacitor
| 10000pF 50V Polypropylene Film Capacitor | 10000pF 50V PPN Film Capacitor | 10000pF 50V PPN Capacitor |
Our main products:
- Polypropylene Film Capacitor (Inductive Type)
- Polypropylene Film Capacitor (Non-inductive type)
- High Voltage Polypropylene Film Capacitor
- Polyester Film Capacitor
- Metallized Polyester Film Capacitor
- Metallized Polypropylene Film Capacitor
- Mini Box Capacitor
- X2 Capacitor
High Frequency Low DF 10000pF 50V Polypropylene Film Capacitor
| 10000pF 50V Polypropylene Film Capacitor | 10000pF 50V PPN Film Capacitor | 10000pF 50V PPN Capacitor |
Contact Us
- Same Yuan Capacitor Enterprise Co., Ltd.
- Contact nameSam Lin Chat Now
- Phone886-7-7822157
- AddressNo. 45
