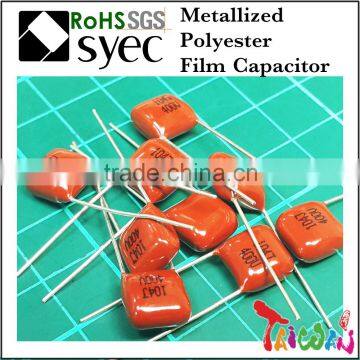

Capacitor Manufacturer MEF 154J 100V Metallized Polyester Film Capacitor

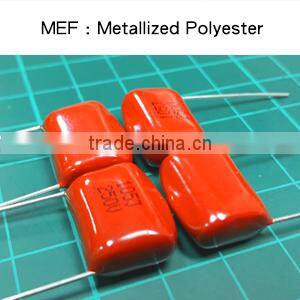

Capacitor Manufacturer MEF 154J 100V Metallized Polyester Film Capacitor
| Metallized Film Capacitor | Capacitor 154J | Capacitor 100V |
MEF are constructed with metalized polyester film dielectric, copperply lead and epoxy resin coating. They are suitable for blocking. Coupling, decoupling, Filtering. Bypass timing circuit and ideal for use in Telecommunication equipment. Data processing Equipment. Industrial instruments, automatic control System and other general electronic equipment.
FEATURES :
- High moisture resistance.
- Good solderability.
- Non-inductive construction and sell-healing property.
SPECIFICATION :
- Operating Temperature : -40℃~+85℃
- Capacitance Range : 0.01uF~1 uF
- CAPACITANCE TOLERANCE :±5%(J) ±10%(K) ±20%(M)
- RATED VOLTAGE : 100VDC,250VDC,400VDC,630 VDC
- DISSIPATION FACTOR : 1.0%MAX AT 1KHZ,25℃
- INSULATION RESISTANCE : >30,000MΩ(C<=0.33μF), >10,000MΩ(C>0.33μF)
- TESTING VOLTAGE : WVDCx 150%For 1~5sec.
- SOLDERABILITY : 230℃±5℃ 3sec
Unit : mm
RV SIZE CAP | 100VDC | 250VDC | 400VDC | 630VDC | ||||||||||||
W | H | T | P±1 | W | H | T | P±1 | W | H | T | P±1 | W | H | T | P±1 | |
103 | 13.0 | 9.5 | 6.0 | 10.0 | 13.0 | 9.5 | 6.0 | 10.0 | 13.0 | 9.5 | 6.0 | 10.0 | 13.0 | 9.5 | 6.0 | 10.0 |
123 | 13.0 | 10.0 | 6.5 | 10.0 | 13.0 | 10.0 | 6.5 | 10.0 | 13.0 | 10.0 | 6.5 | 10.0 | 13.0 | 10.0 | 6.5 | 10.0 |
183 | 13.0 | 10.0 | 6.5 | 10.0 | 13.0 | 10.0 | 6.5 | 10.0 | 13.0 | 10.0 | 6.5 | 10.0 | 13.0 | 12.5 | 7.5 | 10.0 |
223 | 13.0 | 10.0 | 6.5 | 10.0 | 13.0 | 10.0 | 6.5 | 10.0 | 13.0 | 10.0 | 6.5 | 10.0 | 13.0 | 12.5 | 7.5 | 10.0 |
333 | 13.0 | 10.0 | 6.5 | 10.0 | 13.0 | 10.0 | 6.5 | 10.0 | 13.0 | 10.0 | 6.5 | 10.0 | 13.0 | 12.5 | 8.5 | 10.0 |
393 | 13.0 | 11.0 | 7.5 | 10.0 | 13.0 | 11.0 | 7.5 | 10.0 | 13.0 | 11.0 | 7.5 | 10.0 | 18.5 | 12.5 | 7.5 | 15.0 |
473 | 13.0 | 11.0 | 7.5 | 10.0 | 13.0 | 11.0 | 7.5 | 10.0 | 13.0 | 11.0 | 7.5 | 10.0 | 18.5 | 12.5 | 7.5 | 15.0 |
563 | 13.5 | 10.0 | 7.0 | 10.0 | 13.5 | 10.0 | 7.0 | 10.0 | 18.0 | 11.0 | 6.0 | 15.0 | 19.0 | 14.0 | 8.5 | 15.0 |
683 | 13.5 | 10.0 | 7.0 | 10.0 | 13.5 | 10.0 | 7.0 | 10.0 | 18.0 | 11.0 | 6.0 | 15.0 | 19.0 | 22.0 | 8.5 | 15.0 |
823 | 13.5 | 10.0 | 6.0 | 10.0 | 13.5 | 10.0 | 6.5 | 10.0 | 18.0 | 12.5 | 7.0 | 15.0 | 19.0 | 15.0 | 9.0 | 15.0 |
104 | 13.5 | 10.0 | 6.0 | 10.0 | 13.5 | 10.0 | 6.5 | 10.0 | 18.0 | 12.5 | 7.0 | 15.0 | 19.0 | 15.0 | 9.0 | 15.0 |
124 | 13.5 | 10.5 | 6.5 | 10.0 | 13.5 | 10.5 | 6.5 | 10.0 | 18.5 | 13.0 | 7.5 | 15.0 | 24.0 | 15.5 | 9.5 | 20.0 |
154 | 13.5 | 10.5 | 6.5 | 10.0 | 13.5 | 10.5 | 6.5 | 10.0 | 18.5 | 13.0 | 7.5 | 15.0 | 24.0 | 15.5 | 9.5 | 20.0 |
184 | 13.5 | 10.5 | 6.5 | 10.0 | 18.5 | 11.5 | 7.0 | 15.0 | 18.5 | 13.0 | 8.0 | 15.0 | 24.0 | 18.5 | 10.5 | 20.0 |
274 | 13.5 | 11.5 | 8.0 | 10.0 | 18.5 | 13.0 | 8.0 | 15.0 | 24.0 | 16.0 | 9.0 | 20.0 | 24.0 | 21.5 | 13.0 | 20.0 |
394 | 18.0 | 11.5 | 6.5 | 15.0 | 18.5 | 14.0 | 8.0 | 15.0 | 24.0 | 18.0 | 10.0 | 20.0 | 30.5 | 21.0 | 11.5 | 27.5 |
474 | 18.5 | 11.5 | 6.5 | 15.0 | 18.5 | 14.0 | 8.0 | 15.0 | 24.0 | 18.0 | 10.0 | 20.0 | 30.5 | 21.0 | 11.5 | 27.5 |
564 | 18.5 | 12.5 | 7.5 | 15.0 | 21.0 | 14.0 | 9.0 | 20.0 | 30.5 | 17.5 | 10.0 | 27.5 | 35.0 | 23.0 | 13.0 | 31.0 |
824 | 18.5 | 15.0 | 8.0 | 15.0 | 24.0 | 17.0 | 9.5 | 20.0 | 31.0 | 21.0 | 11.5 | 27.5 | 35.0 | 28.0 | 16.0 | 31.0 |
105 | 18.5 | 15.0 | 8.5 | 15.0 | 24.0 | 17.0 | 9.5 | 20.0 | 31.0 | 21.0 | 11.5 | 27.5 | 35.0 | 28.0 | 16.0 | 31.0 |
SPEC And SIZE :
Unit : mm
Capacitor Manufacturer MEF 154J 100V Metallized Polyester Film Capacitor
| Metallized Film Capacitor | Capacitor 154J | Capacitor 100V |
Capacitor Manufacturer MEF 154J 100V Metallized Polyester Film Capacitor
| Metallized Film Capacitor | Capacitor 154J | Capacitor 100V |
Packaging : Bulk or Tape ( Lead Pitch < 75mm )
Delivery Detail : about 15 days after payment received
Capacitor Manufacturer MEF 154J 100V Metallized Polyester Film Capacitor
| Metallized Film Capacitor | Capacitor 154J | Capacitor 100V |
Web Site :
We are Same Yuan.
Established in 1982 in Kaohsiung, Taiwan, Same Yuan Capacitor Enterprises Co., Ltd. is positioned as a professional PS (polystyrene), PP (polypropylene) and PE (polyester) film capacitors manufacturer. We design and produce film capacitors in Taiwan under the brand of "Same Yuan". OEM business is also welcome. We are the main PS/PEN/PPN film capacitors maker in Taiwan at present. As a professional manufacturer,
We offer our clients the following advantage:
- Best quality
- Speedy Delivery
- Competitive Price
- Prompt Service
- Complete Satisfaction
- Innovation Technology
Capacitor Manufacturer MEF 154J 100V Metallized Polyester Film Capacitor
| Metallized Film Capacitor | Capacitor 154J | Capacitor 100V |
Our main products:
- Polypropylene Film Capacitor (Inductive Type)
- Polypropylene Film Capacitor (Non-inductive type)
- High Voltage Polypropylene Film Capacitor
- Polyester Film Capacitor
- Metallized Polyester Film Capacitor
- Metallized Polypropylene Film Capacitor
- Mini Box Capacitor
- X2 Capacitor
Capacitor Manufacturer MEF 154J 100V Metallized Polyester Film Capacitor
| Metallized Film Capacitor | Capacitor 154J | Capacitor 100V |
