Smart Off Grid 48V Inverter Pure Sine Wave 5KW Solar Inverter For Solar PV System
Feature
1. Adopt low frequency transformer, pure sine wave AC output, strong capacity of different load
2. Auto voltage regulation(AVR),wide input voltage 145V~275V, accurate output, adapt all kinds
of bad electric environments
3. Intelligent battery charging, the charging current can be adjusted according to the equipped
battery, it is fast and reliable and can increase the service life of the battery
4. Intelligent LCD display of output voltage,frequency,battery capacity,fault,over load,load
5. User can use the program of RS232 or USB communication software to monitor the inverter and set time auto shut down
6. Satisfy the power supply for different back up time
7. It can be automatically started up with mains supply, and has a wider range of applications
8. Advanced automatic constant charging circuit, prolongs battery life
9. It has perfect protection against under-voltage, overload, over-discharge, short-circuit etc.
Product Parameter
| Model X9-T | 10212/24 | 15212/24 | 20212/24 | 30224/48 | 50248 |
| Continuous power (W) | 1000W | 1500W | 2000W | 3000W | 5000W |
| Surge capability (W) | 2000W | 3000W | 4000W | 6000W | 10000W |
| System DC input (VDC) | 12V or 24VDC | 12V or 24VDC | 12V or 24VDC | 24V or 48VDC | 48VDC |
| AC input | 170-275VAC(220V) 186-300VAC(240v) 85-138VAC(110V) | ||||
| 93-150VAC(120v) | |||||
| AC Output | 110 / 120V/ 220V/240V ± 2% , 50HZ or 60HZ. Terminal | ||||
| AC Output waveform | Pure Sine Wave | ||||
| DC output | 12VDC Terminal | ||||
| Efficiency | >85% | ||||
| AC/DC Charger | optional, from 0A -Max 30A | ||||
| Solar Charge Controller | MPPT/PWM, decided by customer, Max 50A | ||||
| External battery back | 12V or 24VDC | 12V or 24VDC | 12V or 24VDC | 24V or 48VDC | 48VDC |
| Breakers | with Breakers for AC Input , AC output | ||||
| Battery low protection | yes | ||||
| Over discharge protection | yes | ||||
| Resume voltage | yes. When fault remove | ||||
| Over voltage protection | yes | ||||
| Overload protection | yes. | ||||
| With cooling fan | yes, 2 pieces intelligent fan | ||||
| Display | LCD for Inverter,charger,, DC load state and fault. LED for Battery Capacity state | ||||
| Running Temperature | -10 to 45 degree | ||||
| High temperature protection | YES | ||||
| Short circuit protection | YES | ||||
| Stand by | yes. continou ouput while > 25W | ||||
| Communication | RS232 (optional) | ||||
| Package Size(mm) | 358*254*480 | 390*265*535 | 450*340*565 | ||
| Gross Weight KG | 19.5 | 22 | 31 | 35 | 47.5 |
| product Size (mm) | 306*202*420 | 366*223*472 | 426*273*513 | ||
| product weight( kg) | 16.5 | 19 | 27 | 31 | 46 |

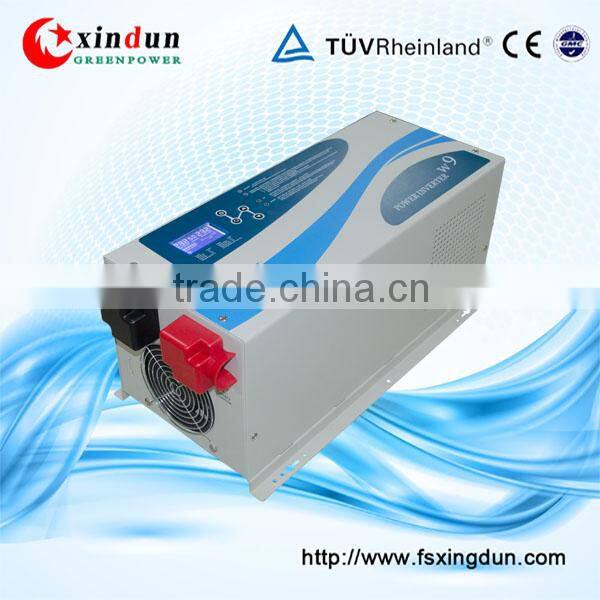

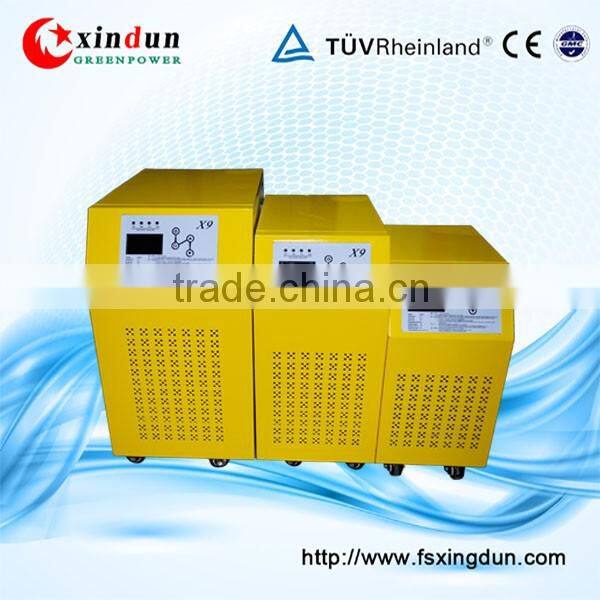

Products Pictures
HOT SALE PRODUCT RECOMMENDATION
Shipping:
1. Fedex/ DHL/ TNT/ UPS for samples, door-to-door.
2. By air or by sea for batch goods, for CFL, Air port/ Port receiving.
3. Customers specifying freight forwarders or negotiable shipping methords.
4. Delivery time: 7 days for samples; 10 to 25 days for batch goods.
Payment Terms
1. Payment: T/T, Western Union, Paypal, Moneygram. 30% deposit, 70% balance before delivery time.
2. MOQ: 1 PCS
3. Warranty: 1 years for inverter, controller, battery. 10 years for solar panel.
Factory show:
Why choose us?
1. Our factory has a history of 11years. From 2012, we set up our export sales department.
2. We are a factory of producing low frequency inverter, solar controller and solar generator.
3. Our low frequency Inverter is stable pure sine wave inverter with ups function.
4. Our inverter can load inductive load such as refrigerator, air condition, water pump,etc.
5. We produce inverter with output ranging from 110v to 240v, including 110v/ 50Hz, 120V/ 60Hz, 220v/ 50Hz, 230v/ 50Hz, 240V/50Hz. If you have special requirements, pls tell us for engineer consulting.
