China manufacture 1KW 2KW 5KW grid tie 3 phase inverter for diesel use
To view more:1kw/1500w/2kw/3kw/4kw/5kw/6kw
solar kit/inverter with controller/inverter cabinet

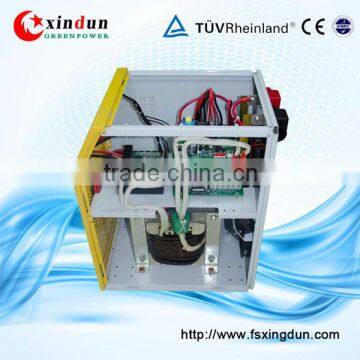

Product picture&description
General features
Hybrid solar inverter:
It can automatically select the solar energy or grid power to charge battery based on the state of sunlight and battery voltage.
1. solar energy first or grid power first for different client's needs
2. integrated with AC charger and PWM/MPPT solar charge controller
3. Automatic transfer between solar and grid power within 4 ms
4. Sleep mode function for low energy consume
5. Battery type option which can prolong battery life
6. RS232 communication optional
7. 2 pieces intelligent fan that good for device cooling
Product Parameter
| Model X9-T | 10212/24 | 15212/24 | 20212/24 | 30224/48 | 40224/48 |
| Continuous power (W) | 1000W | 1500W | 2000W | 3000W | 4000W |
| Surge capability (W) | 2000W | 3000W | 4000W | 6000W | 8000W |
| System DC input (VDC) | 12V or 24VDC | 12V or 24VDC | 12V or 24VDC | 24V or 48VDC | 24V or 48VDC |
| AC input |
170-275VAC(220V) 186-300VAC(240v) 85-138VAC(110V) 93-150VAC(120v) |
||||
| AC Output | 110 / 120V/ 220V/240V ± 2% , 50HZ or 60HZ. Terminal | ||||
| AC Output waveform | Pure Sine Wave | ||||
| DC output | 12VDC Terminal | ||||
| Efficiency | >85% | ||||
| AC/DC Charger | optional, from 0A -Max 30A | ||||
| Solar Charge Controller | MPPT/PWM, decided by customer, Max 50A | ||||
| External battery back | 12V or 24VDC | 12V or 24VDC | 12V or 24VDC | 24V or 48VDC | 24V or 48VDC |
| Package Size(mm) | 358*254*480 | 390*265*535 |
450*340*565 |
||
| Gross Weight KG | 19.5 | 22 | 31 | 35 | 41.5 |
| product Size (mm) | 306*202*420 | 366*223*472 | 426*273*513 | ||
| product weight( kg) | 16.5 | 19 | 27 | 31 | 46 |
Packaging&shipping&payment
Shipping
1. Fedex/ DHL/ TNT/ UPS for samples, door-to-door.
2. By air or by sea for batch goods, for CFL, Air port/ Port receiving.
3. Customers specifying freight forwarders or negotiable shipping methords.
4. Delivery time: 7 days for samples; 10 to 25 days for batch goods.
Payment Terms
1. Payment: T/T, Western Union, Paypal, Moneygram. 30% deposits, 70% balance before delivery time.
2. MOQ: 1 PCS
3. Warranty: 1 years for inverter, controller, battery. 10 years for solar panel.
Our customers are here all over the world
Customer visit&Project share
FAQ
Q1: Are you a factory? A1: Yes, we are a factory of inverter over 11 years, solar controller and solar generator since 2005 year. Q2: is your inverter pure sine wave output? A2: Yes, all of our inverters are pure sine wave output. Q3: What kind of regulation can you do? A3: Normally, we produce inverter with 110v/ 50Hz, 120V/ 60Hz, 220v/ 50Hz, 230v/ 50Hz,240V/50Hz.If you have special requirements, pls tell us for engineer consulting. Q4: What appliances can used ? A4: Our inverter canused in household appliances other inductive load such as refrigerator, air condition, water pump, etc.
24 hours, 7 days online to provide service.
Sherry Young
Mob/WhatsApp: 0086-137 6062 9244
Skype: sherry412008
E-mail: sherry(AT)
Thank for your reading.
