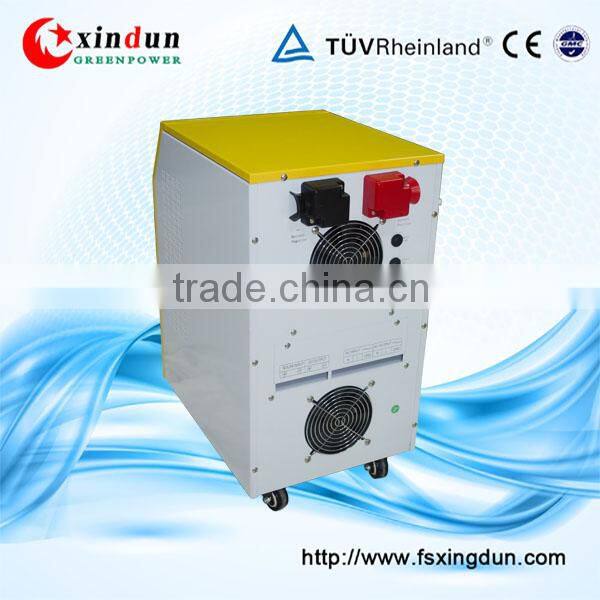

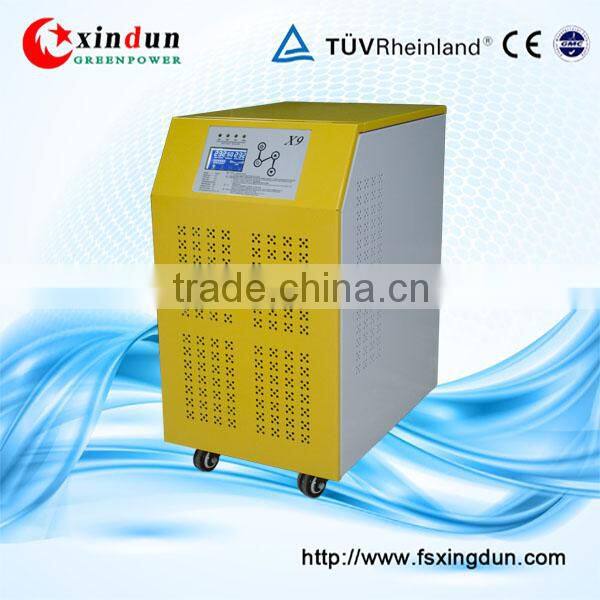

China Top 10KW Sine Wave off Grid Solar Home Inverter for Dubai

Name: China Top 10KW Sine Wave off Grid Solar Home Inverter for Dubai
Brand: Xindun
SKU: 115166379
Availability: InStock

Guangdong Xindun Power Technology Co., Ltd.

US$ 600.00 - 600.00 MOQ: 1 Piece

Key Specifications

Brand Name:

Xindun

Model Number:

xindun-x9

Specification:

Normal

Payment & Shipping

Payment Methods:

Port of Shipment:

GuangZhou

Delivery Detail:

Delivery time depends on order quantity.

Brand Name Xindun

Model Number xindun-x9

Specification Normal

Output Voltage (V) 10kw

Load Power (W) 10KW

Solar Power (W) 8-24 hours

Work Time (h) 8-24 hours

china Top 10KW sine wave off grid solar home inverter for Dubai

Hybrid solar inverter:

It can automatically select the solar energy or grid power to charge battery based on the state of sunlight and battery voltage.

1. solar energy first or grid power first for different client's needs

2. integrated with AC charger and PWM/MPPT solar charge controller

3. Automatic transfer between solar and grid power within 4 ms

4. Sleep mode function for low energy consume

5. Battery type option which can prolong battery life

6. RS232 communication optional

7. 2 pieces intelligent fan that good for device cooling

Technical specification:

Model X9-T	10212/24	15212/24	20212/24	30224/48	40224/48
Continuous power (W)	1000W	1500W	2000W	3000W	4000W
Surge capability (W)	2000W	3000W	4000W	6000W	8000W
System DC input (VDC)	12V or 24VDC	12V or 24VDC	12V or 24VDC	24V or 48VDC	24V or 48VDC
AC input	170-275VAC(220V) 186-300VAC(240v) 85-138VAC(110V) 93-150VAC(120v)
AC Output	110 / 120V/ 220V/240V ± 2% , 50HZ or 60HZ. Terminal
AC Output waveform	Pure Sine Wave
DC output	12VDC Terminal
Efficiency	>85%
AC/DC Charger	optional, from 0A -Max 30A
Solar Charge Controller	MPPT/PWM, decided by customer, Max 50A
External battery back	12V or 24VDC	12V or 24VDC	12V or 24VDC	24V or 48VDC	24V or 48VDC
Breakers	with Breakers for AC Input , AC output
Battery low protection	yes
Over discharge protection	yes
Resume voltage	yes. When fault remove
Over voltage protection	yes
Overload protection	yes.
With cooling fan	yes, 2 pieces intelligent fan
Display	LCD for Inverter,charger,, DC load state and fault. LED for Battery Capacity state
Running Temperature	-10 to 45 degree
High temperature protection	YES
Short circuit protection	YES
Stand by	yes. continou ouput while > 25W
Communication	RS232 (optional)
Package Size(mm)	358254480		390265535		450340565
Gross Weight KG	19.5	22	31	35	41.5
product Size (mm)	306202420		366223472		426273513
product weight( kg)	16.5	19	27	31	46
