hot price 10kw power inverter 12v to 240v dc to ac inverter
1. Low frequency transformer, pure sine wave output, strong load capacity
2. AVR, wide input voltage (+/0-35%)
3. Intelligent LCD+LED display
4. UPS function
5. Self protection against under voltage, overload and short circuit
6. Buitl in solar controller
| Model T/NK | 35112-10 | 50112-20 | 70124-20 | 10224-30 | 15224-50 | 20248-40 | 30224-50 | 30248-50 |
| Inverter rated capacity | 350W | 500W | 700W | 1000W | 1500W | 2000W | 3000W | 3500W |
| Battery | 12V | 12V | 24V | 24V | 24V | 48V | 24V | 48V |
| Rated current of Solar panel | 10A | 20A | 20A | 30A | 50A | 40A | 50A | 50A |
| Maximum power of solar panel | 120W | 240W | 480W | 720W | 1200W | 1920W | 1200W | 2400W |
| Size(L*W*H) | 345*210*122 | 420*145*215 | 405*180*320 | 425*200*335 | ||||
| Carton size(L*W*H) | 385*270*185 | 460*190*260 | 460*240*380 | 490*290*410 | ||||
| N.W(kg) | 9 | 10 | 13 | 15 | 19 | 22 | 30 | 30 |
| G.W(kg) | 10 | 11 | 14 | 16 | 20 | 23 | 31 | 31 |
| Model T | 40248-50 | 50248-50 | 60296-50 | 70296-50 | 70296-50 | 10396-100 | 153192-50A | 203192-100 |
| Inverter rated capacity | 4000W | 5000W | 6000W | 7000W | 7000W | 10000W | 15000W | 20000W |
| Battery | 48V | 48V | 96V | 96V | 96V | 96V | 192V | 192V |
| Rated current of Solar panel | 50A | 50A | 50A | 50A | 50A | 100A | 50A | 100A |
| Maximum power of solar panel | 2400W | 2400W | 4800W | 4800W | 4800W | 9600W | 9600W | 19200W |
| Size(L*W*H) | 465*245*465 | 485*300*655 | 580*350*700 | |||||
| Carton size(L*W*H) | 530*310*510 | 570*390*730 | 660*410*740 | |||||
| N.W(kg) | 46 | 52 | 54 | 57 | 57 | 87 | 107 | 127 |
| G.W(kg) | 48 | 62 | 64 | 67 | 67 | 97 | 117 | 137 |
| Parameter | ||||||||
| Inverter Structue | Low frequency structure | |||||||
| Work mode | AC first or PV first(optional) | |||||||
| Input | Voltage | 75VAC~125VAC or 145VAC~275VAC | ||||||
| Frequency | 45Hz~65Hz | |||||||
| Output | Voltage | 110VAC+/-2% or 220VAC+/-2% | ||||||
| Frequency | 50Hz+/-0.5 or 60Hz+/-0.5 | |||||||
| Output waveform | Pure sine wave | |||||||
| Total harmonic distortion | <3% | |||||||
| Max AC charging current | 15A(adjustable) | |||||||
| Display | LCD+LED | |||||||
| Transfer time | <4ms | |||||||
| Thermal methods | Forced air cooling | |||||||
| Enviroment | Noise | <55dB | ||||||
| Temprature | 0℃~40℃ | |||||||
| Humidity | 10%~90%(No condense) | |||||||
| Efficiency | >85% | |||||||
| Protection | Overload | Overload exceeds 110%, automatic shut down in 30 secs; overload exceeds 120%, automatic shut down in 2 secs; under mains supply mode, it will not shut down, just keep sound | ||||||
| Short circuit | Output short circuit, automatic shut down after keeping sound 20 secs | |||||||
| Battery | High or low voltage protection | |||||||
| Reverse polarity | Reverse polarity protection(Optional) | |||||||
| Alarm | A | Without alarm if work normally under mains supply mode, when mains supply cut off, turn into battery mode, keeping sound 4 tims every 30 secs | ||||||
| B | Keeping sound every second for second time alarm of battery low voltage; send out sharp sound under machine fault | |||||||
| C | Keeping sound every second under overload | |||||||
| Note | All specifications are subject to change without prior notice |
|||||||

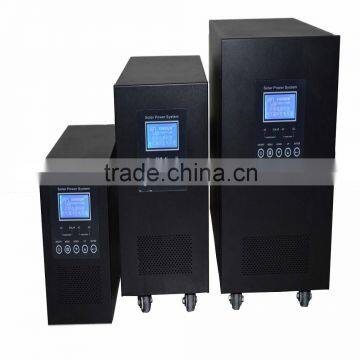

10000 watt pure sine wave ac inverter horizontal vertical type for 300W 500W
10000 watt pure sine wave ac inverter inner picture
10000 watt pure sine wave ac inverter color to choose.
package
1. We have the carton box and wood package, it depend on the reated power of the inverter
Shipping
1. Fedex/ DHL/ TNT/ UPS for samples, door-to-door.
2. By air or by sea for batch goods, for CFL, Air port/ Port receiving.
3. Customers specifying freight forwarders or negotiable shipping methords.
4. Delivery time: 7 days for samples; 10 to 25 days for batch goods.
Payment Terms
1. Payment: T/T, Western Union, Paypal, Moneygram. 30% deposits, 70% balance before delivery time.
2. MOQ: 1 PCS
3. Warranty: 1 years for inverter, controller, battery. 10 years for solar panel.
