Full Auto Hydraulic Shearing Machine
Character
All welded structure, vibrating treatment of ageing for removal of internal stress, with good rigidity stability
Integrated hydraulic transmission system, with good reliability
Triple support rolling guide rail to eliminate gaps of support and enhance shearing quality
Back gauge use intelligent digital display device, shear quantity can be automatic counted, distance of back gauge can be set according to requirements of customers
Clearance between shearing blades adjusted by hand wheel to be quick, accurate and convenient
Rectangular blades with four cutting edges to prolong working life, adjustable shearing angle to reduce deformation of the sheet
Upper blade holder has inward tilting structure to facilitate material feed in and also enhance accuracy of the work piece
Function of shearing in sections, function of lamplight illume device
Optional rear material holding device
Main components
-- E10 Number display system-ASTUN
--Integrated hydraulic system-OMEGA
--Gear pump-SHANGHAI
--SIEMENS main motor
--VALQUA seals
-- SIEMENS main electric parts
Accessory
--Front extensive arm, 2 pieces
--Anchor bolt, 4 pieces
--Nut, some pieces
--Washer, some pieces
--Oil gun, 1 piece
--Foot pedal
Main Technical Data
Specification |
Shearing Angler (°) |
Number of stroke (min-1) |
Overall Detentions mm(L×W×H) |
Backguage Rang mm |
Motor Power KW |
QC12Y-4×3200 |
1°30 |
≥18 |
3720×1800×1620 |
600 |
5.5 |
QC12Y-4×4000 |
1°30 |
≥15 |
4800×2000×1700 |
600 |
5.5 |
QC12Y-6×2500 |
1°30 |
≥18 |
3150×1500×1655 |
600 |
7.5 |
QC12Y-6×3200 |
1°30 |
≥18 |
3850×1500×1655 |
600 |
7.5 |
QC12Y-6×4000 |
1°30 |
≥15 |
4800×1700×1855 |
600 |
7.5 |
QC12Y-6×5000 |
1°30 |
≥10 |
5770×2380×2250 |
600 |
11 |
QC12Y-6×6000 |
1°30 |
≥7 |
6810×2530×2250 |
600 |
11 |

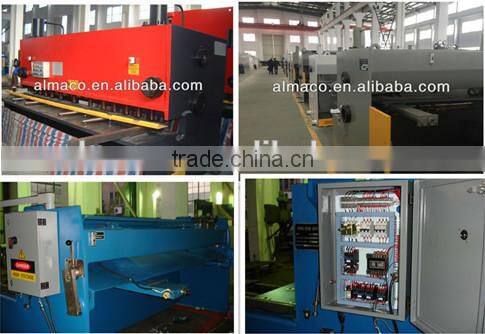

production show:
The machines are packed with wooden case or depend on your requires.
Regarding to the shipping, the machine will be deliveried to your destination ports or place you assign
1.OEM
2.Spare parts
3.Warranty for one year
4.Tech support is available for 24 hours
5.Fast delivery
Found in 1984 Our Almaco Machine Tool Co., Ltd as the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation. specializes in import& export of brand-new industrial machinery & tools. Our mechanical products cover more than 80 kinds including lathe, milling machine, grinding machine, power press, hydraulic guillotine, hydraulicpress brake, CNC & automotive machines and so on, which have been exported to 50or more countries & areas.
Almaco Machine Tool Co., Ltd is proud to be the professional, high reputation company with high-qualified & professional staff, competive prices and quick & thoughtful after-sale service to cooperate with you.
CERTIFICATION:
customer visiting:
Our products are exported to more than 50 countries, more than 700 customers
1. Accept L/C, T/T ,D/A,D/Ptype of payments
2. Regarding to the technical questions, pls contact our R&D
3. Any question, call us or send email, we will try our best to satisfy you
